XPD2m Presentation

Digital Wireless

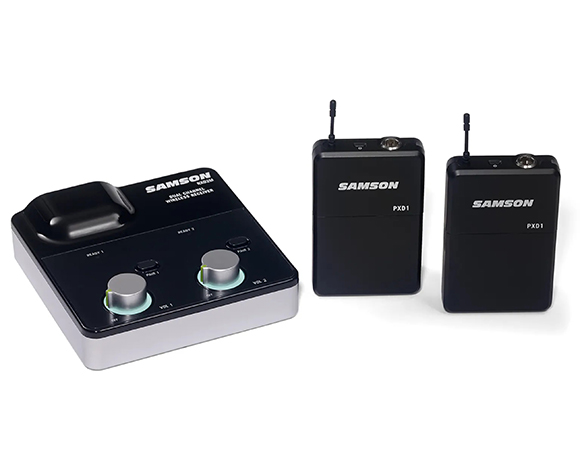

The XPD2m Digital Wireless System delivers high-quality audio using digital transmission at 2.4 GHz, with results that sound as good as a traditional wired microphone. Set up is extremely easy and you can start performing with one-touch pairing that syncs the transmitter and receiver channel. Simply connect the RXD2M to your mixer or sound system, set the levels and enjoy wireless audio that sounds as good as a wired microphone.

Lavalier and Headset

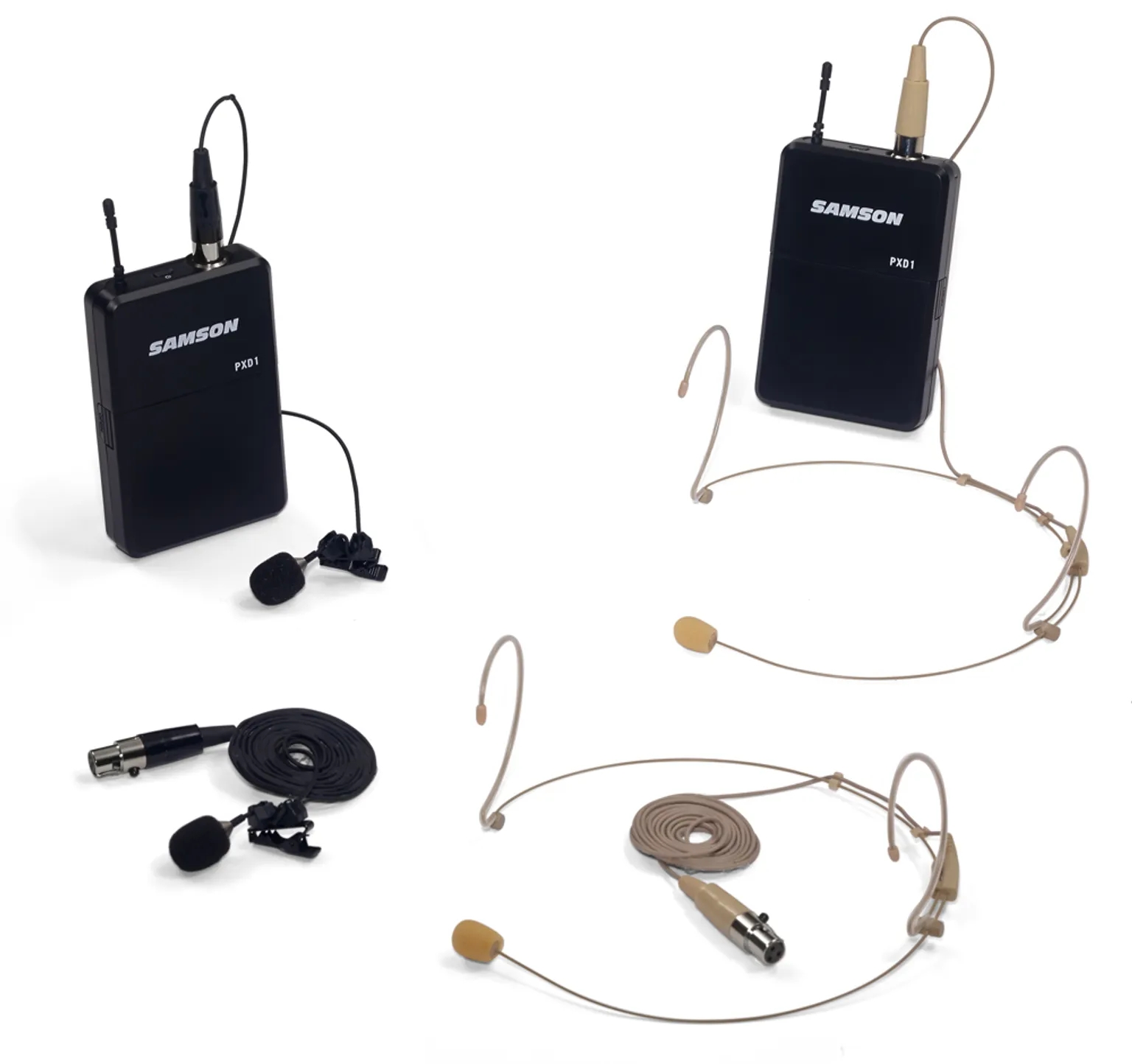

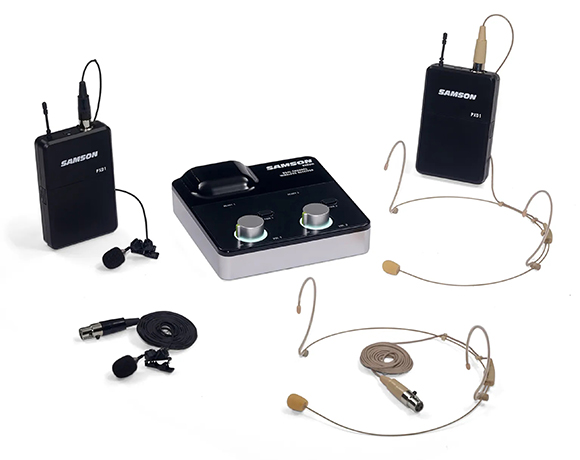

The PXD1 beltpack transmitters allow for a completely cordless performance and capture vocals with absolute clarity. Offering 20 hours of continuous use from two AA batteries, and 100’ of wireless operation, the PXD1 delivers reliable performance in any application. The XPD2m Presentation system comes with two LM7 unidirectional lavalier microphones and two DE5 low-profile headset microphones. This gives you the choice to use the microphone that best suits your situation. Each microphone features locking connectors for a secure and stable connection and is designed to capture every detail of your performance with stunning, professional-quality audio.

Easy Integration

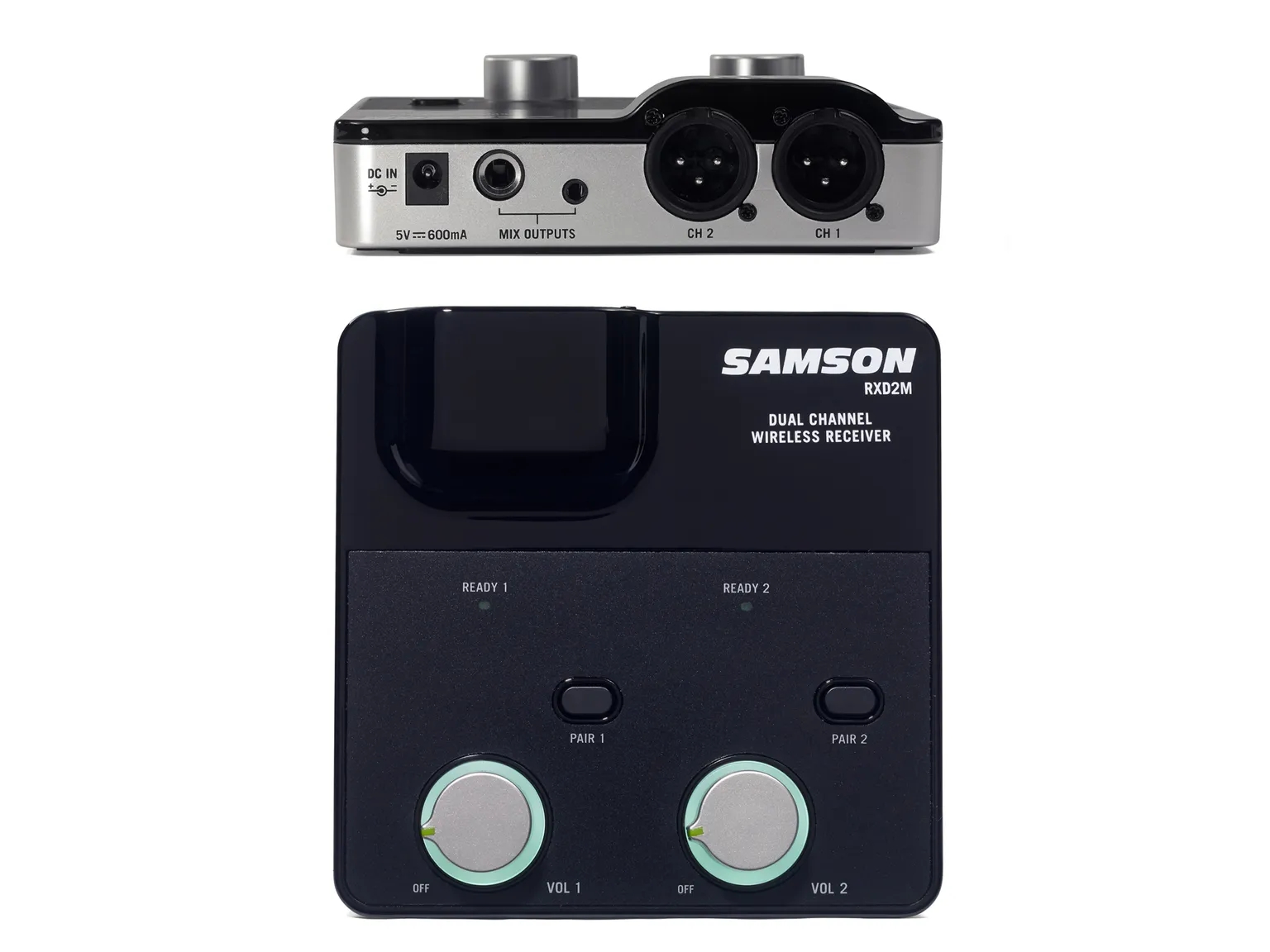

The XPD2m two-channel desktop receiver easily connects to any audio system. Two balanced XLR outputs allow each wireless channel to be routed independently, or send a mix of both channels via the 1/4" and 1/8" mix outputs.

XPD2m Handheld System

• High performance dual channel digital wireless system

• Operates on 2.4GHz License-free frequency

• 100’ (30m) line-of-sight operating range

PXD1 Beltpack Transmitters

• Mini XLR connector

• Offers up to 20 hours of battery life using two AA batteries

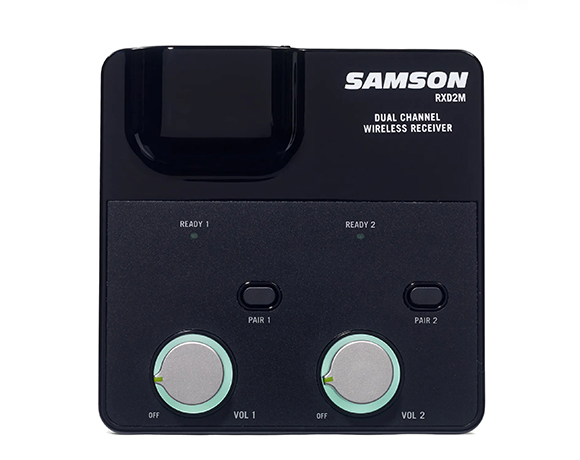

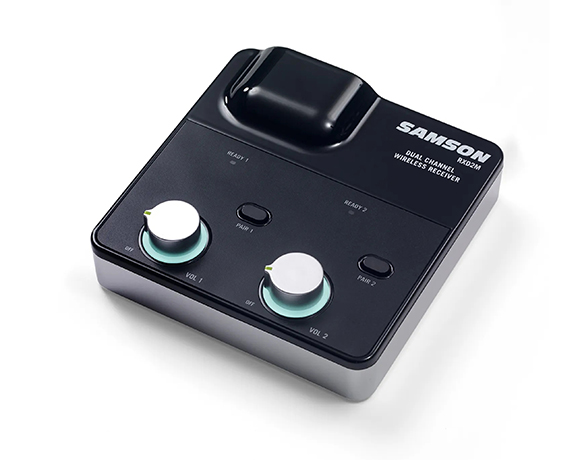

RXD2M Tabletop Receiver

• Dual balanced XLR outputs for routing signals to two separate mixer channels

• 1/4" and 1/8" unbalanced mix outputs combine signals to one output channel

• Simple one-touch pairing button

• Separate Volume controls for each channel

System

Operating Range100’ (30m) line of sight

Audio Frequency Response 24Hz - 18kHz (+0/-3dB)

T.H.D.+N (Overall) <0.1%, +4dBu, 22kHz BW

Dynamic Range XLR 81.9 dB re - 1.1 dBu

Dynamic Range Unbalanced 81.3 dB re +5.3 dBu

Modulation Type GFSK

Oscillation TypePLL

Signal to Noise90dB,re +4dBu, 22kHz BW

Operating Frequency 2.404~2.476+GHz

Frequency Stability+/- 0.005%

Max channels per system 2

Max simultaneous systems1

PXD1 Beltpack Transmitter

Input ConnectorMini-XLR (P3)

RF Power<10 mW EIRP

Power RequirementsTwo AA (LR6) alkaline batteries

Battery Life20 hours

Audio Sample Rate32 kHz

Dimensions3.75” x 2.44” x 0.75” / 96mm x 62mm x 18.5mm

Weight0.2lb / 93g

RXD1M Tabletop Receiver

Audio Output Level 1/8” (3.5mm) & 1/4” (6.3mm) jack (unbalanced)+4 dBu, 1 kHz, <0.6% THD+N

Audio Output Level XLR jack (balanced)+4 dBu, 1 kHz, <0.6% THD+N

Audio Output Impedance 1/8” (3.5mm) & 1/4” (6.3mm) jack (unbalanced) 110 ohms @ 1kHz

Audio Output Impedance XLR output jack (balanced)2.4Kohms @ 1kHz

RF Sensitivity-78dBm/20dB SINAD

Image Rejection>50dB

Operating Voltage5VDC 500mA

Dimensions4.3” x 3.7” x 1.5” / 110mm x 95mm x 39mm

Weight 0.33lb / 152g
