XPDm Headset

Digital Wireless Technology

The XPDm Headset system delivers high-quality audio using 2.4 GHz digital transmission. This wireless technology allows the microphone transmitter to send an uncompressed signal to the receiver, providing a higher signal-to-noise ratio than traditional wireless systems.

Ready Set Headset

The PXD1 beltpack transmitter provides 100' of wireless range and up to 20 hours of use on two AA batteries. The DE5 Omnidirectional Headset Microphone is a unique binaural headset designed to keep the microphone in place while the user is moving. The omnidirectional pickup pattern captures vocals for clear and articulate sound regardless of the capsule's position relative to the sound source. A clothing cable clip is included for discreet and unobtrusive cable placement, and a windscreen is included to reduce wind noise and p-pops.

Simple Addition

Easily integrate the XPDm Headset System into your audio setup with a lightweight and portable RXD1M receiver that has XLR, 1/4” and 1/8” outputs. Simply pair the handheld PXD1 transmitter to the receiver via the pair button for straightforward synching.

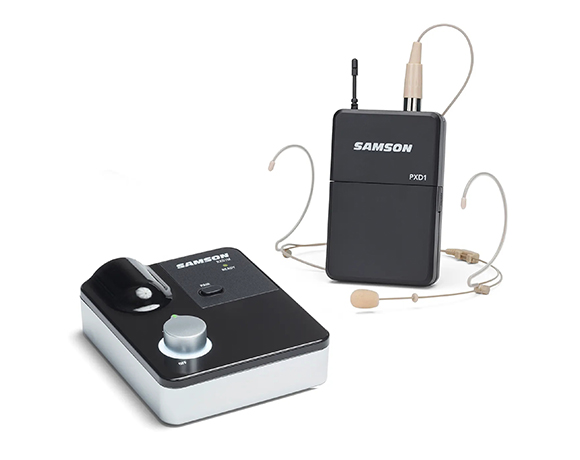

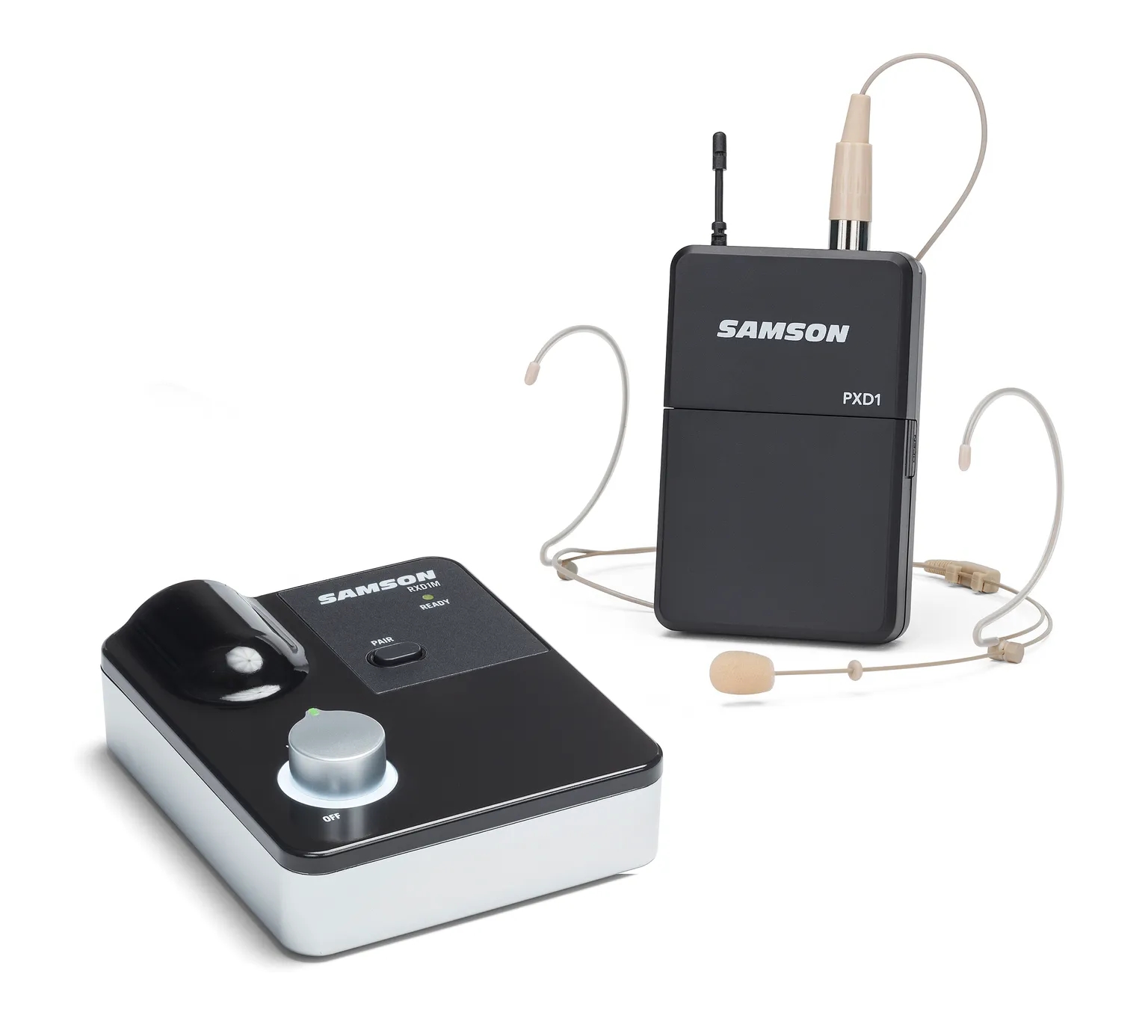

XPDm Headset Digital Wireless System

• High performance digital wireless system

• Operates on 2.4GHz License-free frequency

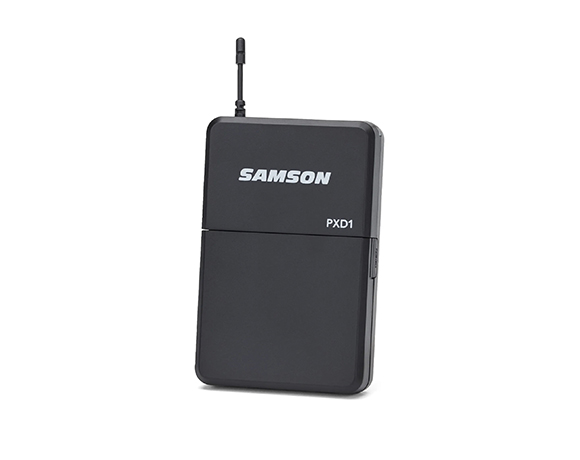

PXD1 Beltpack Transmitter

• Includes DE5 Omnidirectional Headset Microphone

• Offers up to 20 hours of battery life using two AA batteries

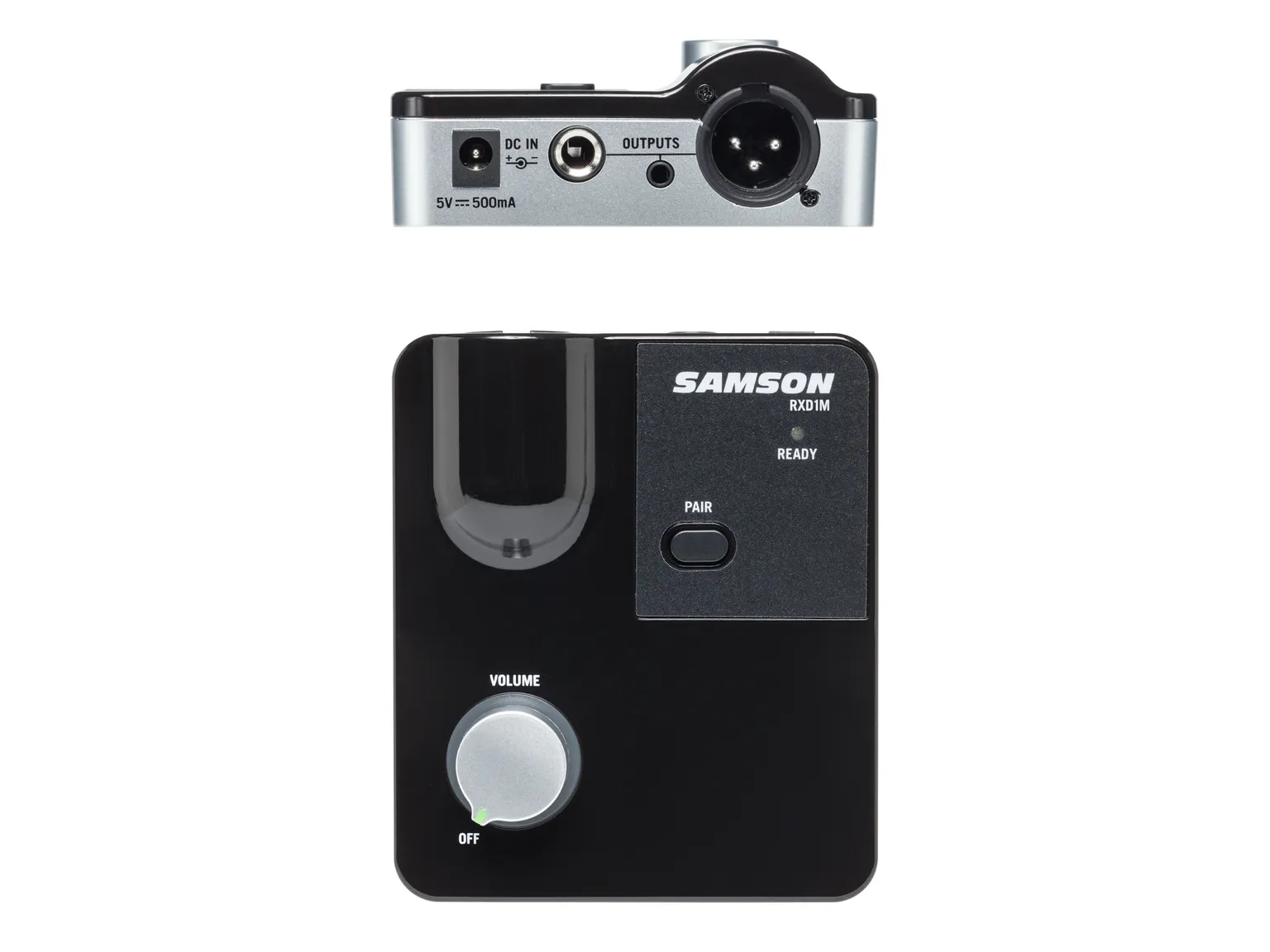

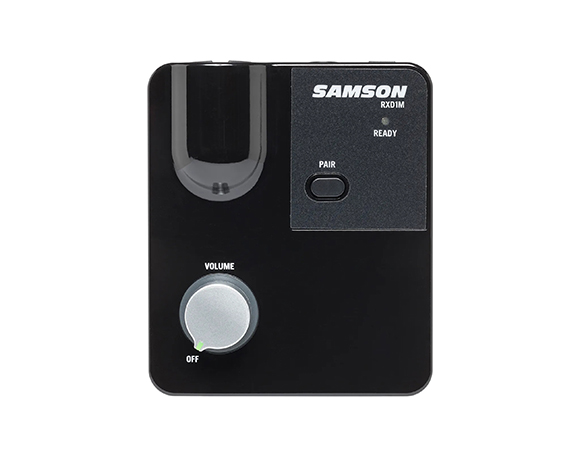

RXD1M Tabletop Receiver

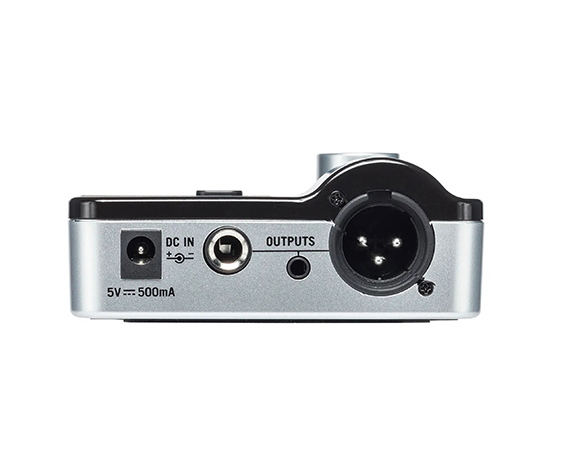

• Balanced XLR, unbalanced 1/4” and unbalanced 1/8” outputs

• One-touch pairing button

• Rotary volume knob with integral power switch

System

Simultaneous Systems2

Working Range100’ line of sight

Working Frequency2.404~2.476 GHz

Modulation typeGFSK

Audio Frequency Response20 Hz – 17 kHz (-1 dB)

T.H.D<0.1% (at 1 kHz, -10 dBu)

Signal to Noise>85 dB

PXD1 Transmitter

MicrophoneSamson DE5 micro headset mic

Input ConnectorMini-XLR (P3)

RF Power<10 mW EIRP

Power RequirementsTwo AA (LR6) alkaline batteries

Battery Life20 hours

Audio Sample Rate32 kHz

Dimensions 0.75” x 2.44” x 0.75” / 96mm x 62mm x 18.5mm

Weight0.2lb / 93g

RXD1M Tabletop Receiver

Audio Output Level 1/8” (3.5mm) & 1/4” (6.3mm) jack (unbalanced)+4 dBu, 1 kHz, <0.6% THD+N

Audio Output Level XLR jack (balanced)+4 dBu, 1 kHz, <0.6% THD+N

Audio Output Impedance 1/8” (3.5mm) & 1/4” (6.3mm) jack (unbalanced) 110 ohms @ 1kHz

Audio Output Impedance XLR output jack (balanced)2.4Kohms @ 1kHz

RF Sensitivity-78dBm/20dB SINAD

Image Rejection>50dB

Operating Voltage5VDC 500mA

Dimensions4.3” x 3.7” x 1.5” / 110mm x 95mm x 39mm

Weight 0.33lb / 152g
