XPD2 Lavalier

Easy Addition

The XPD2 Lavalier system combines incredible audio quality, ease of use, and micro-receiver technology to make integrating wireless microphones into your audio production extremely easy and affordable.

High-Quality Digital Sound

XPD2 Wireless delivers its high-quality audio through digital transmission. This type of wireless technology allows the PXD1 handheld transmitter to send an uncompressed signal to the receiver. The result is a higher signal-to-noise ratio compared to a traditional wireless system, and performance that sounds as good as a wired microphone.

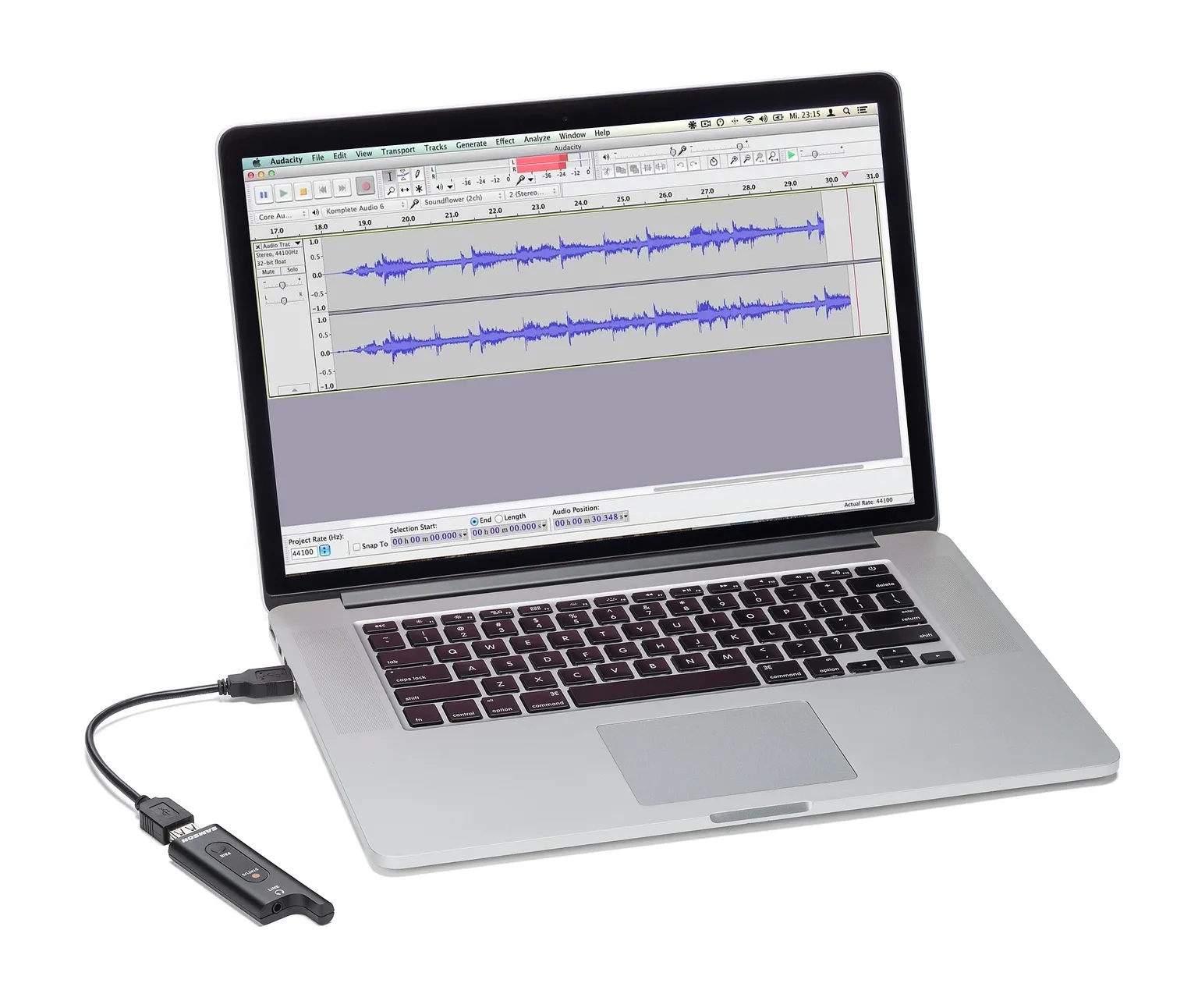

The RXD2 USB stick receiver connects directly to PC or Mac computers, or to any Samson Expedition Series Portable PA system that has a USB wireless port. An added feature from the previous generation system, the 1/8" (3.5mm) output allows for headphone monitoring, or the XPD2 Lavalier can be used with any device that has an analog line input, including smartphones and other mobile devices.

To connect to an iOS device, Apple's Lightning to USB Camera Adapter is required. To connect to an Android device, a host OTG adapter is required.

More Ways to Connect

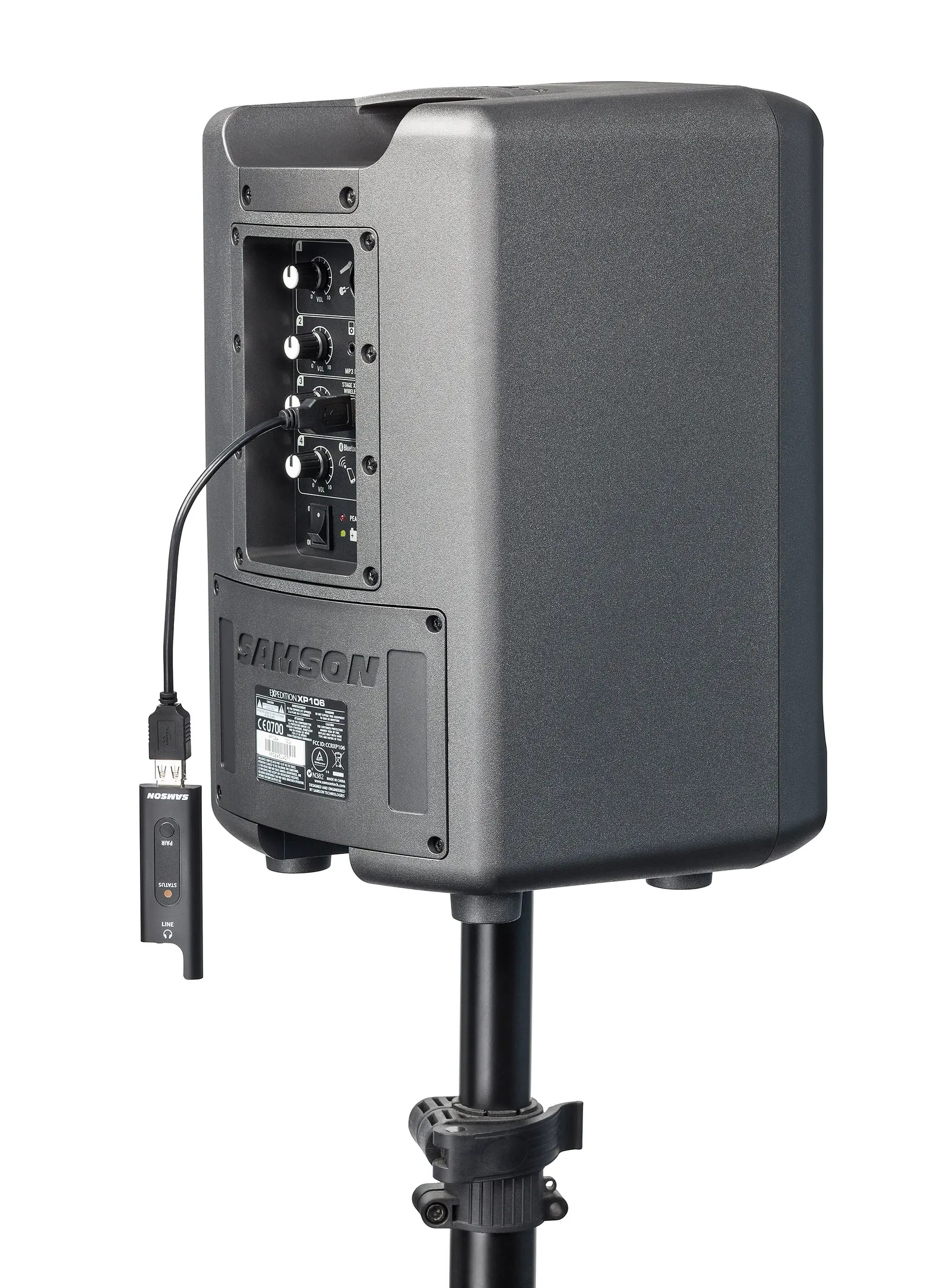

A streamlined setup is essential to empower any active performer or presenter. The RXD2 USB key receiver easily connects to any Samson Expedition Series portable PA system or Samson mixer with a USB wireless port. The RXD2 has a 1/8" (3.5mm) analog output that can be used with headphones or to connect to other devices with an analog input. A USB-A to USB-C adapter is also included for use with other compatible devices.

• 2.4GHz USB digital wireless system

• Ideal for broadcasting, live streaming, presentations and more

• Plug-and-play operation with Mac and Windows

• Works with iPad via Apple's Lightning to USB Camera Adapter

• Works with Android devices via a host OTG adapter

• RXD2 USB stick receiver

• Receiver features a 1/8" (3.5mm) headphone/monitor output

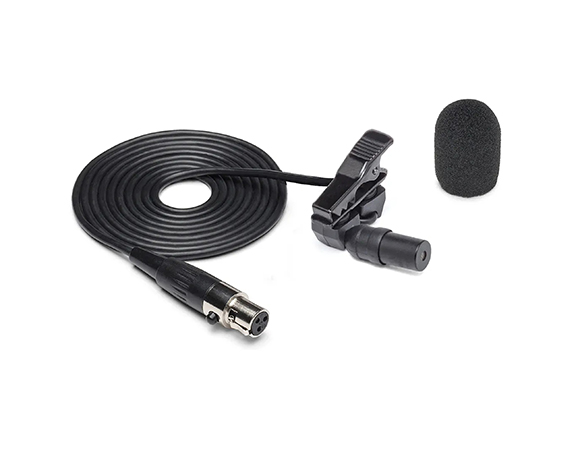

• PXD1 beltpack transmitter with Samson LM8 Lavalier Microphone

• Transmitter offers 20 hours of battery life using two AA batteries (not included)

• 100' operating range (line of sight, environment dependent)

• 1-touch pairing, adjustable Volume controls on transmitter

• Compatible with Samson Expedition Series Portable PAs that feature USB Wireless ports

• Includes lapel clip and USB extension cable

System

Simultaneous Systems2

Working Range100’ line of sight

Working Frequency2.404~2.476 GHz

Modulation typeGFSK

Audio Frequency Response20 Hz – 17 kHz (-1 dB)

T.H.D<0.1% (at 1 kHz, -10 dBu)

Signal to Noise>85 dB

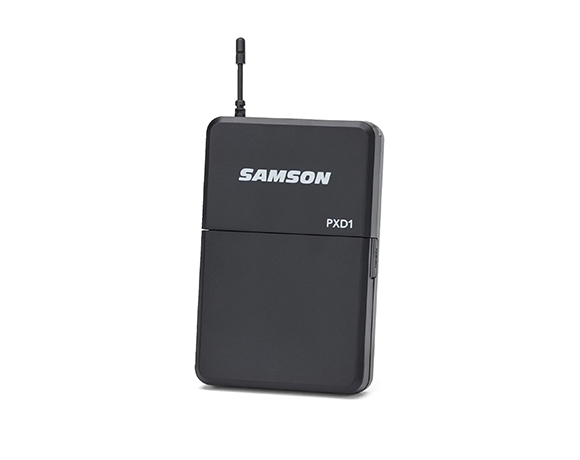

PXD1 Transmitter

MicrophoneSamson LM8 lavalier mic

Input ConnectorMini-XLR (P3)

RF Power<10 mW EIRP

Power RequirementsTwo AA (LR6) alkaline batteries

Battery Life20 hours

Audio Sample Rate32 kHz

Dimensions .75” x 2.44” x 0.75” / 96mm x 62mm x 18.5mm

Weight0.2lb / 93g

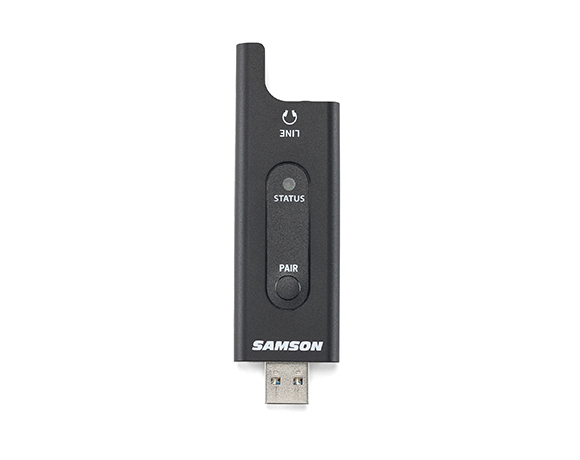

RXD2 Receiver

Max. Analog Audio Output Level9 dBu

Headphone Output22 mW into 16 Ω or 32 Ω

Operating Voltage5V DC

Dimensions3.5” x 0.9” x .31” / 89mm x 23mm x 8mm

Weight0.35oz / 10g
