Concert 288 All-In-One

Take The Worry Out Of Wireless

The two-channel, frequency-agile Concert 288 All-In-One allows up to 10 systems per band (20 performers) to operate simultaneously (depending on region). The Concert 288 All-In-One gives both performers an impressive 300' range of wireless operation between the transmitters and receiver, making the system ideal for large stages and crowd participation. To ensure interference-free performance, the Concert 288 All-In-One features a true diversity design. If a drop out does occur, the receiver's tone key triggers an Auto Mute function to eliminate any background noise until the signal is restored.

Perform in Pairs

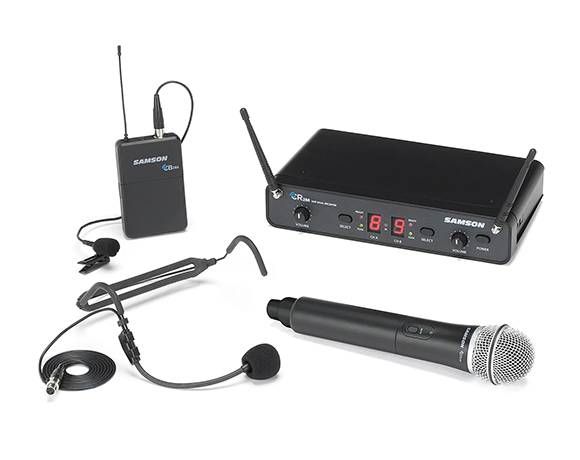

The Concert 288 All-In-One includes a CH288 handheld transmitter with a Q6 dynamic microphone capsule and a CB288 beltpack transmitter. For use with the CB288, the system also includes an LM5 lavalier microphone and an HS5 headset microphone (both with locking connectors). These microphone options provide maximum versatility for any dual-user application, especially duo performances, as well as audience participation and interview situations. The transmitters, which can operate for up to eight hours on two AA batteries, have been meticulously engineered to provide the ultimate in sonic performance.

Dual-Channel Receiver

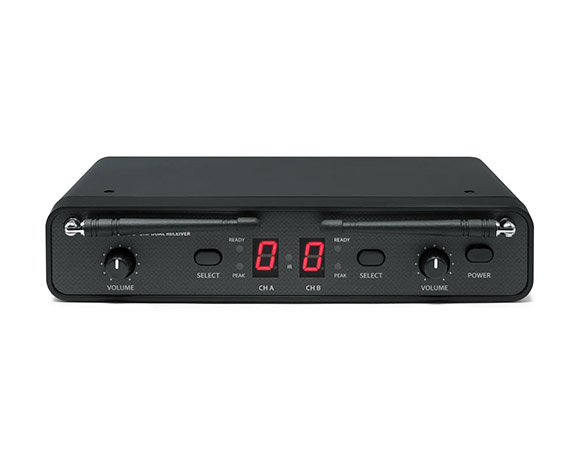

With a user-friendly front panel, the CR288 wireless receiver makes system setup quick and easy. To help you find your optimal channel, the CR288 has two select buttons that automatically synchronize the receiver and transmitter channels via an infrared signal. The front panel also features a dual 7-segment LED to indicate operating channels, two volume controls, two tuned antennas, and Ready and Peak indicators for optimal functionality and monitoring. The rear of the receiver features two separate balanced XLR outputs for routing signals to two separate mixer channels, as well as a 1/4" unbalanced mix output that combines both signals into a single channel for direct connection to a PA speaker.

System

• Dual-channel, high-performance UHF wireless system

• 1/4" audio cable, AC adapter and rackmount kit included

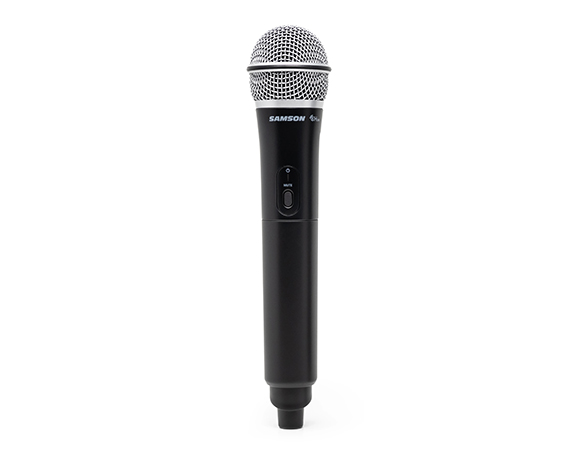

CH288 Handheld Transmitter

• Two Q6 Dynamic Microphone capsules

• Each offers up to eight hours of battery life using two AA batteries

• 300' operating range

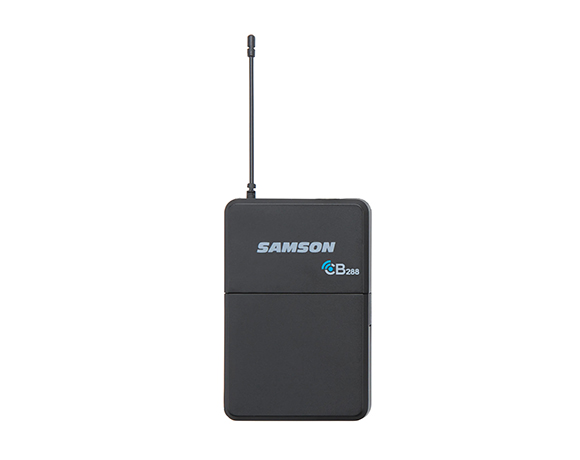

CB288 Beltpack Transmitter

• LM5 Lavalier Microphone with locking connector

• HS5 Headset Microphone with locking connector

• Offers up to eight hours of battery life using two AA batteries

• 300' operating range

CR288 Wireless Receiver

• Multiple frequency options for interference-free performance in any environment

• Up to 12 systems can be operated simultaneously (region dependent)

• Separate Volume controls for each wireless signal

• Dual balanced XLR outputs for routing signals to two separate mixer channels

• 1/4" unbalanced mix output to combine signals to one output channel

System

Working Range300' (100m) line of sight

Audio Frequency Response50 Hz - 15 kHz

T.H.D. (Overall)<1% (@AF 1 kHz, RF 46 dBu)

Dynamic Range>100 dB A-weighted

Signal to Noise>85 dB

Tone Key Frequency32.768 kHz

CH288 Handheld Transmitter

Microphone ElementQ6 Dynamic

Input Gain Range28 dB

RF Power10 mW EIRP

Power RequirementsTwo AA (LR6) alkaline batteries

Battery Life8 hours

Dimensions (HxØ)10.23" x ø2.1" / 260mm x ø54mm

Weight0.48lb / 218g

CB288 Belt pack Transmitter

Input ConnectorMini-XLR (P3)

Input Impedance1MΩ

Input Gain Range38 dB

RF Power10 mW EIRP

Power RequirementsTwo AA (LR6) alkaline batteries

Battery Life8 hours

Dimensions3.75" x 2.44" x 0.75" / 96mm x 62mm x 18.5mm

Weight0.2lb / 93g

CR288 Receiver

Audio Output Level - Mix Unbalanced+14 dBu

Audio Output Level - Balanced+14 dBu

Audio Output Impedance - Unbalanced1k Ohms

Audio Output Impedance - Balanced470 Ohms

Sensitivity-100 dBm / 20 dB sinad

Image Rejection>50 dB

Operating Voltage15 VDC 300mA

Dimensions (LxWxH)8.25" x 4.9" x 1.75" / 210mm x 125mm x 44mm

Weight0.99lb / 450g
