CR288 Dual Channel Receiver
-Dual Channel Receiver for Concert 288 Wireless
CR288 Wireless Receiver
Multiple frequency options for interference-free performance in any environment
Up to 12 systems can be operated simultaneously (region dependent)
Separate Volume controls for each wireless signal
Dual balanced XLR outputs for routing signals to two separate mixer channels
1/4¡± unbalanced mix output to combine signals to one output channel
Audio Output Level - Mix Unbalanced£º+14 dBu
Audio Output Level - Balanced£º+14 dBu
Audio Output Impedance - Unbalanced£º1k Ohms
Audio Output Impedance - Balanced£º470 Ohms
Sensitivity£º-100 dBm / 20 dB sinad
Image Rejection£º>50 dB
Operating Voltage£º15 VDC 300mA
Dimensions (LxWxH)£º8.25" x 4.9" x 1.75" / 210mm x 125mm x 44mm
Weight£º0.99lb / 450g
Recommended Use

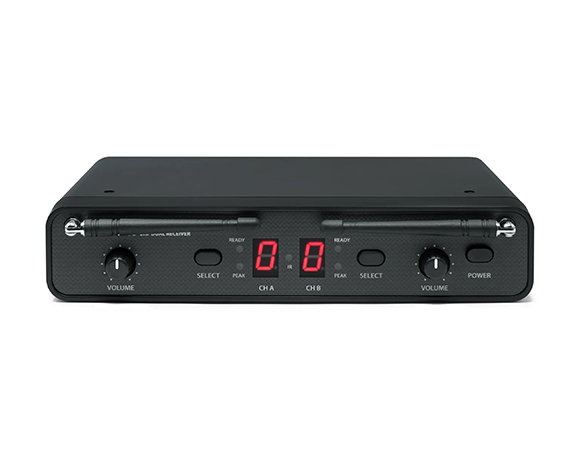

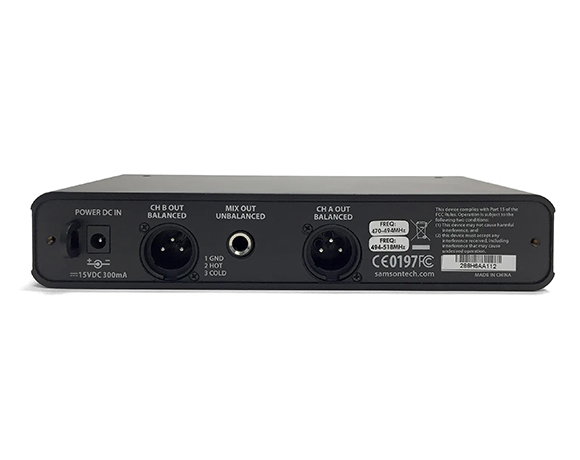

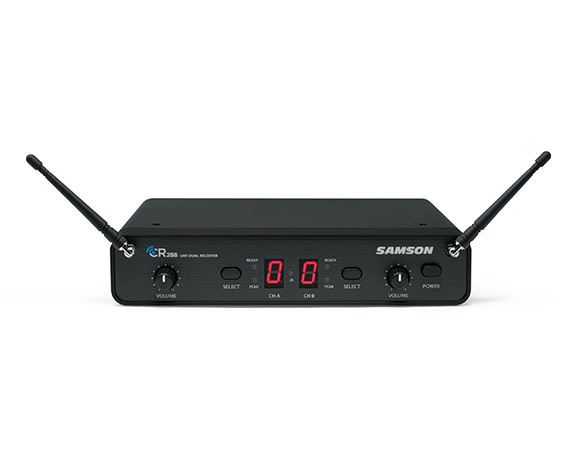

With a user-friendly front panel, the CR288 wireless receiver makes system setup quick and easy. To help you find your optimal channel, the CR288 has two select buttons that automatically sync the receiver and transmitter channels via an infrared signal. The front panel also features a dual 7-segment LED to indicate operating channels, two volume controls, two tuned antennas, and Ready and Peak indicators for optimal functionality and monitoring. The rear of the receiver features two separate balanced XLR outputs for routing signals to two separate mixer channels, as well as a 1/4" unbalanced mix output that combines both signals into a single channel for direct connection to a PA speaker.
