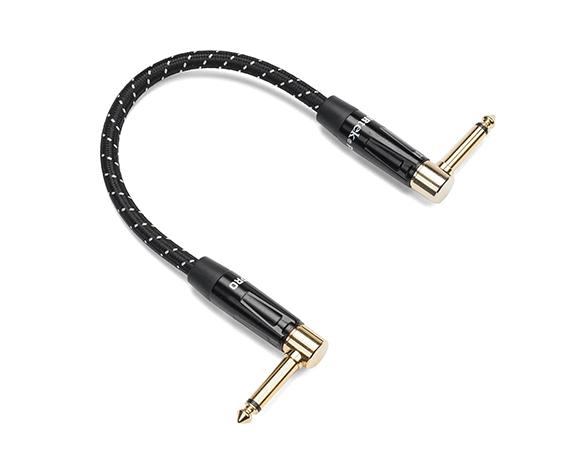

Tourtek Pro TPWAP Woven Fabric Patch Cables

Tourtek Pro TPWAP Woven Fabric Patch Cables are extremely durable patch cables that are perfect for connecting instrument effect pedals. Not only do they look great, they perform exceptionally well on stage or in the studio, and the braided woven jacket provides extra protection against kinks and cuts. Constructed with 99.99% OFC (Oxygen Free Copper), TPWAP provide a completely uncolored, pure tone in the signal chain. 99% braided shielding and carbon impregnated conductive PVC insulation provide extremely low noise and excellent RF/EMI interference rejection. Heavy-duty, black-chrome-plated brass connectors with 24K gold-plated plugs ensure each connection is secure while providing optimal signal transfer.

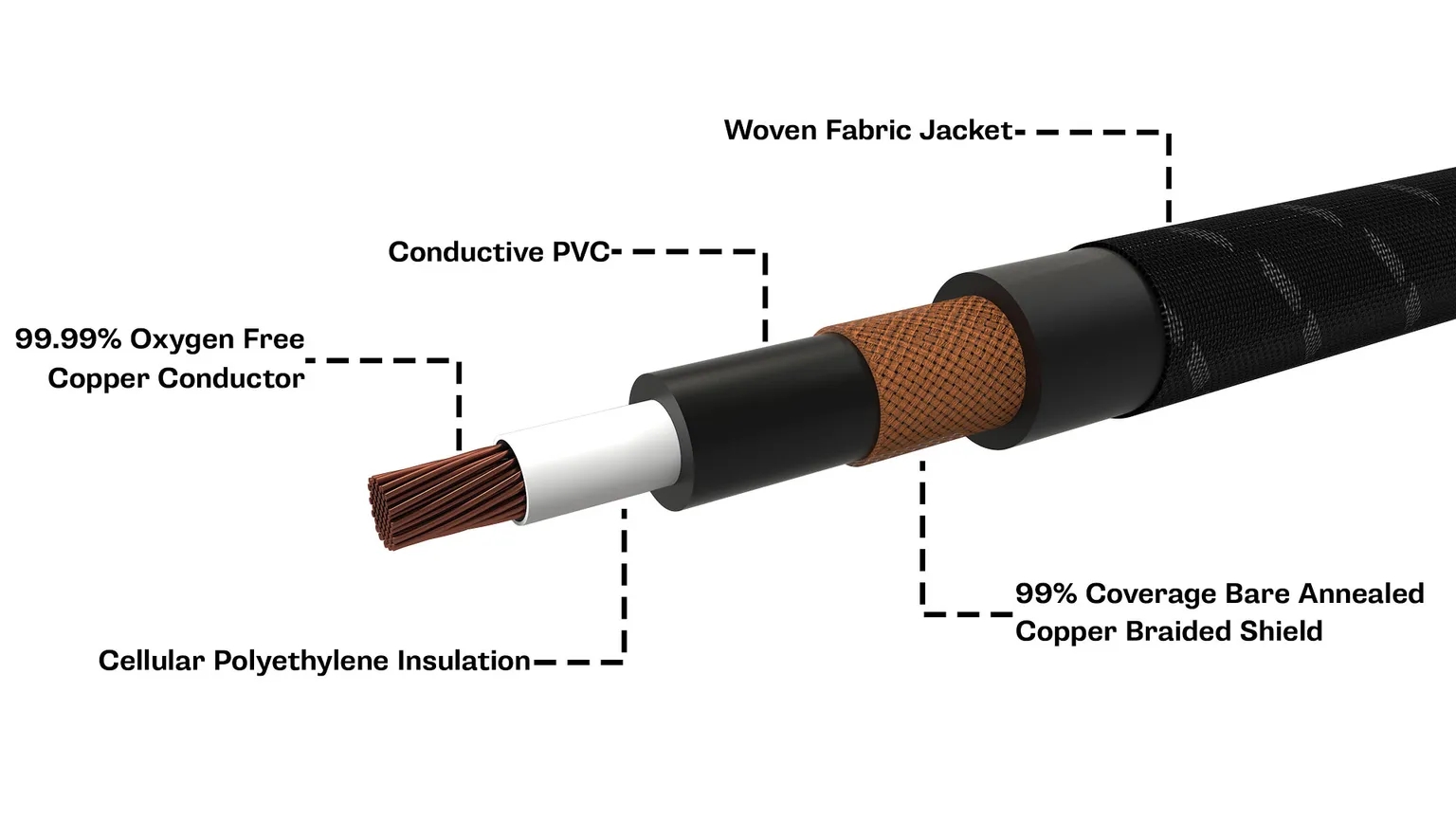

Take a look inside

Tourtek Pro Cables use 99.99% Oxygen Free Copper (OFC) conductors for increased conductivity. OFC wire is manufactured to remove all but a minute amount of oxygen and other impurities making it more resistant to corrosion. This means you'll experience the same high performance from your Tourtek Pro Cables for a long time.

Features

• Braided nylon outer jacket protects cables from kinking or tangling

• Constructed with 99.99% Oxygen Free Copper (OFC) conductors for increased conductivity and resistance to corrosion.

• Right-angle, Gold-plated contacts for clean signal transmission and prevent signal degradation.

• 99% braided shield and carbon-impregnated conductive PVC insulation for low noise and excellent rejection of RF/EMI interference.

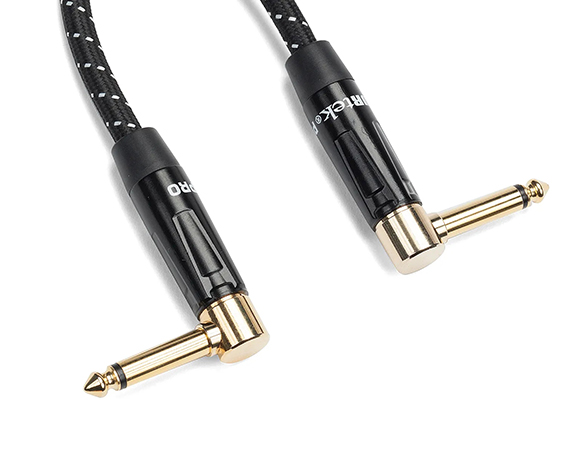

• Heavy-duty black chrome-plated brass connectors with gold-plated plugs for durability and ruggedness in any sound reinforcement application.

• Available in 6", 1' and 3' lengths

Tourtek Pro TPWAP Woven Fabric Patch Cables Specifications

Conductor AWG Size & Stranding20 AWG / 0.10x65

Conductor Capacitance Conductor to Shield28.7pF/ft @1kHz

Conductor Material99.99% Oxygen Free Copper

Insulation MaterialPolyethylene

Insulation Diameter2.8mm ±0.05mm

Braided Shield MaterialBare Annealed Copper

Braided Shield Coverage99%

Jacket MaterialNylon Woven Finish

Jacket Diameter7.0mm ±0.1mm
