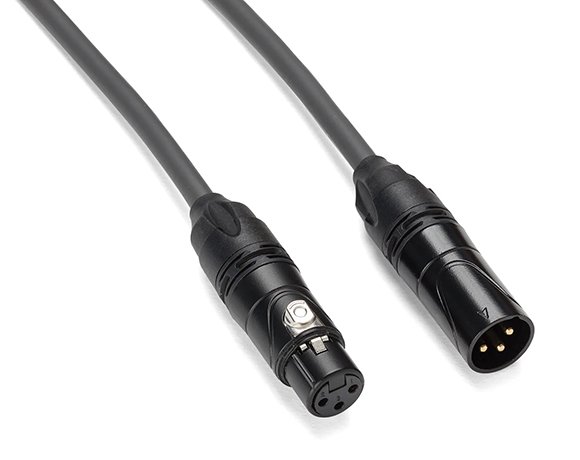

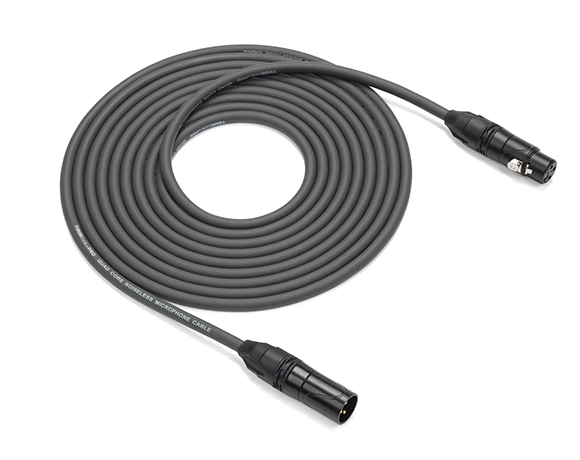

Tourtek Pro TPMQ Quad Core Microphone Cables

Tourtek Pro TPMQ Quad Core Microphone Cables are premium microphone cables with four conductors to provide immunity to electromagnetic interference that can pass through RF shields. Featuring 24AWG oxygen-free copper conductors and 99% braided shield coverage, TPMQ Quad Core Cables provide premium performance and noise rejection. Heavy-duty plugs with 24K gold-plated connectors provide secure, low-loss signal transfer. Durable construction with thick, yet flexible PVC outer jackets makes TPMQ Quad Core microphone cables an excellent choice in the studio or on stage.

Take a look inside

Tourtek Pro Cables use 99.99% Oxygen Free Copper (OFC) conductors for increased conductivity. OFC wire is manufactured to remove all but a minute amount of oxygen and other impurities making it more resistant to corrosion. This means you'll experience the same high performance from your Tourtek Pro Cables for a long time.

Features

• Four conductors provide immunity to electormagnetic interference

• Constructed with 99.99% Oxygen Free Copper (OFC) conductors for increased conductivity and resistance to corrosion

• Gold-plated contacts for clean signal transmission and prevent signal degradation

• 99% braided shield and carbon-impregnated conductive PVC insulation for low noise and excellent rejection of RF/EMI interference

• Heavy-duty connectors with gold-plated plugs for durability and ruggedness in any sound reinforcement application

• Available in 15' and 30' lengths

Conductor AWG Size & Stranding24 AWG / 0.08x40 (x4)

Capacitance Conductor to Shield47.5pF/ft @1kHz

Capacitance Conductor to Conductor29.6pF/ft @1kHz

Conductor Material99.99% Oxygen Free Copper

Insulation MaterialPolyethylene

Insulation Diameter1.35mm ±0.05mm

Braided Shield MaterialBare Annealed Copper

Braided Shield Coverage99%

Jacket MaterialPVC, Matte Finish

Jacket Diameter7.0mm ±0.1mm
