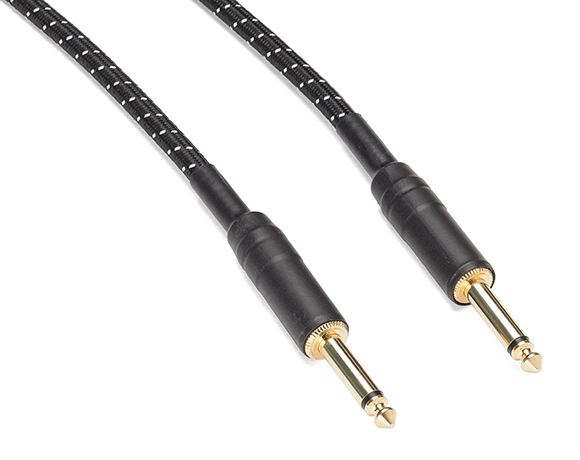

Tourtek Pro TPIW Woven Fabric Instrument Cables

Tourtek Pro TPIW Woven Fabric Instrument Cables offer premium performance and maximum durability for the most demanding live performers. The smooth, braided nylon outer jacket provides extra protection from kinks or cuts and won't snag on stage or in your gig bag. Constructed with 99.99% OFC (Oxygen Free Copper), TPIW's low capacitance cables provide a completely transparent performance with uncolored sound from the audio source. With 99% braided shielding and carbon-impregnated conductive PVC insulation, TPIW cables offer extremely low noise and excellent RF/EMI interference rejection. Heavy-duty black chrome-plated brass connectors with 24K gold-plated plugs provide reliable signal connections.

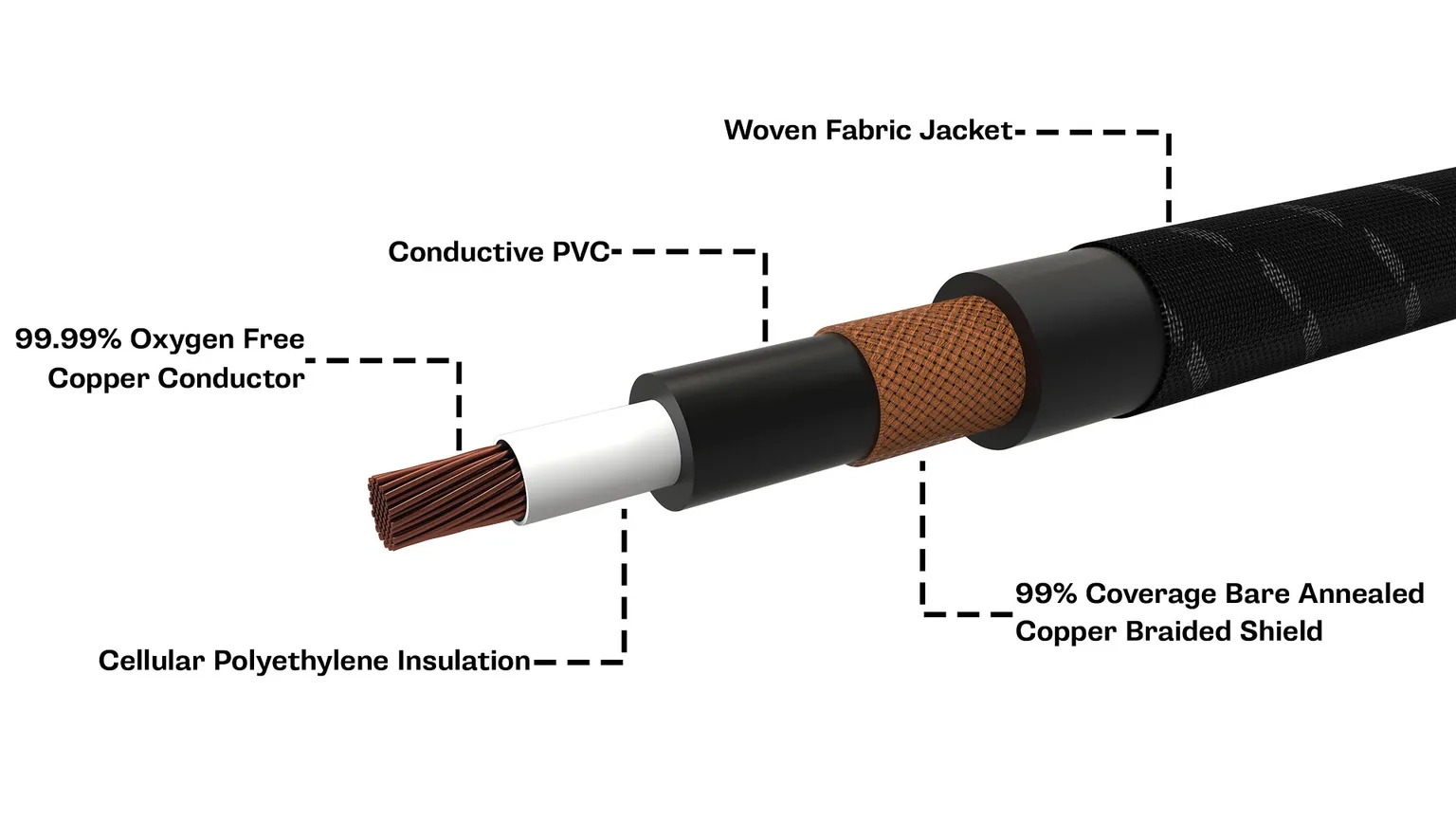

Take a look inside

Tourtek Pro Cables use 99.99% Oxygen Free Copper (OFC) conductors for increased conductivity. OFC wire is manufactured to remove all but a minute amount of oxygen and other impurities making it more resistant to corrosion. This means you'll experience the same high performance from your Tourtek Pro Cables for a long time

Features

• Braided nylon outer jacket protects cables from kinking or tangling

• Constructed with 99.99% Oxygen Free Copper (OFC) conductors for increased conductivity and resistance to corrosion.

• Gold-plated contacts for clean signal transmission and prevent signal degradation.

• 99% braided shield and carbon-impregnated conductive PVC insulation for low noise and excellent rejection of RF/EMI interference.

• Heavy-duty black chrome-plated brass connectors with gold-plated plugs for durability and ruggedness in any sound reinforcement application.

• Available in 10' and 25' lengths

TPIW Instrument Cable Specifications

Conductor AWG Size & Stranding20 AWG / 0.10x65

Conductor Capacitance Conductor to Shield28.5pF/ft @1kHz

Conductor Material99.99% Oxygen Free Copper

Insulation MaterialPolyethylene

Insulation Diameter2.8mm ±0.05mm

Braided Shield MaterialBare Annealed Copper

Braided Shield Coverage99%

Jacket MaterialNylon Woven Finish

Jacket Diameter7.0mm ±0.1mm
