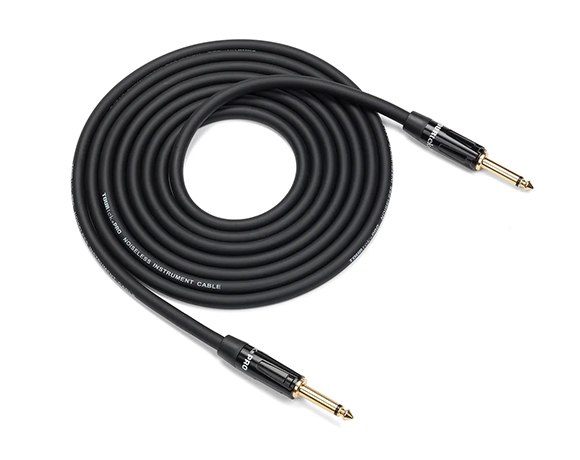

Tourtek Pro TPI Instrument Cables

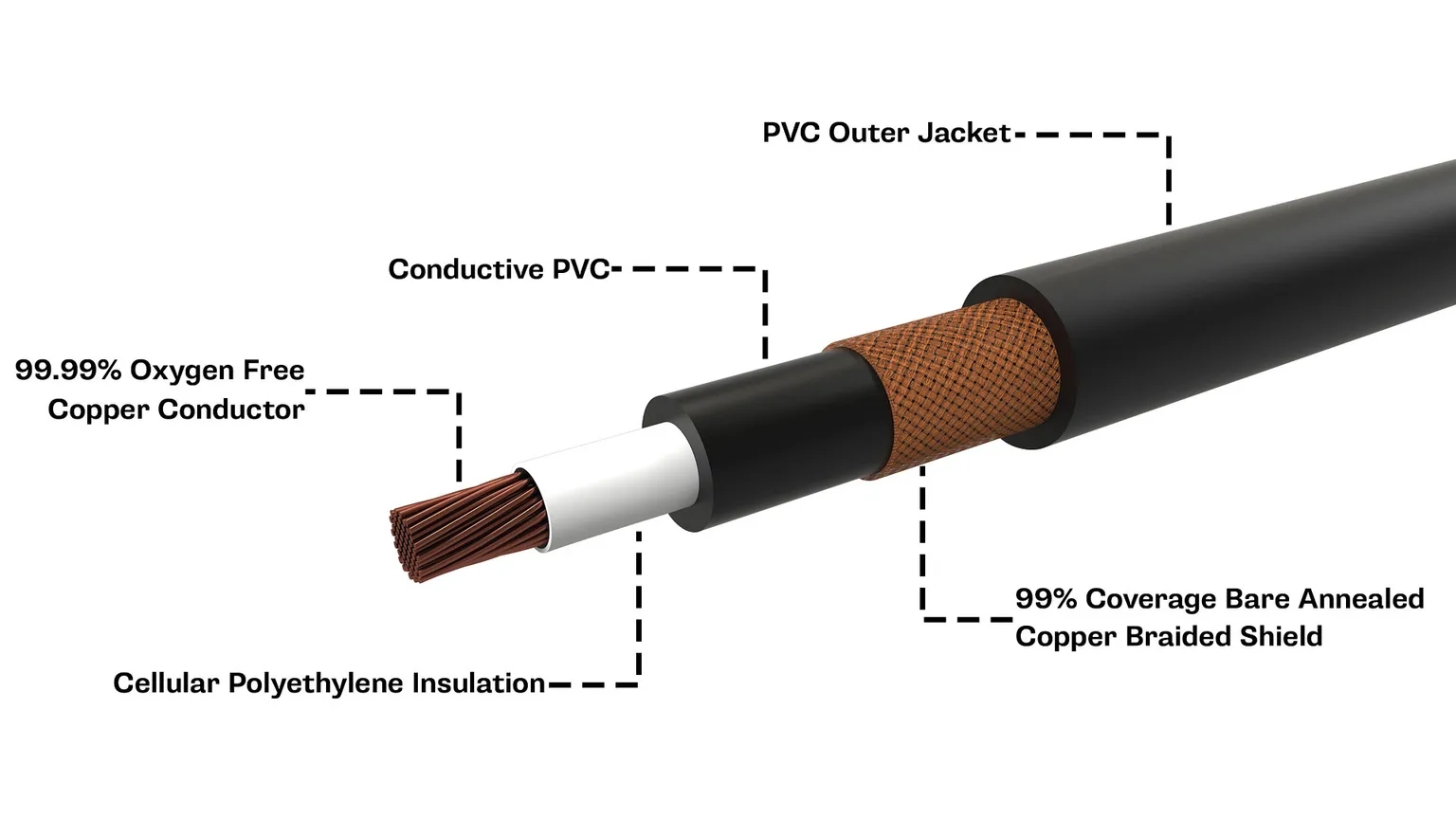

Take a look inside

Tourtek Pro Cables use 99.99% Oxygen Free Copper (OFC) conductors for increased conductivity. OFC wire is manufactured to remove all but a minute amount of oxygen and other impurities making it more resistant to corrosion. This means you'll experience the same high performance from your Tourtek Pro Cables for a long time.

Features

• Constructed with 99.99% Oxygen Free Copper (OFC) conductors for increased conductivity and resistance to corrosion.

• Gold-plated contacts for clean signal transmission and prevent signal degradation.

• 99% braided shield and carbon-impregnated conductive PVC insulation for low noise and excellent rejection of RF/EMI interference.

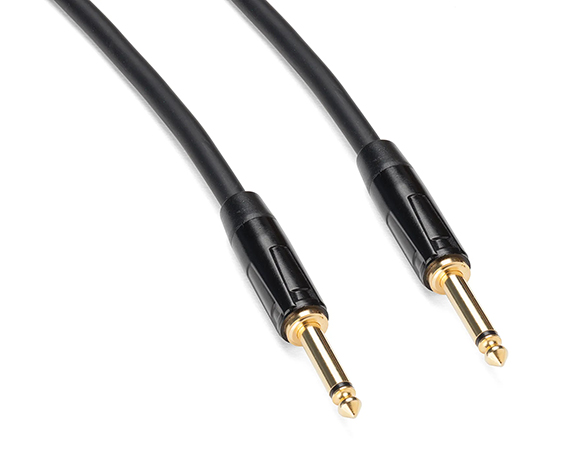

• Heavy-duty black chrome-plated brass connectors with gold-plated plugs for durability and ruggedness in any sound reinforcement application.

• Available in 10', 20', and 25' lengths with 1/4" or 1/4" straight to right angle connectors.

TPI Instrument Cable Specification

sConductor AWG Size & Stranding20 AWG / 0.10x65

Conductor Capacitance Conductor to Shield28.7pF/ft @1kHz

Conductor Material99.99% Oxygen Free Copper

Insulation MaterialPolyethylene

Insulation Diameter2.8mm ±0.05mm

Braided Shield MaterialBare Annealed Copper

Braided Shield Coverage99%

Jacket MaterialPVC, Matte Finish

Jacket Diameter7.5mm ±0.1mm

TPIL Instrument Cable Specificationss

Conductor AWG Size & Stranding20 AWG / 0.10x65

Conductor Capacitance Conductor to Shield28.5pF/ft @1kHz

Conductor Material99.99% Oxygen Free Copper

Insulation MaterialPolyethylene

Insulation Diameter2.8mm ±0.05mm

Braided Shield MaterialBare Annealed Copper

Braided Shield Coverage99%

Jacket MaterialPVC, Matte Finish

Jacket Diameter7.5mm ±0.1mm
