MediaTrack
-4-Channel Rackmount Mixer and USB Interface
It¡¯s a mixer

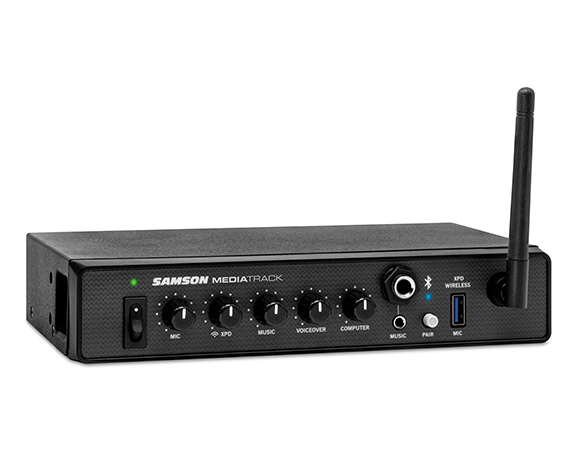

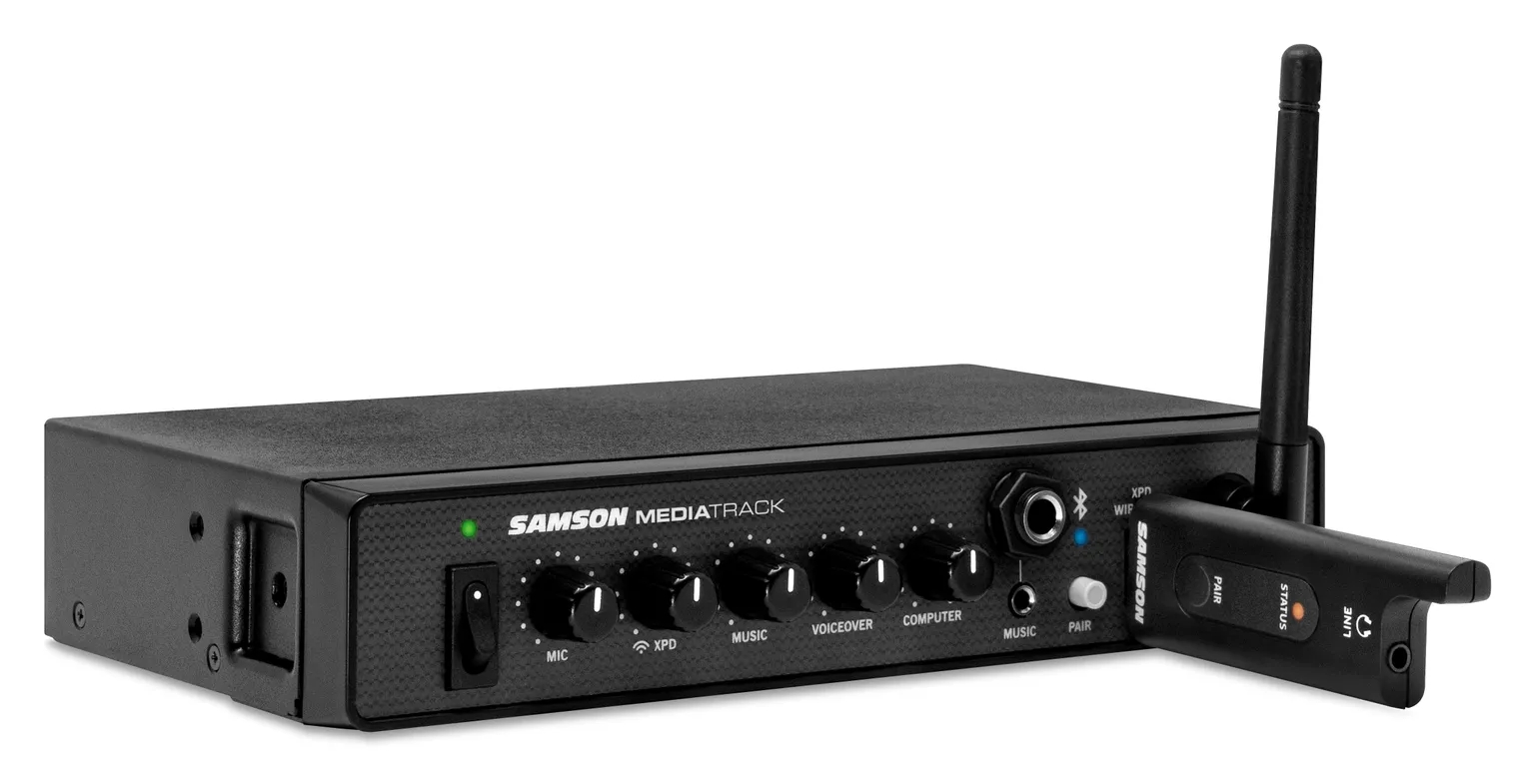

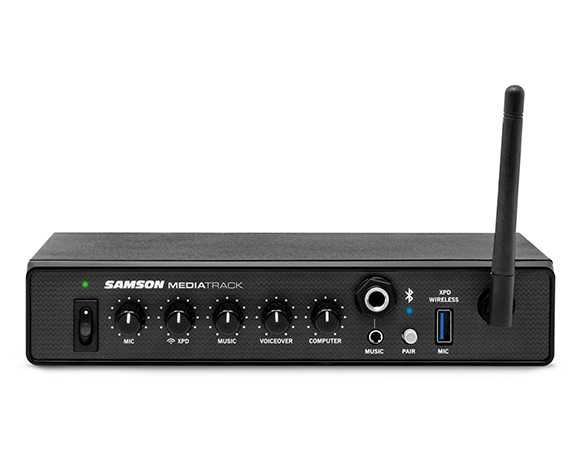

The compact MediaTrack takes up just half of a 1U rackspace and can be installed using the included rackmount kit. It can be mounted adjacent to most Samson series wireless half-rack receivers. MediaTrack offers a range of connections for both wired and wireless audio sources. Connect a wired microphone to the XLR-1/4" combo jack, or go hands-free by connecting a Samson XPD digital wireless system (sold separately) to the front-panel USB port. Now you can confidently move about your environment with exceptional audio. The music channel brings in audio from rear-panel stereo RCA inputs, as well as front-panel stereo 1/4" and 1/8" inputs. Finally, you can add streamed Bluetooth audio sources such as smartphones and tablets to your mix.
Perfect for productivity
Designed with today's connected workspaces and content creators in mind, every feature from the available inputs to the plug-and-play operation makes MediaTrack the audio solution you've been looking for. It's extremely easy to get up and running - plug in the USB cable, connect your microphone, adjust your levels, and you're ready to stream. The built-in Voiceover Priority Ducker lowers the level of any background music so your voice stays clear and focused and you don't miss a beat. The Voiceover Hold control lets you adjust how long the audio is lowered to suit your presentation style.
Compact Powerhouse

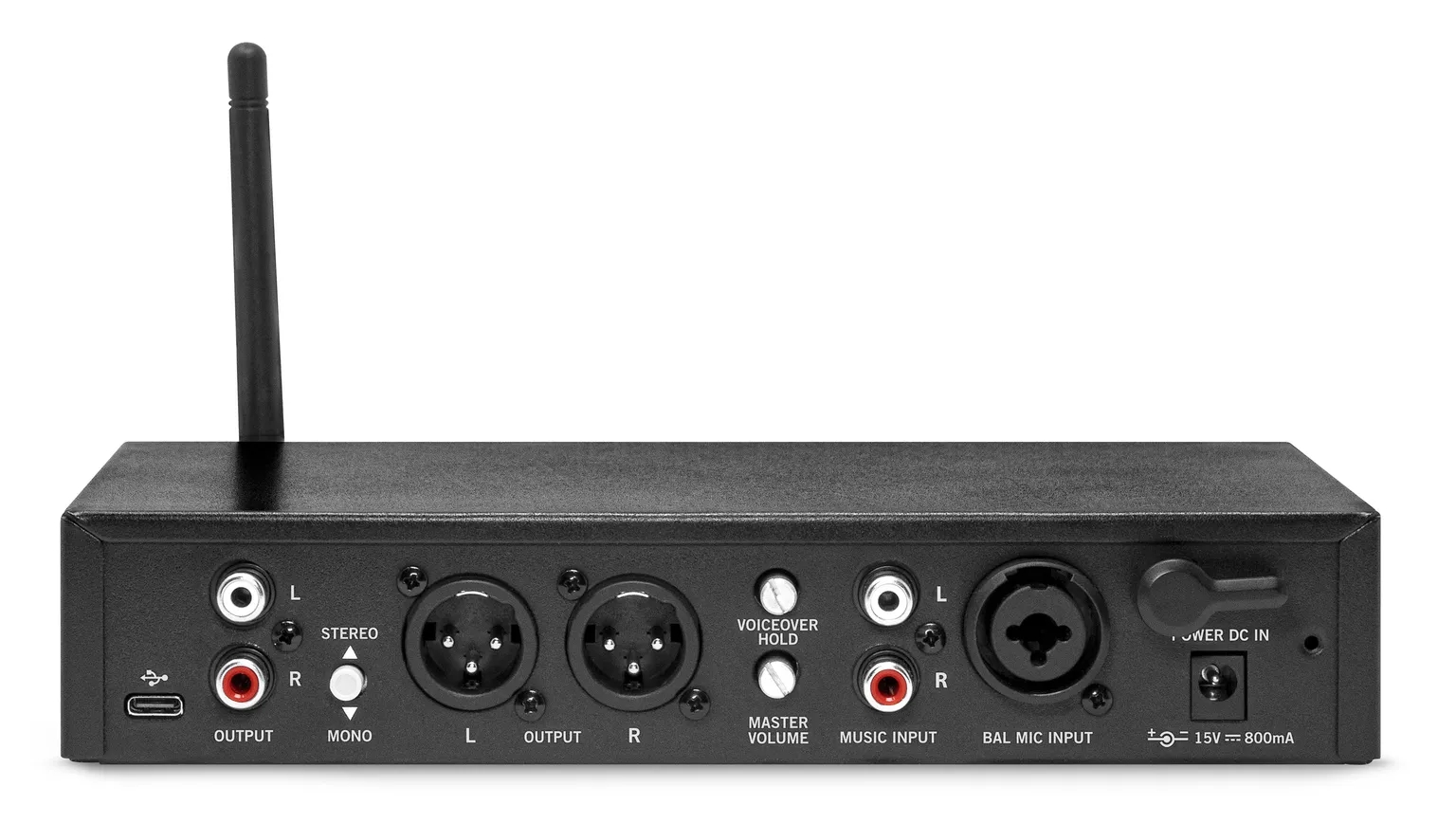

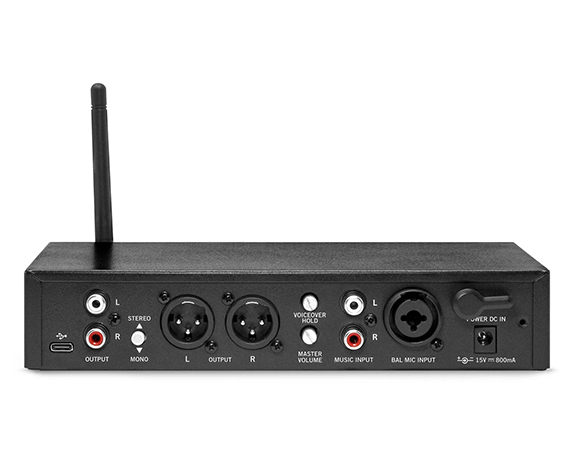

A rear-mounted Master Volume allows the overall output level of the mixer to be set for the room or application without any worry of accidental changes. You can mix all the inputs along with the USB audio from a computer and send them to the dual XLR and RCA line level outputs. The unit can further be configured for either mono or stereo operation. These features make the MediaTrack perfect for hybrid environments when you are both streaming and presenting in front of an audience.

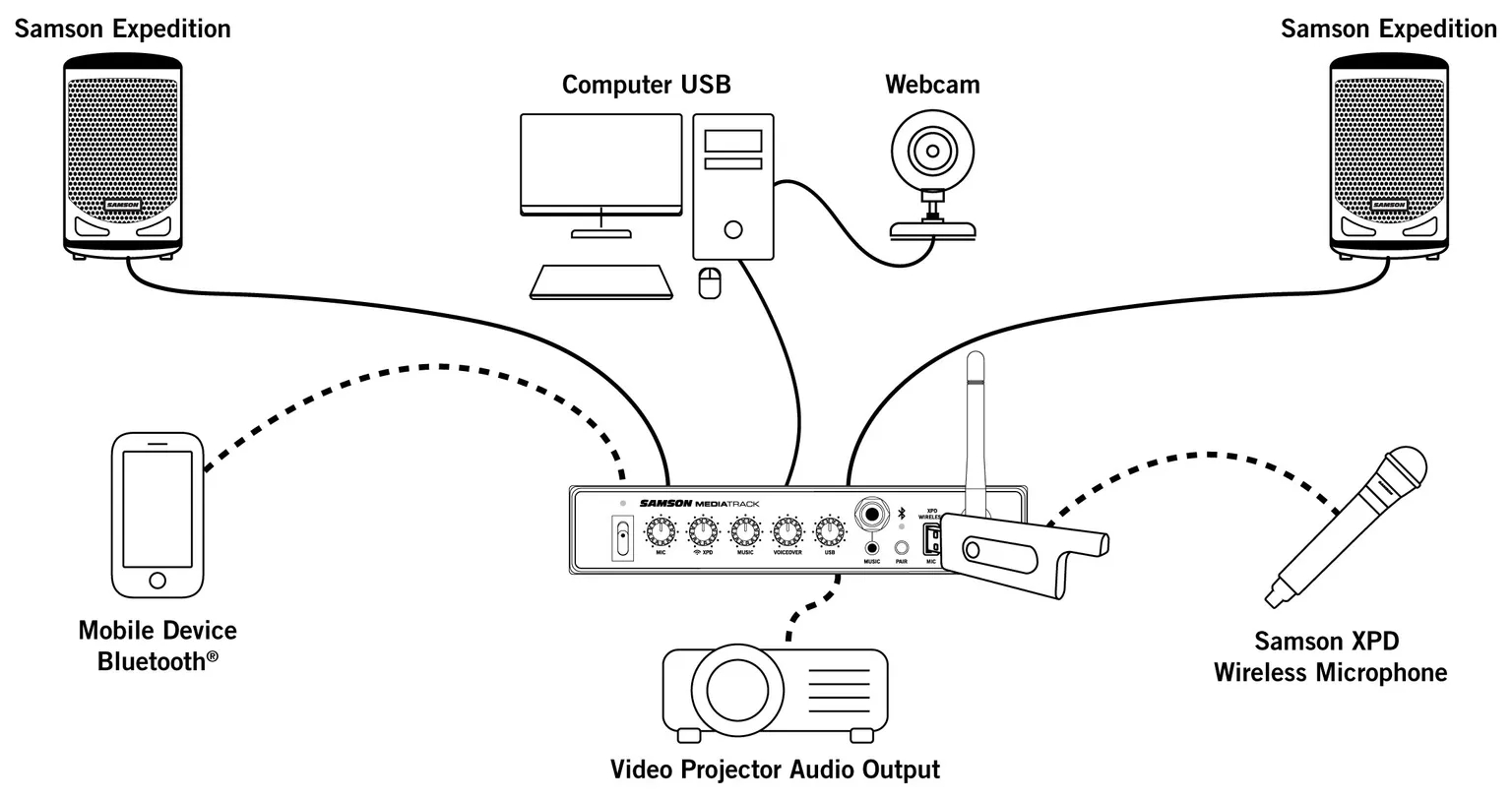

Hybrid classroom typical setup
The MediaTrack is ideal for connected sound applications such as hybrid classrooms, streaming fitness classes, and houses of worship. It is also a great solution for commercial sound systems in restaurants, bars, and conference rooms.
4-channel 1U half-rack stereo line mixer
USB interface for connecting with computers or tablets
XLR-1/4" balanced microphone input
Stereo line channel with RCA, 1/4" and 1/8" (3.5mm) inputs
Bluetooth connectivity to wirelessly stream from a mobile device
Samson XPD Series USB Port (wireless system sold separately)
Voiceover control with priority ducking and variable hold time
Rear panel master volume control
15V phantom power
Selectable Mono or Stereo output setting
Rackmount kit and power adapter included
Frequency Response20Hz¨C20kHz ¡À2dB (Mic to Main)
T.H.D.<0.02% (Mic/Line & Line to Main)
Maximum Input Level-23dBu @ 1kHz (Mic Input)
Maximum Input Level2dBu @ 1kHz (Line Input)
Maximum Output Level+14dBu
Bit Depth16-bit
Sample Rates44.1kHz, 48kHz
Signal-to-noise>96dB
BluetoothV4.0, A2DP V1.2
USB I/OUSB-C
Phantom Power15V DC
Product Dimensions8.75" x 5.5" x 1.75" / 223mm x 138mm x 43mm
Product Weight1.76lb / 0.8kg
Recommended Use
MediaTrack is a versatile 4-channel rackmount line mixer and USB interface with extensive connectivity that's perfect for any commercial or home sound system. Connect to multiple sources with mic and stereo line inputs, a Samson XPD Wireless USB port, and Bluetooth. Voice control with priority ducking ensures your voice is always heard. Great for: Fitness, Audio for Video, Education, Theater / Production, Content Creation, Restaurant / Retail
