MixPad MXP124FX

Premium Value For Live Mixing

The MXP124FX features premium circuitry specifically designed to work with Samson's MDR (Maximum Dynamic Range) mic preamps to provide a wide frequency range, definitive channel separation and natural response. This ensures that all your mixes originate from pure, authentic audio signals, making the MXP124FX perfect for education, broadcast, band rehearsals, and other live sound applications.

Upgrade Your Mixes

With 100 low-noise, 24-bit digital effects, the MXP124FX offers a studio-inspired effects processor to add a professional touch to your mixes. The mixer also features a high-integrity, bi-directional USB connection for recording a mix into your favorite DAW or incorporating digital music files from your computer into a project.

Compact Powerhouse

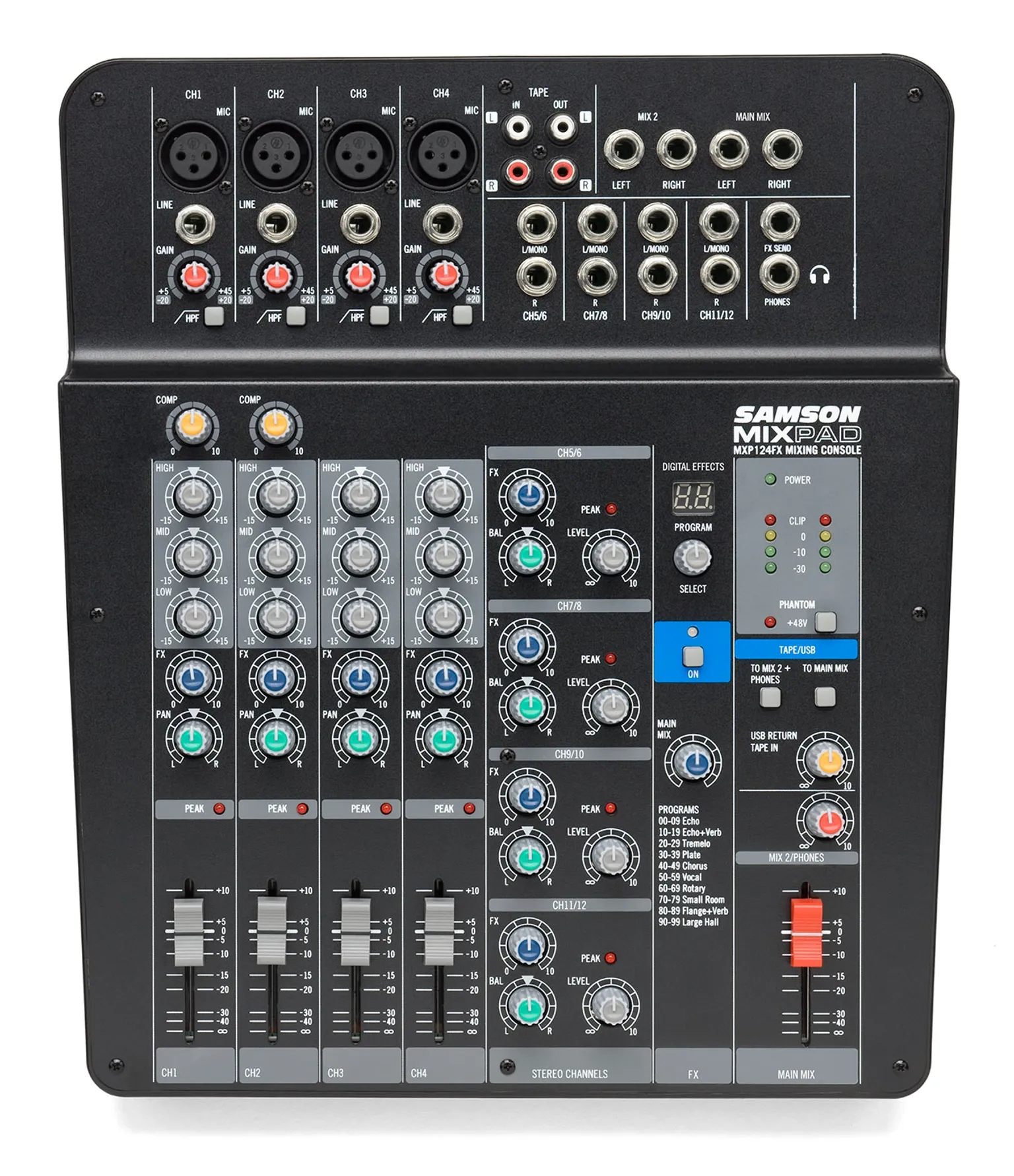

The MXP124FX features four MDR mic preamp channels, each with 3-band EQ, gain trim, high-pass filter, and pre-fader aux send. It also features high-quality faders that are not typical of such a small-format mixer. Two of its mic channels feature single-knob compressors for studio-quality dynamic control without the constant tweaking of external gear. In addition, the MXP124FX features four stacked stereo channels for increased input versatility and portability. Exceptional output flexibility makes the MXP124FX a worthy companion regardless of venue size, giving you precise fader control of your main mix, as well as a Mix 2 output, headphone (phones) monitoring with level control, and an RCA tape out for recording your performance.

Bringing Your Sound to Life

The MXP124FX has selectable 48V phantom power, so you can mix in the warm, natural response of your favorite condenser mics. For live performance, the MXP124FX features brightly colored knobs and a 4-segment LED level meter for safe and efficient operation in dark environments.

Portable, easy to use, and packed with features that ensure optimal control over your performance, the Samson MixPad® MXP124FX represents a new era of possibilities for affordable live mixers.

• Ultra-low noise, high headroom analog mixer

• Four Class A, MDR (Maximum Dynamic Range) mic preamps with 3-band EQ

• Four Stacked-Stereo channels

• High-quality, precision faders

• Two single-knob, studio-quality compressors

• High-integrity, bidirectional USB interface

• 100 24-bit, low-noise digital effects

• One pre-fader Aux Send per channel for monitor mix

• All mic channels equipped with input Gain and high pass filters

• 48V Phantom Power for condenser microphones

• Multiple outputs: Main Mix, Mix 2, Phones and Tape

• USB/Tape inputs assignable to Main Mix or Mix 2/Phones outputs

• Optional mic stand mount available

Frequency Response (Trim @ Min, unity gain ± 3 dB)

Mic to Main20Hz~30KHz

Line to Main20Hz~30KHz

Aux Return to Main20Hz~30KHz

Line to Aux Send20Hz~30KHz

T.H.D. (Trim @ Min, +4dBu output, unity gain, 1 kHz w/30 kHz LPF)

Mic/Line to Main (Mono Ch) <0.03%

Line to Main (Stereo Ch) <0.03%

Line to Aux Send <0.03%

Equivalent Input Noise (“A” filter on, input shorted)

Mic (Trim @ Min﹐ Fader set ”0”)< -90dB 20HZ~30KHZ A-weighted

Line (Trim @ Min﹐ Fader set ”0”)< -90dB 20HZ~30KHZ A-weighted

Maximum Voltage Gain

Mic to Main63dB

Line to Main (Mono Ch) 39dB

Line/Tape to Main

 (Stereo Ch) 26dB

Mic to Aux Send 63dB

Line to Aux Send (Stereo Ch) 29dB

Residual Noise (30 kHz LPF, all control Min)Main (All fader min)

-105dBu A-weighted

Aux Send (All fader min)-94dBu A-weighted

Crosstalk (@ 1 kHz w/ 30 kHz LPF)

Ch vs. Ch ( Trim @ min﹐Fader set 0)>75dB A-weighted

Input vs. Output >60dB A-weighted

Maximum Input Level (1 kHz, ± 3dB)

Mic Input (Mono Ch) +16dBu

Line Input (Mono Ch) +40dBu

Input Channel Equalizer (± 3dB)

High  ±15 dBu

Mid±15 dBu

Low±15 dBu

PEAK Indicators

Mic (Mono Ch)+16dBu

Line (Stereo Ch)+16dBu

Phantom Power48V±3V

Headphone output (600 ohm load) +20dBu

Internal DSP Effects100 presets

USB Bus Power USB2.0 +5V DC 0.5A max

Dimensions (W x D x H) 12.9” x 11.7” x 3” / 327mm x 298mm x 75mm

Weight 5.0lb / 2.3kg
