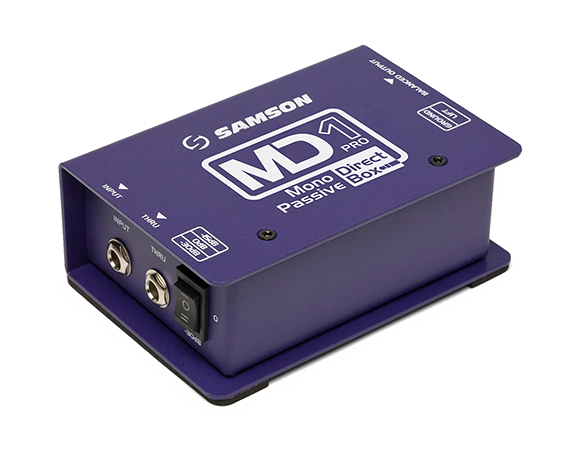

MD1 Pro

To The Max

The MD1 Pro's Thru jack allows you to take the signal from the input and send it to an amplifier or monitor without affecting the original audio. This can eliminate the need for miking guitar amps, which may be preferable in some applications, especially as more musicians use in-ear monitors.

Clean, Clear Signal

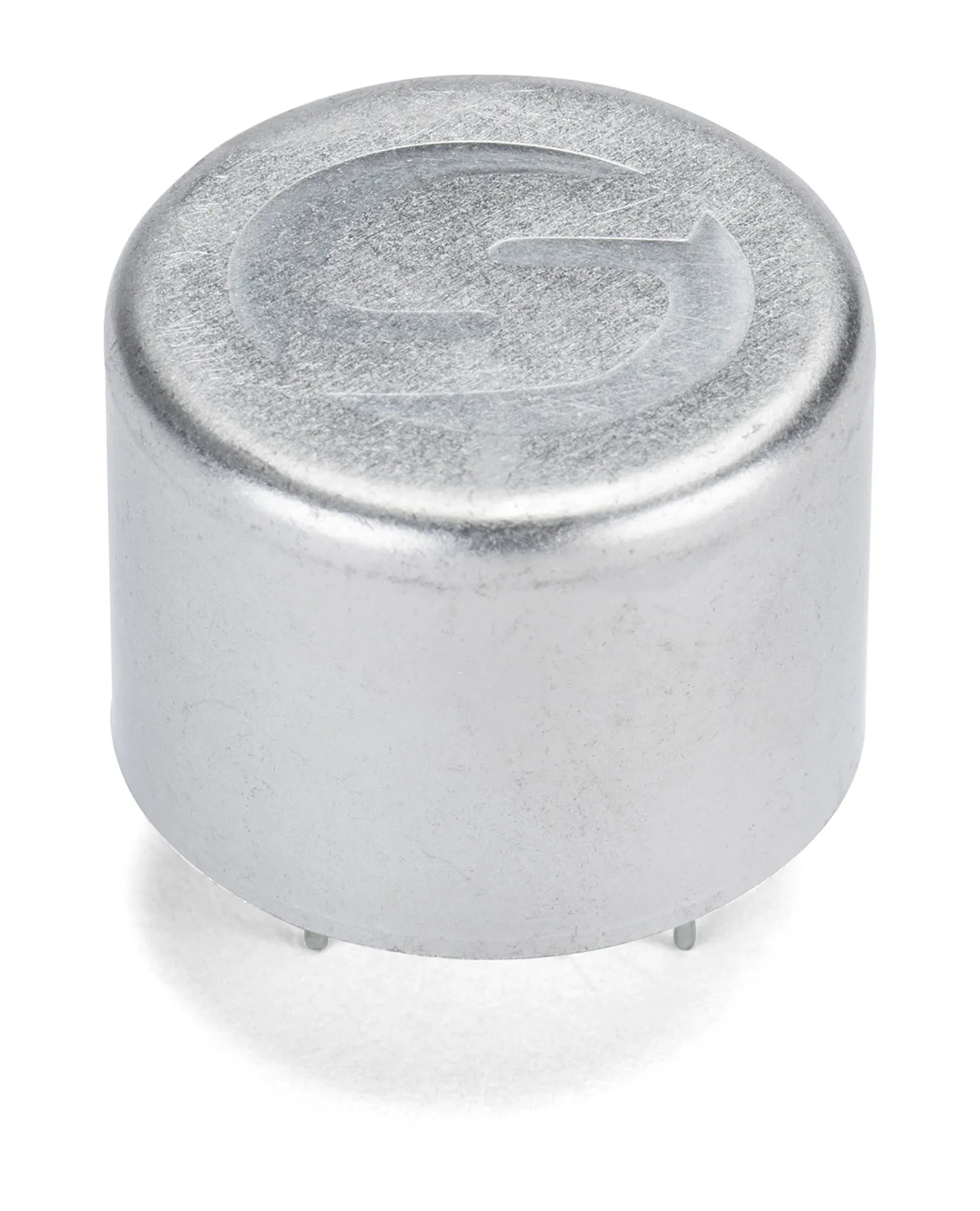

The MD1 Pro features Samson's STLX Mu-Metal shielded transformer, which provides an extended, flat frequency response with ultra-low distortion and superior protection against hum and RF interference. The MD1 Pro's balanced output provides a clean signal that is less susceptible to noise than an unbalanced line, allowing for longer cable runs. The MD1 Pro also includes a 3-position 0dB/-15dB/-30dB attenuation switch for switching between line and speaker level signals.

Roadworthy Construction

Housed in a 14-gauge steel chassis, the MD1 Pro is built to withstand the abuse of the most demanding live tours. Its rigid outer shell protects all the MD1 Pro's internal connections, switches and solder joints from failure, ensuring quiet, reliable performance.

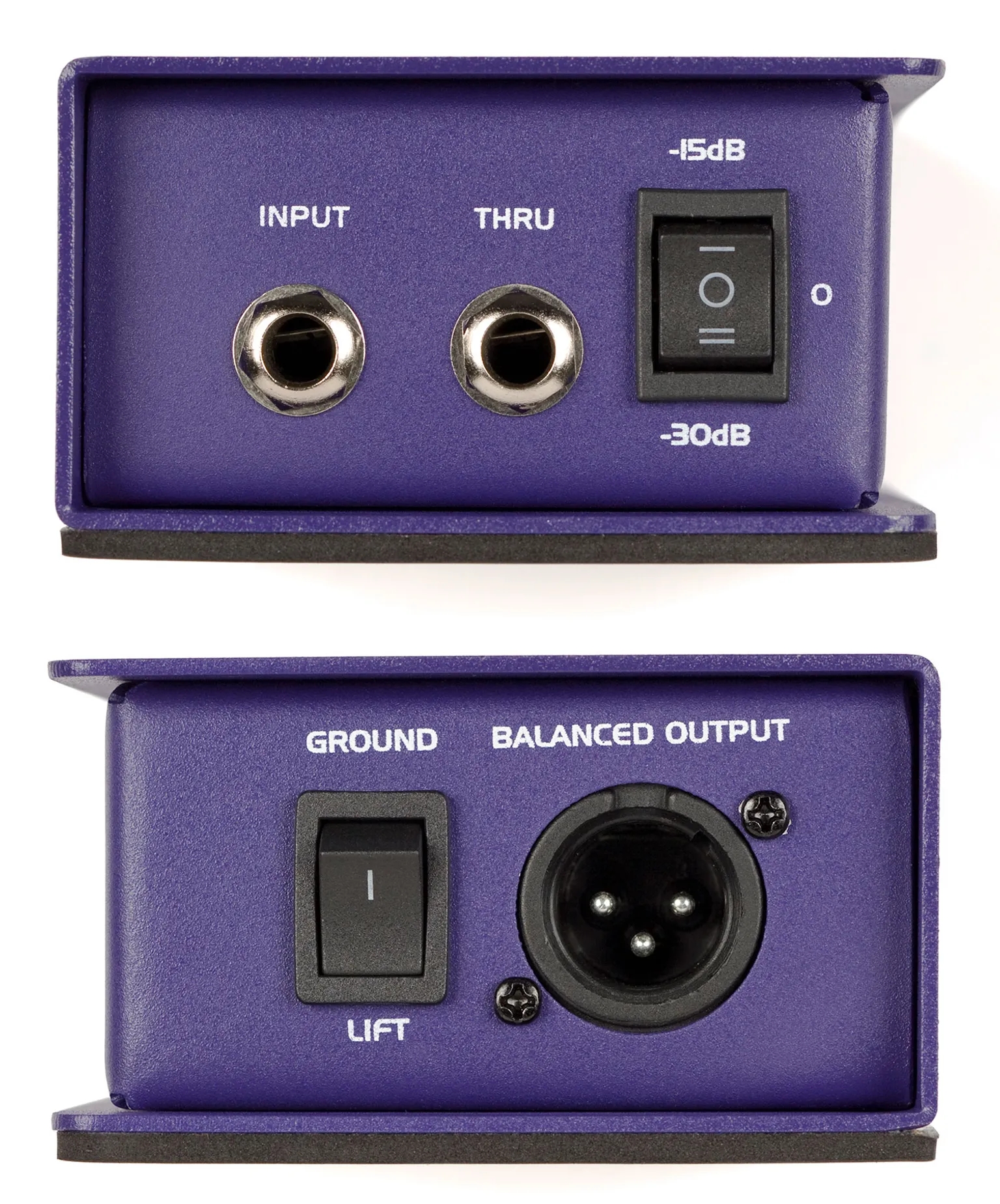

Features

• All-metal, impact resistant design

• Samson STLX Mu-Metal shielded transformer

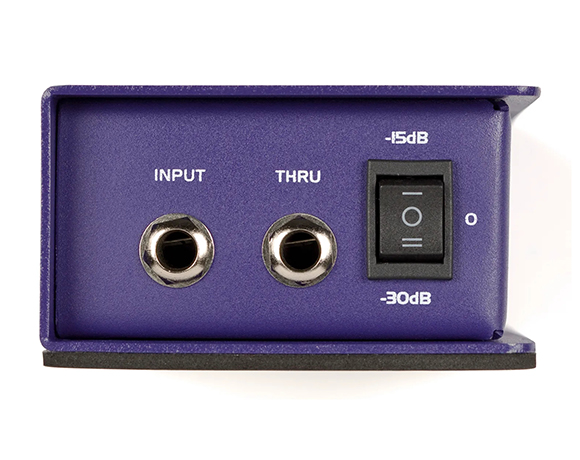

• 3-position 0dB/-15dB/-30dB attenuation switch

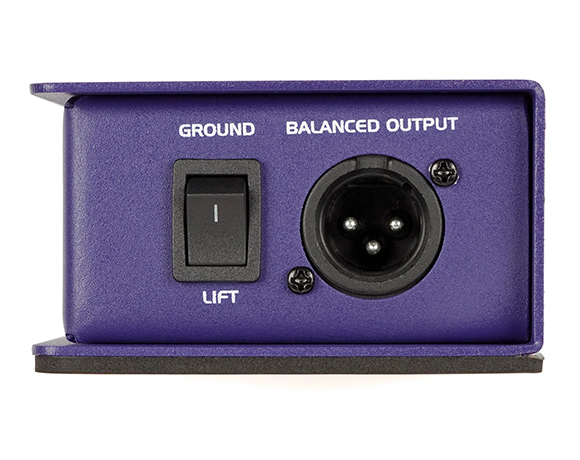

• Ground Lift switch

• 1/4" Input and Thru

• Balanced XLR output

• No Phantom or Battery power required

• Frequency response of 18Hz–40kHz
