RSXM10A

Your Stage Sidekick

The RSXM10A produces 800 watts of Class D power through its 10" woofer and premium 1" horn-loaded tweeter. A compact, coaxial design gives the monitor amazing portability with impeccable sound. In addition, the RSXM10A features an integral 1 3/8" pole mount and a Monitor/FOH optimization switch for added flexibility.

Multi-Talented Monitor

Designed to bring professional performance to a variety of monitoring applications, including keyboards and electronic drums, the RSXM10A is also convenient for DJs who need a dedicated monitor while working in a compact booth. A single XLR-1/4" combo input is provided, along with an XLR link output for system expansion. In addition, the RSXM10A features a powder-coated steel grille and two integrated side carrying handles, making it durable yet highly portable for use on the road.

• Lightweight Class D 2-way active stage monitor

• 800 watts of output power

• All-wood cabinet construction

• Compact, coaxial design

• 10" low frequency driver

• 1" tweeter

• XLR-1/4" combo input

• XLR Link output

• Dedicated Volume knob

• FOH/Monitor selector switch to optimize sound

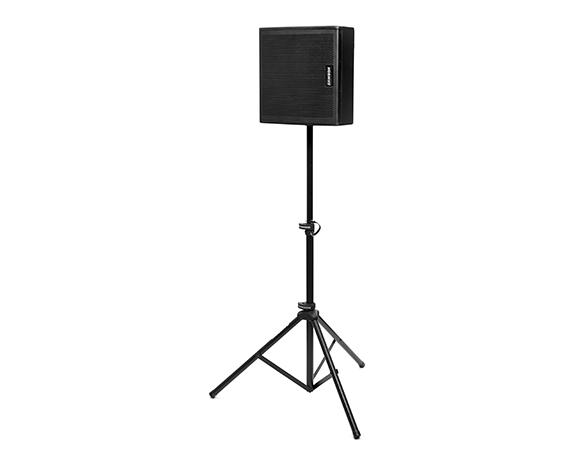

• 1 3/8" pole mount receptacle

• Integrated side carry handles

• Perforated steel grill protects all monitor components

• Durable black, textured paint finish

Low Frequency 350W

Peak Power700W

High Frequency50W

Peak Power100W

Low Frequency10” (254 mm) woofer with 2” (51 mm) voice-coil

High Frequency1” (25.4 mm) Driver with 1” (25.4 mm) voice-coil

Frequency Response (-3 dB)60 Hz to 20 kHz

Maximum SPL (Peak Power)125 dB SPL @ 1 m

Coverage Angle (Horz. x Vert.)70° x 70°

Equalization SwitchMonitor, FOH (Front of House)

Crossover Type12 dB/oct

Crossover Frequency3.5 kHz

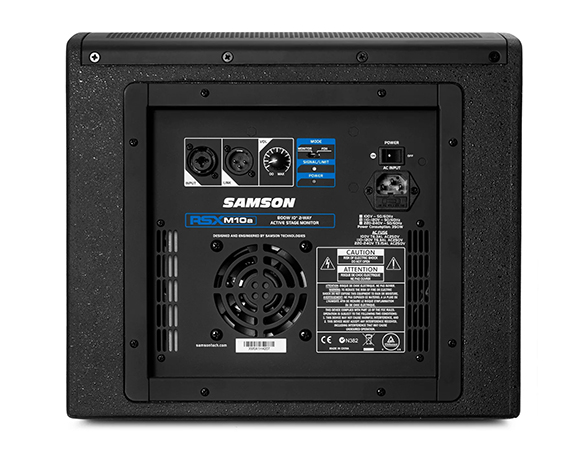

InputsBalanced XLR & 1/4” Connectors

OutputBalanced XLR Line Output

Mounting MethodIntegral 1 3∕8” Pole Mount Receptacle

Dimensions14.27” x 13.8” x 12.87” / 362.5mm x 350.6mm x 327mm

Weight27.66lb / 12.55kg
