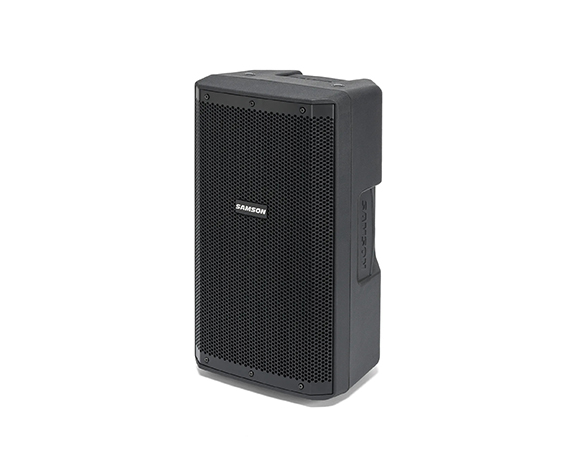

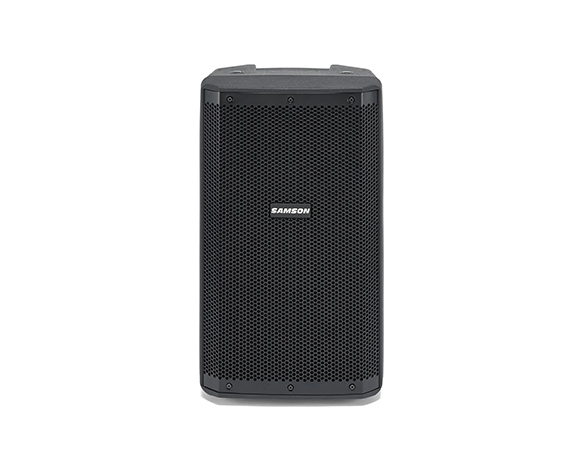

RS110A

Full-Range Sound Image

This 300-watt powerhouse provides excellent coverage and produces a balanced audio image for live music, events, karaoke and mobile DJ setups. The RS110A features a bi-amplified design that drives a 10" woofer for tight, punchy bass and a 1" tweeter for smooth, crisp highs guaranteed to bring down the house.

All The Ins & Outs

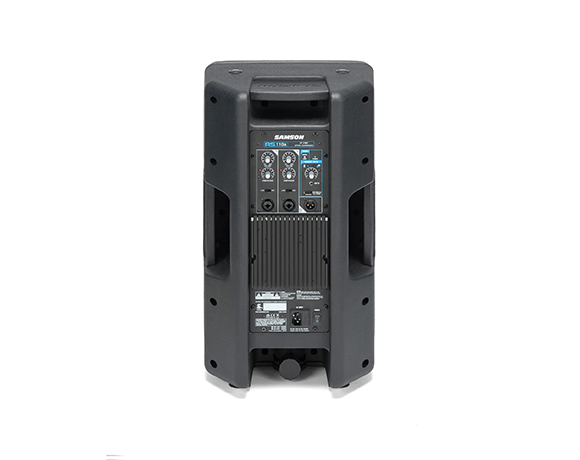

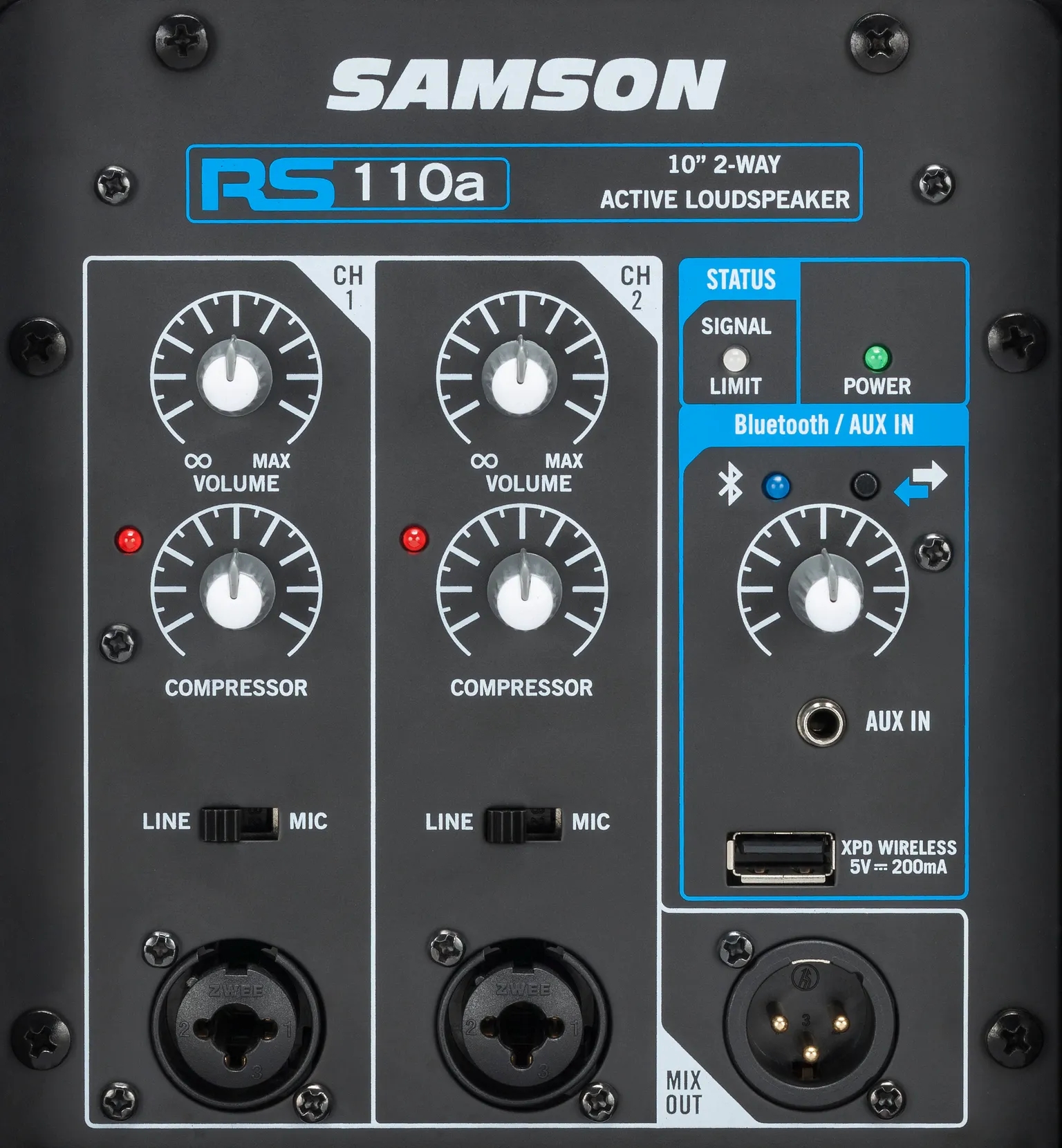

The RS110A has all the necessary connections for integration into any sound setup. The onboard mixer features two selectable Mic/Line XLR-1/4" combo input channels for microphones or instruments, each with variable compressor controls. An additional 1/8" line level input provides connections for phones or external music players, as well as Bluetooth connectivity. A USB wireless port can be used with Samson's XPD Series wireless microphone systems (sold separately). There is also a convenient XLR mix output for connecting the RS110A to additional speakers.

Rugged Cab Design

A rugged, high-impact polypropylene cabinet construction and metal grille make the RS110A perfect for the demands of the road and stage. The cabinet offers horizontal/angled floor monitor positioning, a 1 3/8" pole mount for stand placement, and four M10 fly points for permanent speaker installation. In addition, the RS110A includes convenient top and side carrying handles for easy transport.

• 2-way active loudspeaker

• 300 watts Peak/170 watts RMS of power

• 10" extended range low frequency driver with 2" voice coil

• 1" high frequency driver

• Two selectable Mic/Line XLR-1/4" combo inputs with variable compressor controls

• Bluetooth connectivity to connect wireless music sources

• 1/8" (3.5mm) Aux input for stereo line level devices (MP3 players, keyboards, etc.)

• Samson XPD* USB Digital Wireless jack (sold separately)

• Independent volume controls on all channels

• XLR Mix output for daisy chaining additional speakers

• Signal/Limit indicator

• Solid polypropylene enclosure with impact resistant design

• Three large ergonomic carry handles

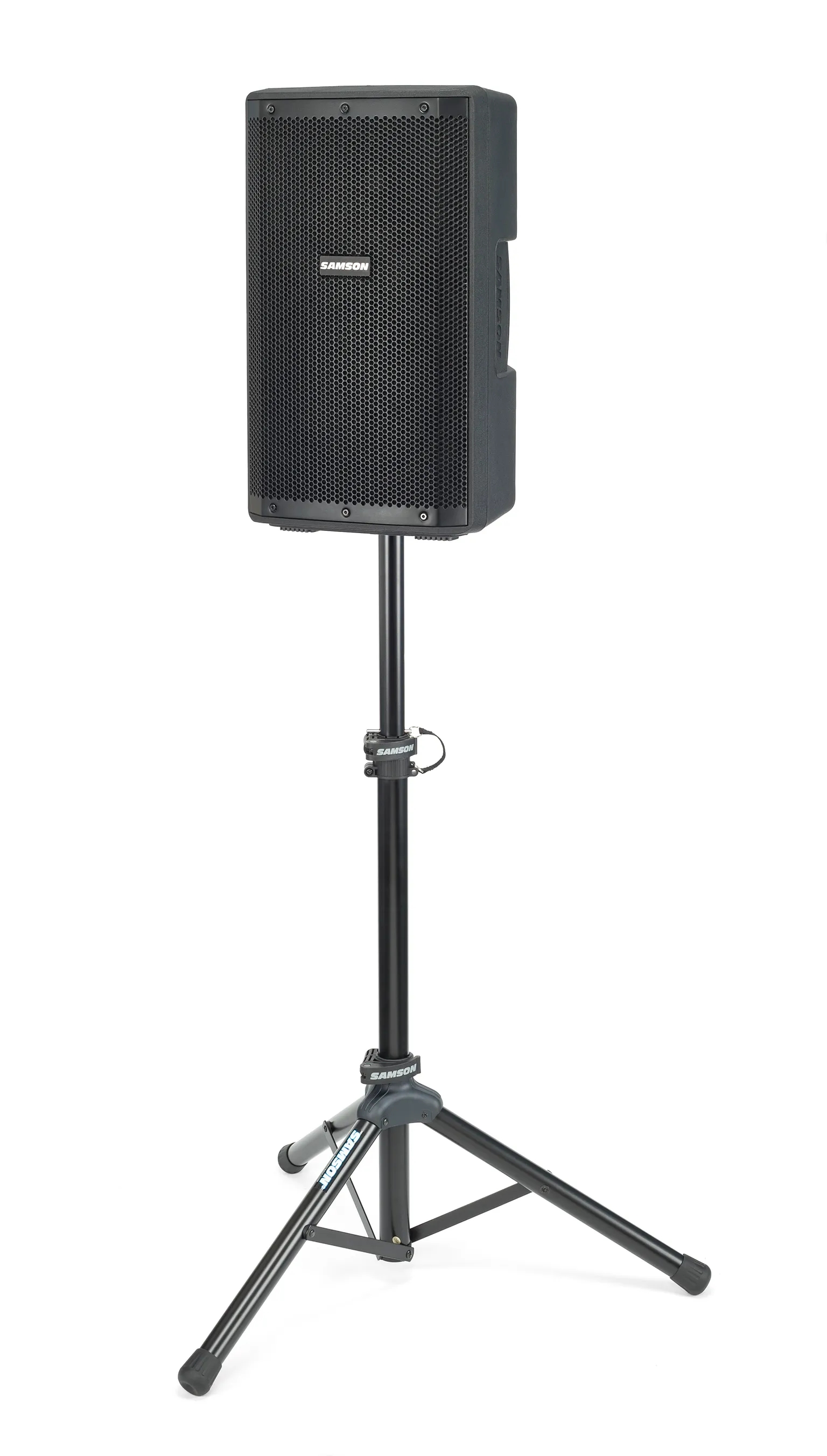

• Integrated 1 3/8" speaker stand mount

• Four M10 fly points

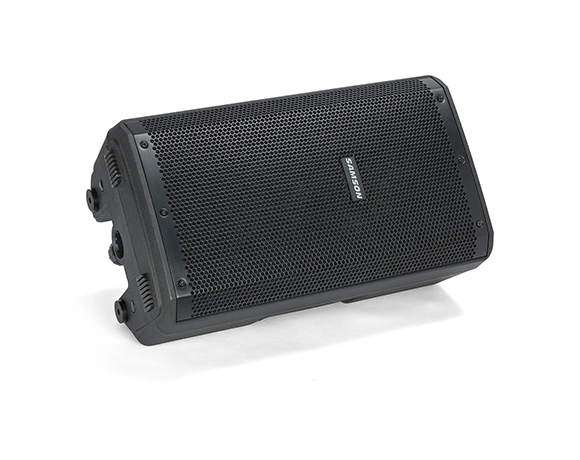

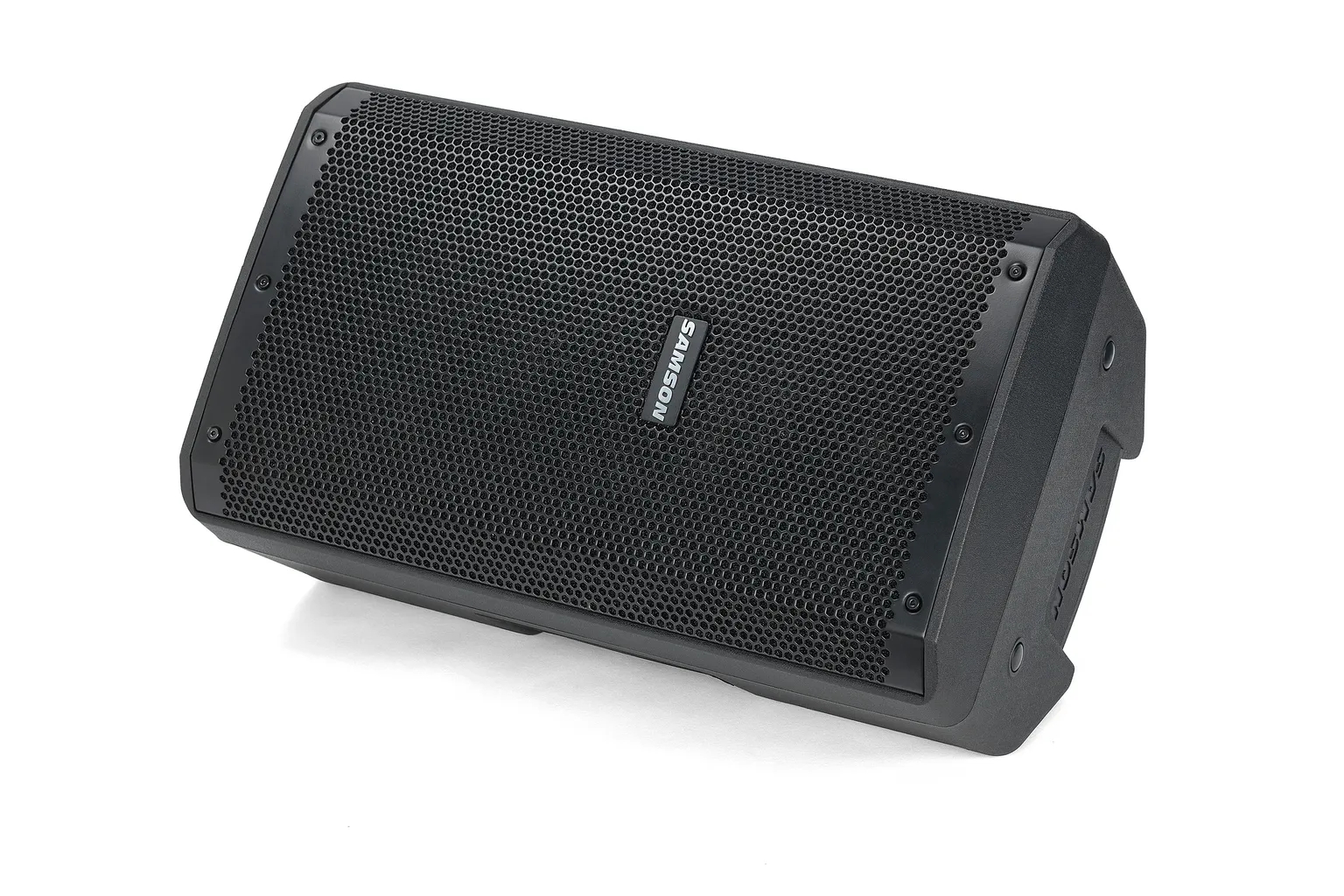

• Horizontal/Angled floor monitor positioning

• Full perforated metal grille protects all speaker components

Output Power300 Watts Peak / 170 Watts RMS

Max. SPL (1M)102dB

Frequency Response60Hz – 20kHz

Low Frequency10” (254mm) Woofer, 2” (50.8mm) Voice Coil

High Frequency1” (25.4mm), 1” (25.4mm) Voice Coil

Crossover Frequency3.5kHz

Crossover Type24dB/Oct

Horn Coverage84°H x 56°V

InputsBalanced XLR–1/4” Combo, USB XPD Wireless

OutputBalanced XLR Line Output

Contour Equalization100Hz & 12kHz Boost

Electronic ProtectionThermal, Overload, Analog (Optical) Limiter, Compressor

EnclosurePolypropylene

GrilleFull metal perforated

HandlesTwo side, one top

Monitor Angle45°

Mounting Method1-3/8” (35mm) Pole Mount Receptacle, 4 M10 Flypoints

Dimensions 12.6” x 11.2” x 22.1” / 320mm x 285mm x 561mm

Weight21.6lb / 9.8kg
