Resound VX8.1

Spread Your Sound Around.

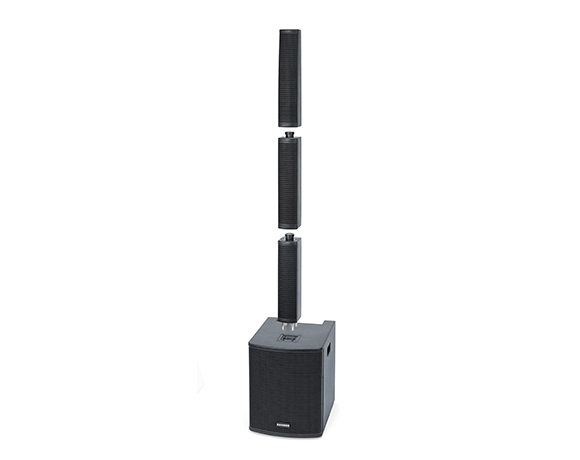

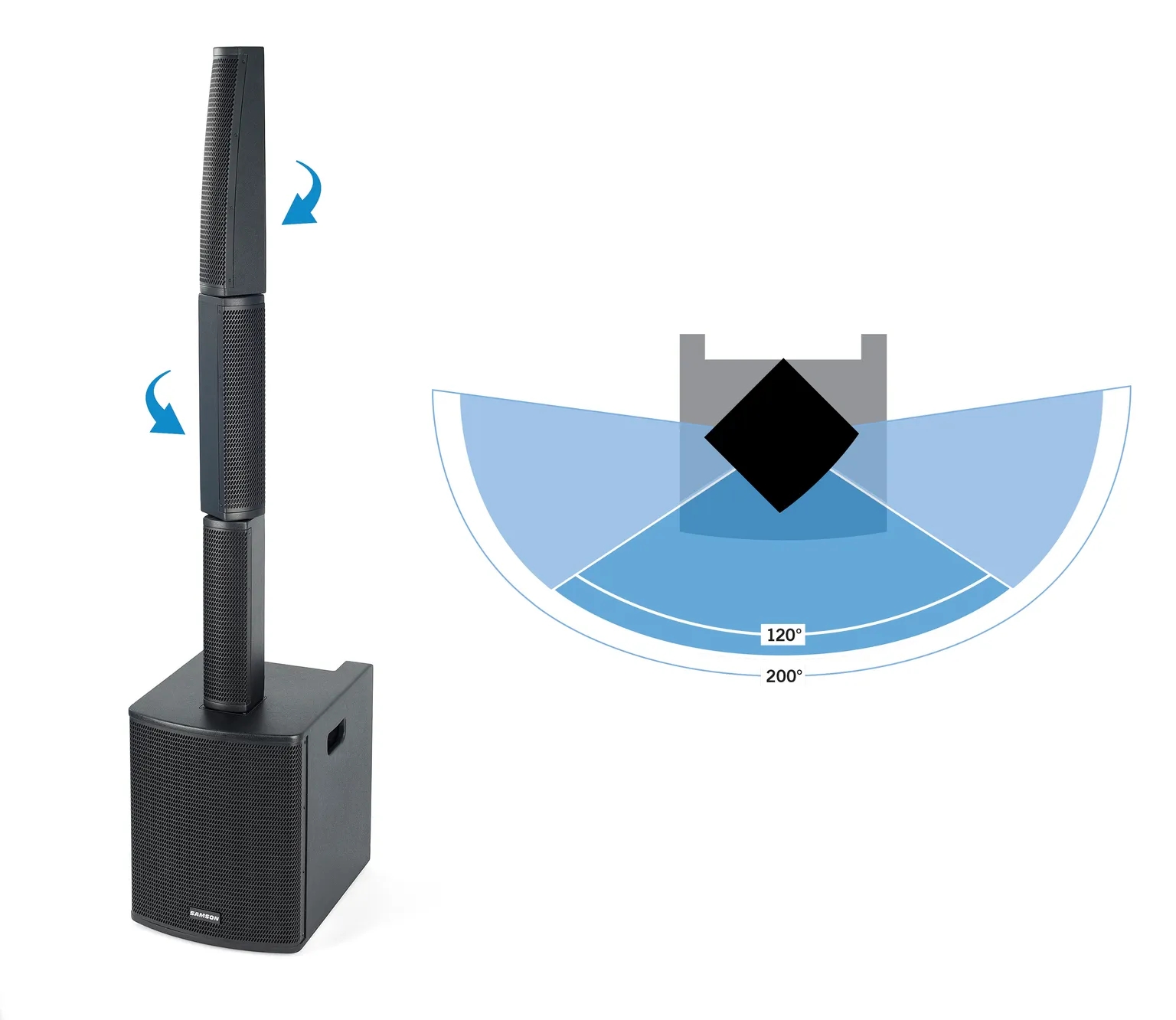

Eight 3.5" drivers are arranged in an interlocking 3-segment column array, coupled with a 12" subwoofer capable of producing up to 125dB SPL. To ensure that sound is delivered to the entire audience, the VX8.1 provides a horizontal coverage angle of 120° with the full array in the center position, as well as 200° with the two array segments rotated 45° in opposite directions. Meanwhile, the system's subwoofer delivers tight bass down to 40 Hz.

Power and Connections

Featuring a lightweight Class D amplifier that delivers 700 watts of power to the system (350W Sub / 350W Array), not to mention on-board 4-preset (Music, Live, Speech, DJ) DSP processing, the VX8.1 has what it takes to fill large rooms with stunning sound. Its 3-channel mixer provides connections for microphones, instruments and line devices. You can also stream backing tracks or music playback from any mobile device via Bluetooth®. Plus, a Thru output allows you to integrate a second VX8.1 system and expand your sound even further.

Gig Ready

Constructed of solid plywood with textured finish and steel grille, the VX8.1 is built to last from gig to gig. In addition, the system's interlocking components make setup quick and easy, eliminating the need for cables or stands. An included shoulder bag makes transporting the system a breeze.

• All-in-one portable column array system that weighs 67lb

• Interlocking components for easy setup

• Top-mounted 3-channel mixer integrated into the subwoofer

• Bluetooth connectivity to connect wireless music sources

• Selectable 4-preset DSP processing

• 3-point electronic protection circuitry with temperature-controlled fan

• Solid plywood enclosures with textured paint, steel grilles and side carry handles

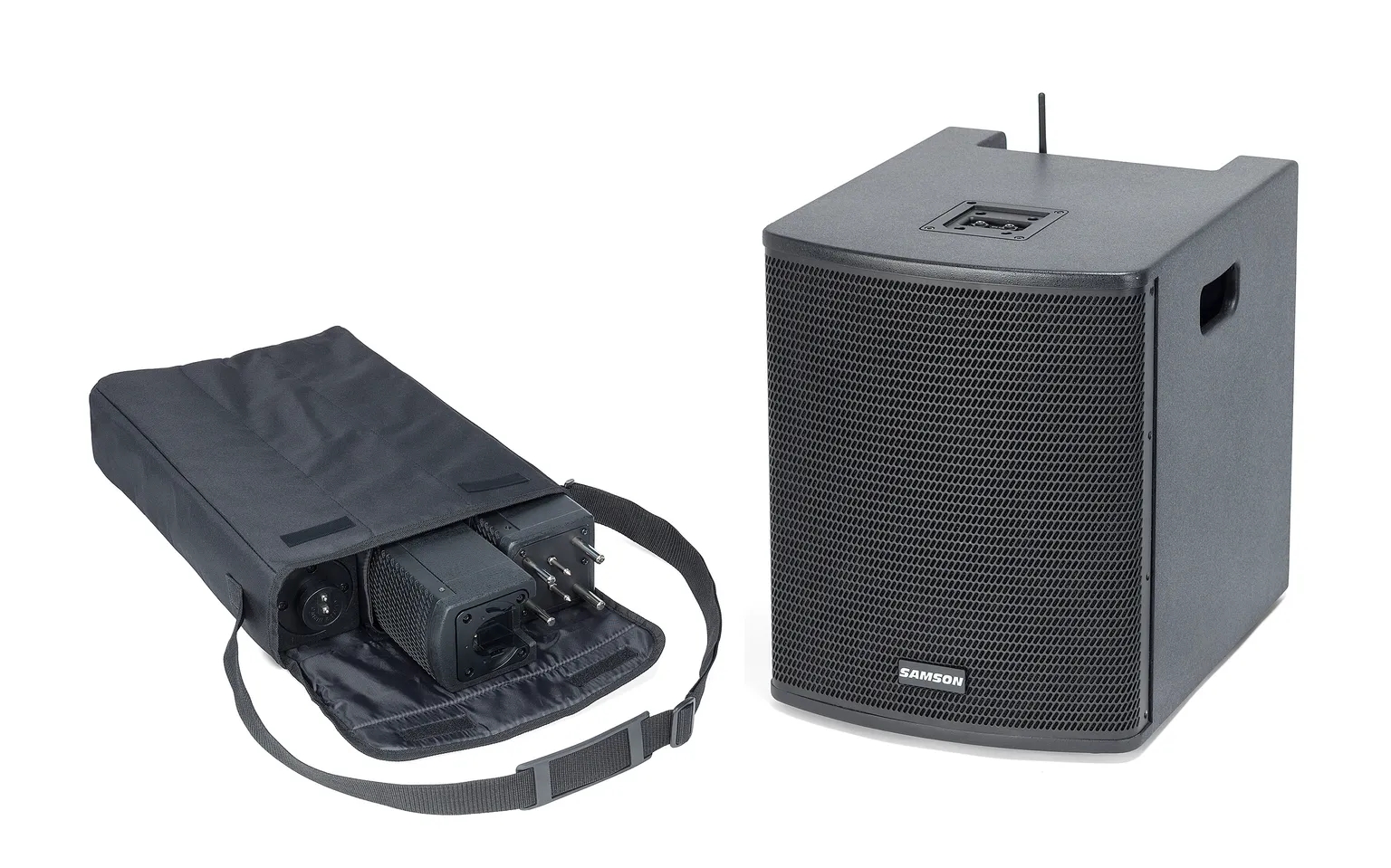

• Includes shoulder bag for transporting the column array

Power800W @ 4Ω (400W per channel) Peak, 400W @ 4Ω (200W per channel) Average

Frequency Response20Hz–20kHz

Speakers8" woofer, 1" HF driver

Input Channels8 (4 mono, 2 stereo)

InputsXLR, 1⁄4” balanced, RCA, 3.5 mm stereo, Bluetooth, USB Wireless

Input Channel EQ (High/Low)10kHz/100Hz shelving ±15dB

Speech/Music Switch167Hz, 3dB/Octave

Effects16 Preset, 24-bit DSP

Outputs1⁄4” MONITOR, 1⁄4” SUB OUT , 1⁄4” Speaker output

Maximum Output Level+22dBu(MONITOR L/R & SUB OUT) @10KΩ

Phantom Power+15V DC, Fixed Phantom Voltage

BluetoothBluetooth 3.0, A2DP

Included Accessories2 x 25' 1/4" Speaker Cables

Product Dimensions20.1’’ x 10.6’’ x 19’’ / 510mm x 270mm x 485mm

Product Weight41.5Ib / 18.8kg
