LM7x

-

Unidirectional Lavalier Microphone

left right

Pro Performance

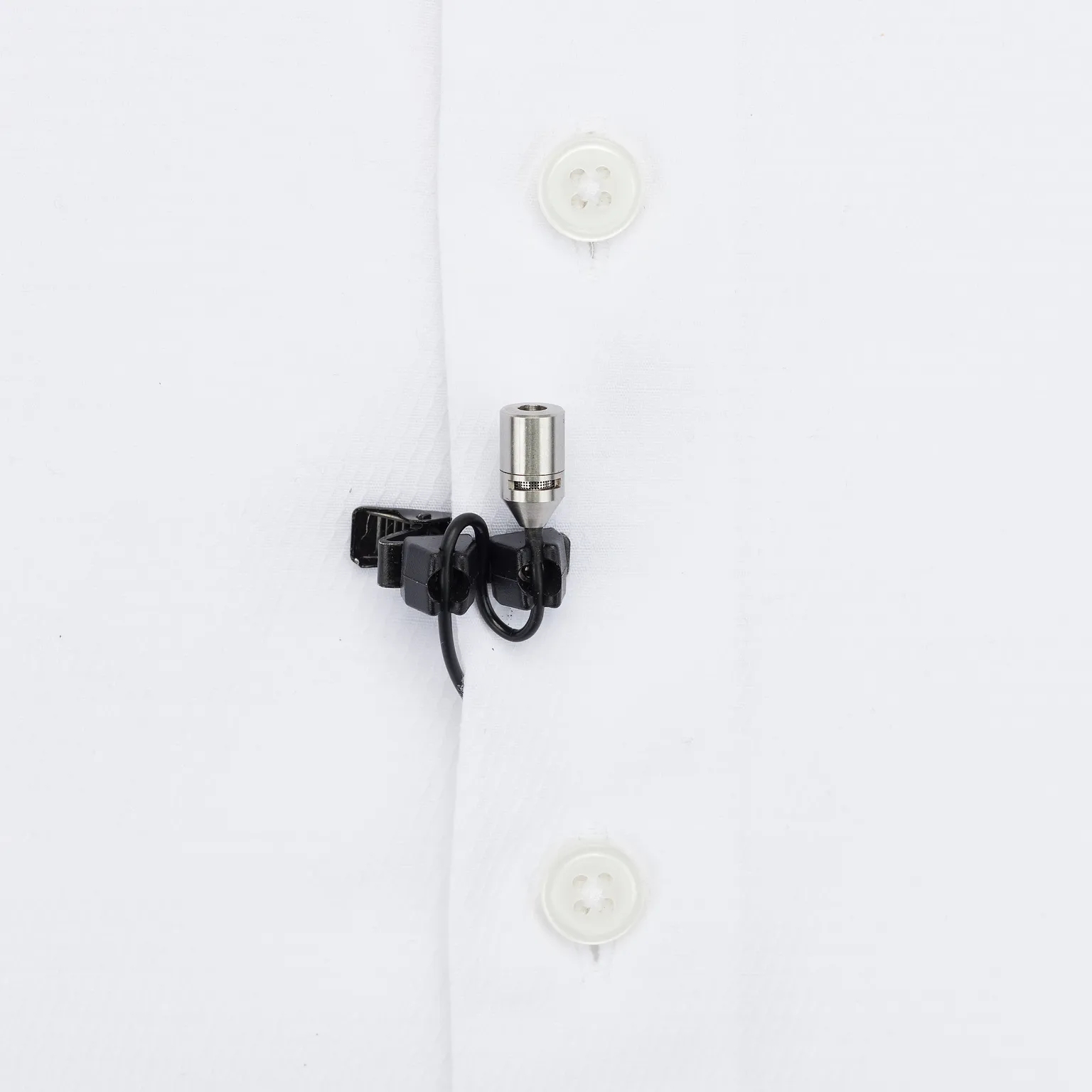

With a unidirectional pickup pattern, the LM7x's 1/4" miniature capsule captures stunning audio from directly in front of the microphone while rejecting sound from behind and minimizing feedback. Plus, its lightweight clip design allows for low-profile, nearly invisible placement on ties, lapels and more.


Versatility Times Four

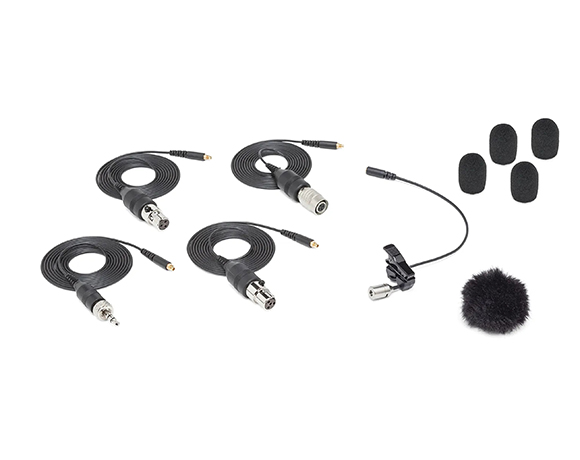

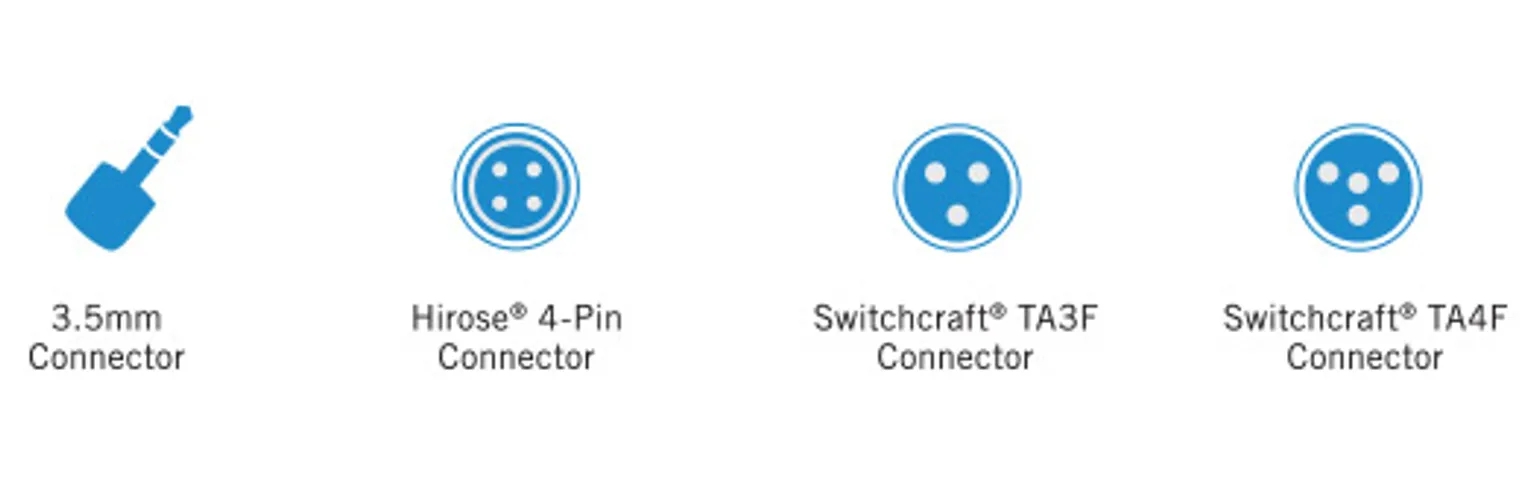

The LM7x comes with four detachable microphone cables with 1/8" (3.5mm), Hirose® 4-pin, Switchcraft® TA3F and Switchcraft® TA4F adapters. This makes the LM7x well suited for use with Samson wireless systems (TA3F), as well as most other popular wireless systems.


Bundled Up

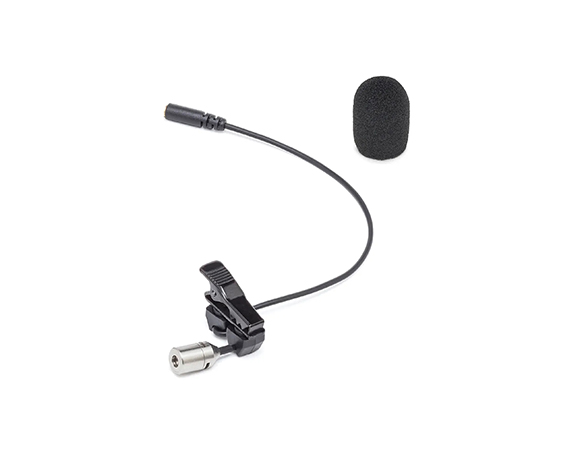

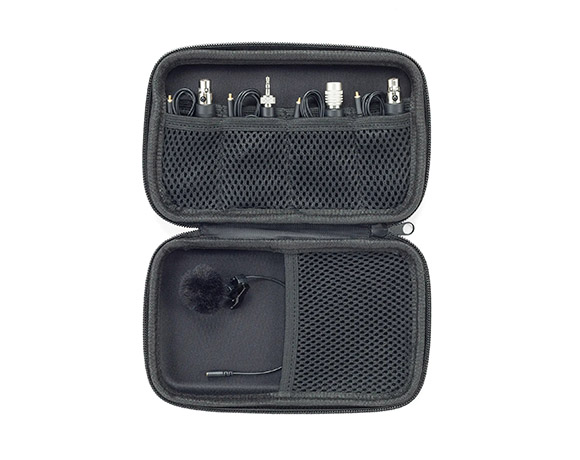

In addition to the lightweight, unobtrusive microphone clip, the LM7x comes with a "cat fur" windscreen and four standard windscreens to reduce wind noise and p-pops. A carrying case is also included to protect/transport the microphone and all its components.


  • Lavalier microphone with 6.84mm condenser mic capsule

  • Lightweight/inconspicuous clip design for placement on ties, lapels, etc.

  • Ideal for broadcast, presentation, house of worship, theater and other vocal applications

  • Unidirectional pickup pattern

  • 50Hz¨C12kHz frequency response

  • Includes four detachable adapter cables (1/8" [3.5mm], Hirose® 4-Pin, Switchcraft® TA3F, Switchcraft® TA4F) for compatibility with most popular wireless transmitters

  • "Cat fur" windscreen, four standard windscreens, mic clip and carry case included

Microphone ElementBack electret condenser

Capsule Dimension6.84mm

Polar PatternUnidirectional

Frequency Response50Hz¨C12kHz

Sensitivity-45dB 1 V/Pa ¡À3dB at 1kHz

Output Impedance2.2k¦¸ ¡À30%

Max. SPL125dB

Operating Voltage1.5¨C12V DC

Cables4x ø1.4mm*1.2m

Adapters1/8" (3.5mm), Hirose® 4-Pin,Switchcraft® TA3F, Switchcraft® TA4F

Accessories1x "cat fur" windscreen, 4x standard windscreens, mic clip, carry case

Product Weight0.07oz / 2g
