DE60x

-

Unidirectional Headset Microphone with Miniature Condenser Capsu

left right
View Larger

Heading One Direction

With a unidirectional pickup pattern, the DE60x's miniature 7.35 mm microphone capsule captures stunning audio from directly in front of the microphone while rejecting sound from behind and minimizing feedback. The DE60x features a low-profile, binaural headset design with an easily adjustable frame and boom. This allows for a secure, comfortable fit and optimal microphone placement for any user.


Great Adaptation

The DE60x comes with four detachable microphone cables with 1/8" (3.5mm), Hirose® 4-pin, Switchcraft® TA3F and Switchcraft® TA4F adapters. This makes the DE60x well suited for use with Samson wireless systems (TA3F), as well as most other popular wireless systems. The DE60x also comes with four windscreens to reduce wind noise and p-pops, a collar clip for discreet wire placement and a protective carrying case.


Active Performance-Ready

The DE60x features a gold-plated connector, moisture-resistant coating and stainless steel mesh grill, all of which contribute to an IP65 rating for dust and water/sweat resistance. This makes the headset ideal for fitness instructors and active performers.

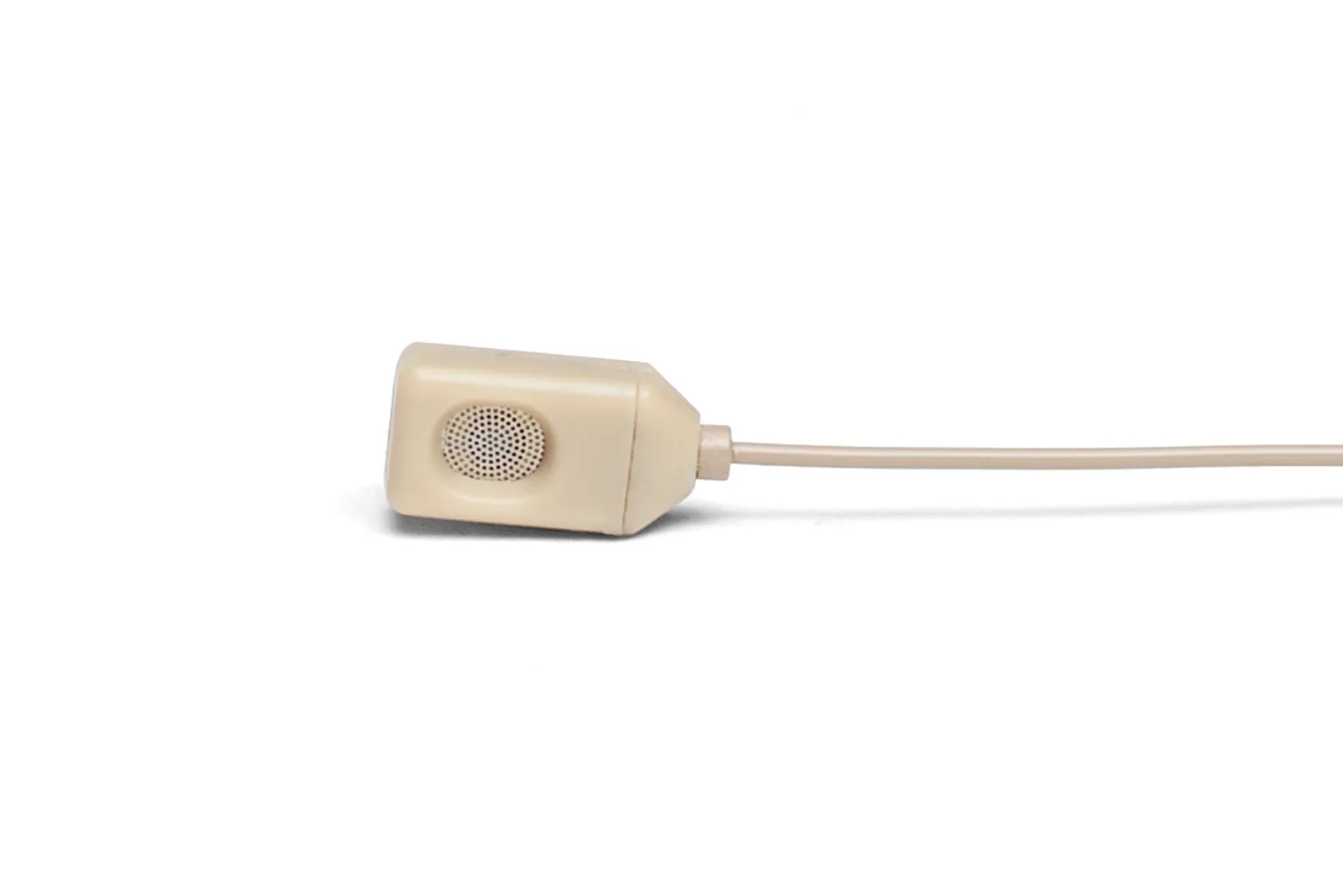

  • Headset microphone with 7.35mm miniature condenser mic capsule

  • Low-profile, double ear design with adjustable frame and mic boom

  • Ideal for live and broadcast vocal applications, presentations, houses of worship, theaters, fitness and more

  • Unidirectional (cardioid) pickup pattern

  • 50Hz–18kHz frequency response

  • Gold-plated connector, moisture-resistant coating and stainless steel mesh grille

  • Dust and water/sweat-resistant rated at IP65

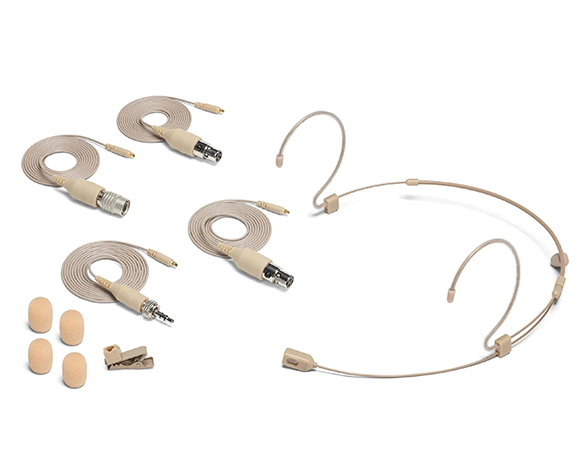

  • Includes four detachable adapter cables (1/8" [3.5mm], Hirose® 4-Pin, Switchcraft® TA3F, Switchcraft® TA4F) for compatibility with most popular wireless transmitters

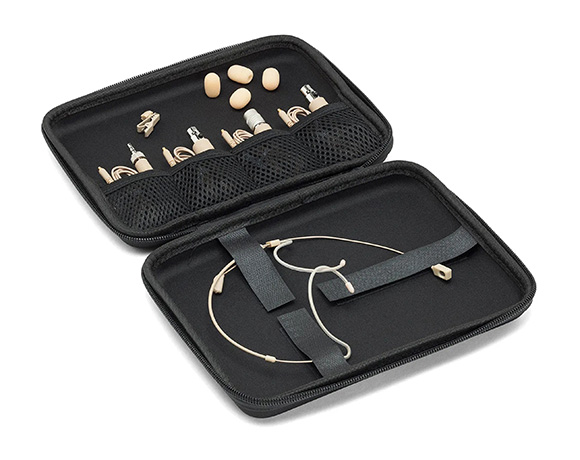

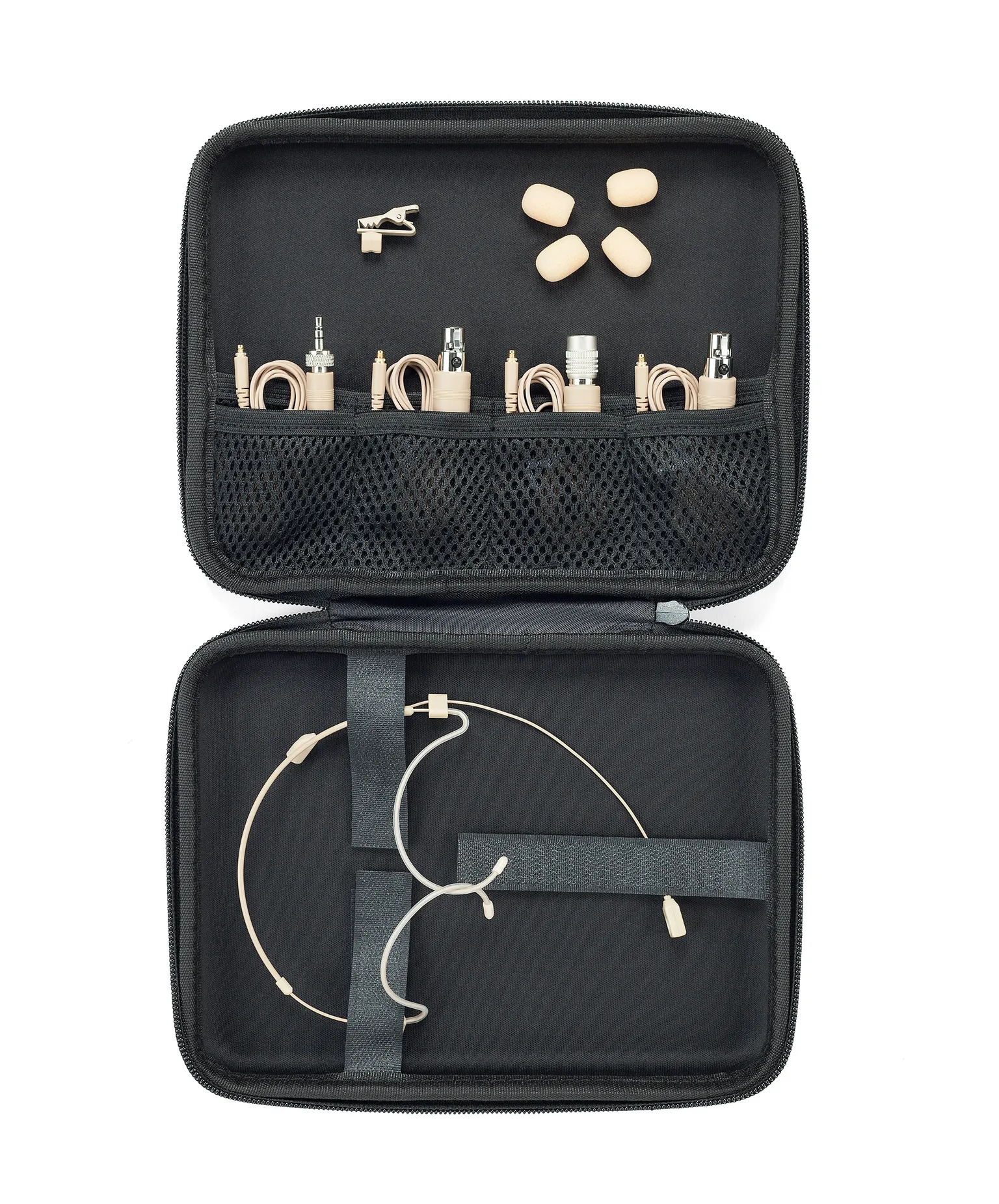

  • Four windscreens, collar clip and protective carry case included

ElementBack electret condenser

Capsule Dimension7.35mm

Polar patternCardioid (Unidirectional)

Frequency Response50Hz–18KHz

Sensitivity-45dB 1V/Pa ±3dB at1kHz

Output impedance2kΩ ±30%

SPL max135 dB

Operating voltage0.8–5V DC

Cable4x ø1.4mm*1.2m

Weight13g

Capsule Dimensions (LxDxH)5.3” x 4” x 2.7” / 135mm x 101.2mm x 68.2mm

Included Adapter Cables1/8” (3.5mm), Hirose® 4-Pin, Switchcraft® TA3F, Switchcraft® TA4F

Accessories(4) Windscreens, Clothing Collar Clip, Carry Case
