DK707

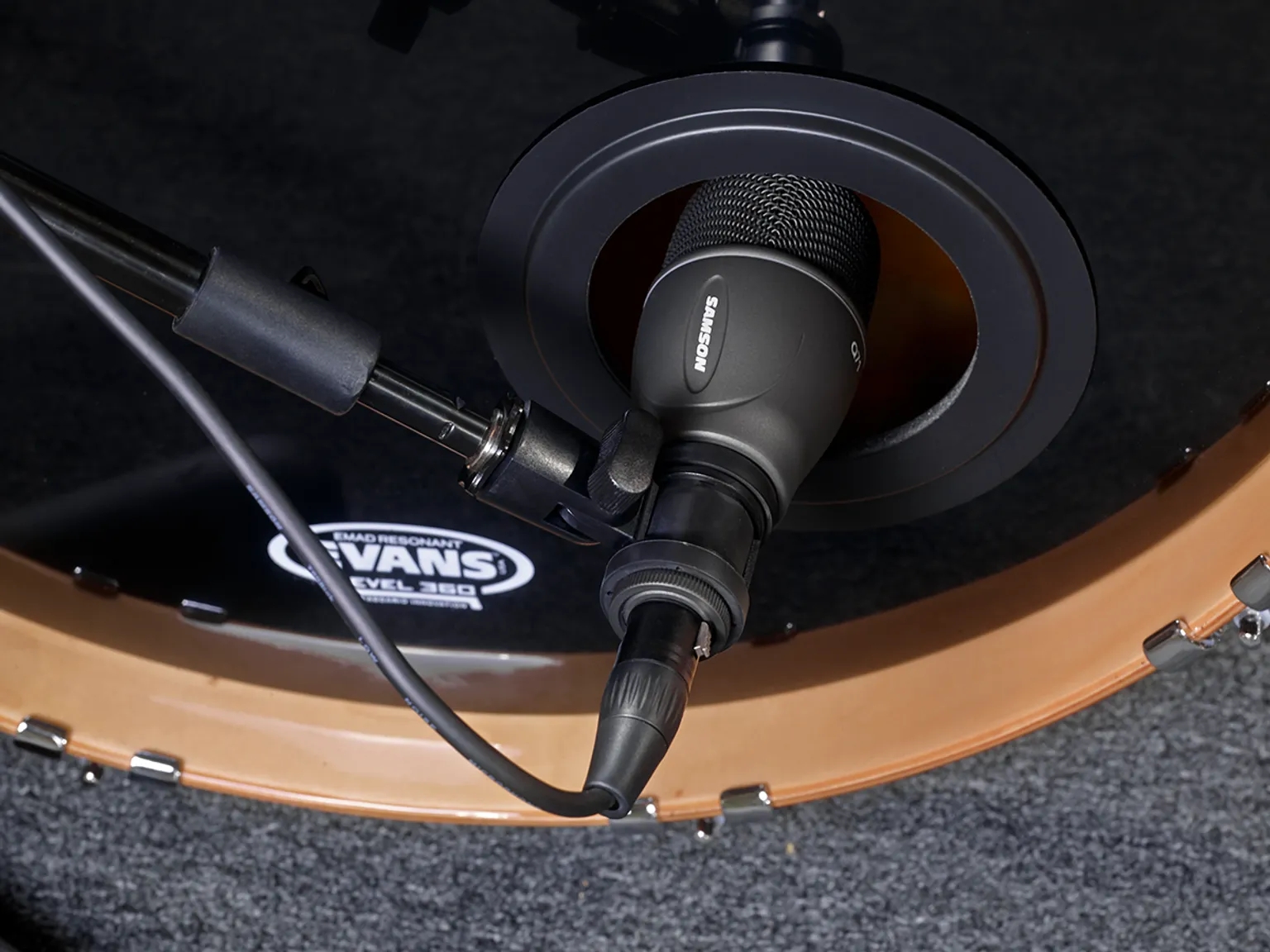

Capture the Full Essence of Your Bass Drum

The Q71 is a dynamic kick drum microphone designed to capture the low end of the bass drum. The frequency response is tailored to reproduce the full range of the instrument, including the body and punchy attack. Capable of handling high SPLs, the Q71 is optimized to capture the full essence of your bass drum, making it an excellent choice for both live performance and studio recording.

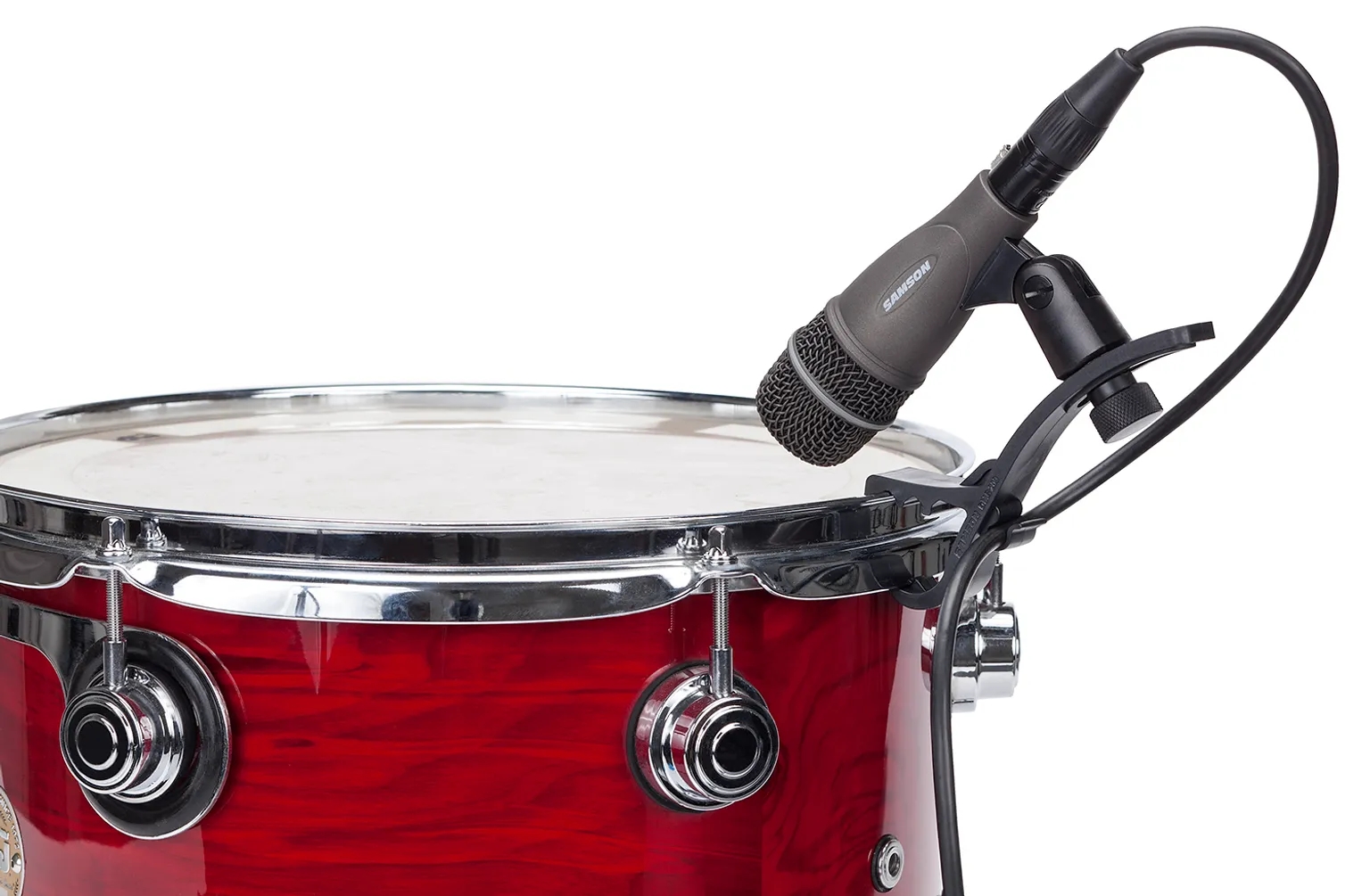

One Two Punch

The Q72 is a dynamic microphone designed for miking snare drums and tom-toms. It has a cardioid polar pattern that helps isolate each drum and eliminates off-axis noise and feedback. The Q72 has a frequency response of 50 Hz to 16 kHz, with a slight boost in the upper midrange to bring out the attack and clarity of drums. It also has a high SPL handling capability, allowing it to capture loud sound sources without distortion.

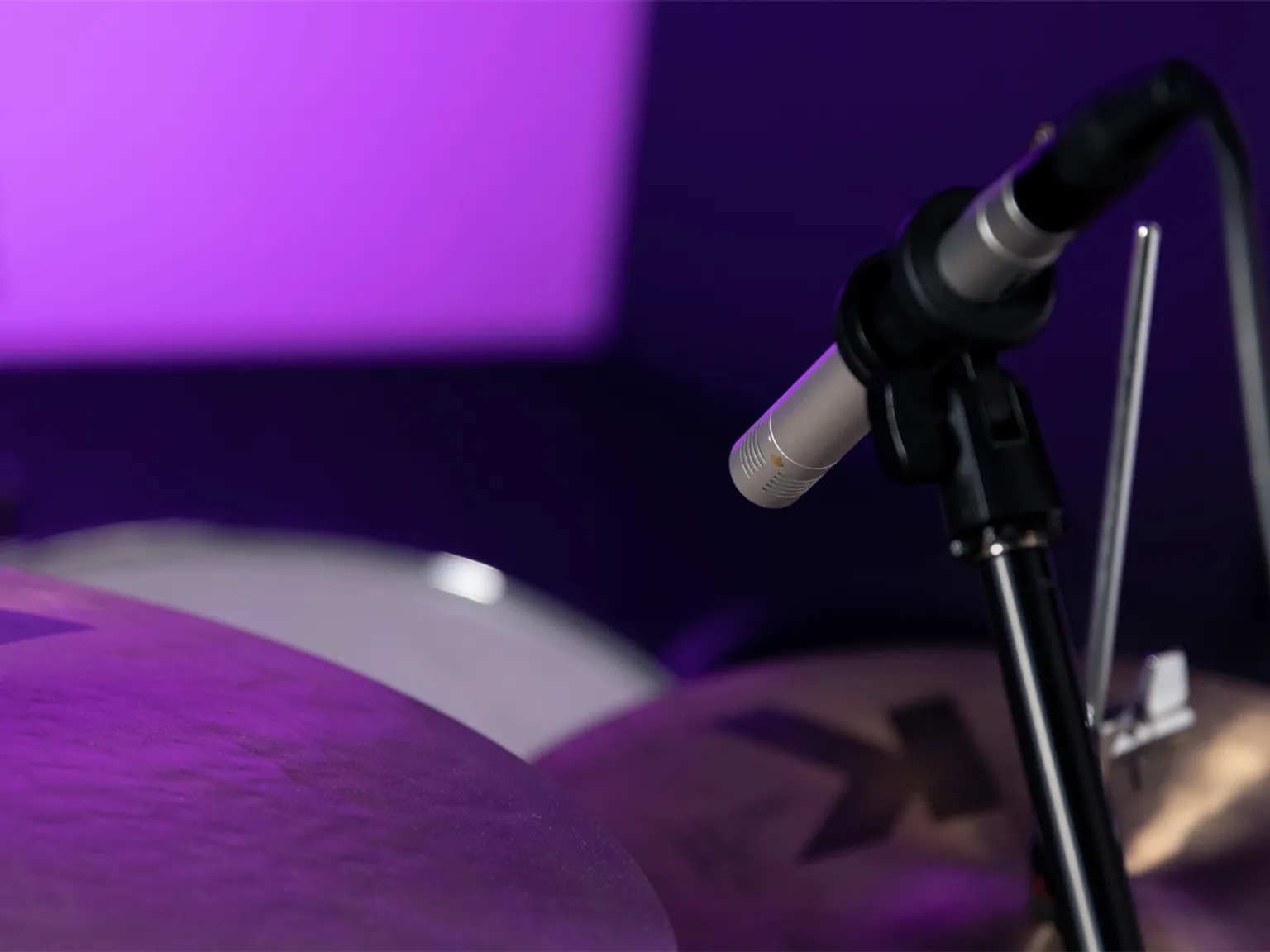

Capture the Brilliance

C02 pencil condenser microphones bring a high level of accuracy and audio performance to instrument miking applications. The matched pair is perfect for capturing the brilliance of your cymbals and the overall ambient sound of your drum kit. They can also be used to mic hi-hats, thanks to their smooth top end and ability to capture fast attack transients.

Capture Loud Sources with Confidence

With swivel-style adapters for each microphone and tensioned rim clips for the Q72s, the DK707 makes setup quick and easy. And with the touring musician in mind, a deluxe hardshell carrying case is also included.

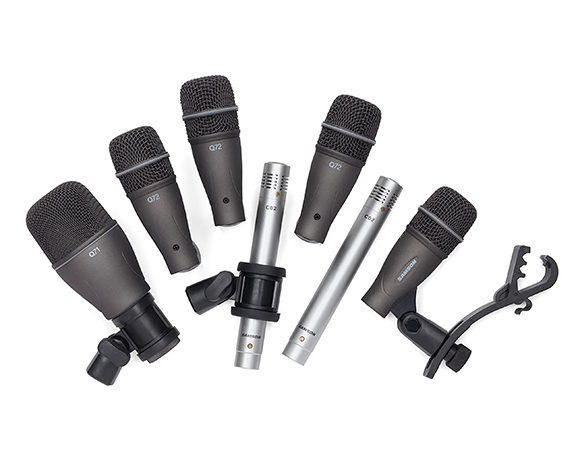

• 7-piece drum mic kit

• One Q71 Kick Drum Microphone with swivel-style mic adapter

• Four Q72 Instrument Microphone with swivel-style mic adapters and tension-mounted rim clips

• Two C02 Pencil Condenser Microphones with shock-mounted swivel-style mic adapters

• Includes hardshell carry case

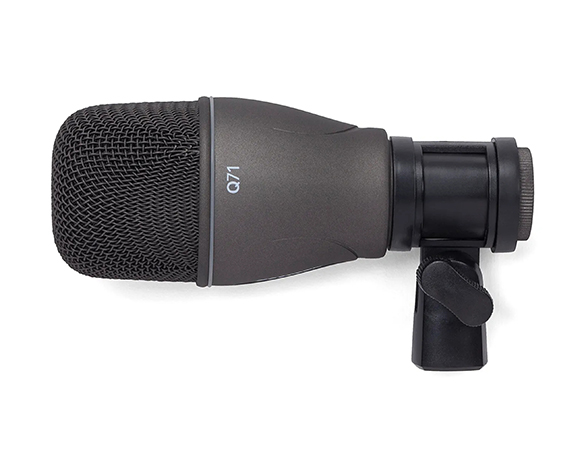

Q71 - Kick Drum Microphone

TypeDynamic Microphone

Polar PatternSuper Cardioid

Frequency Response50~16000 Hz

Sensitivity-62 dBV/pa (0.8mv/pa)

RatedImpedance 200Ω

Max. SPL147 dB (THD≤ 0.5% 1000 Hz)

Weight370g

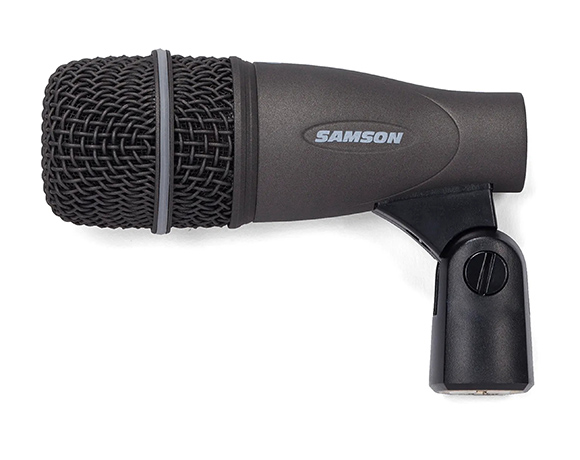

Q72 - Snare/Tom-Tom Microphone

Type Dynamic Microphone

Polar PatternSuper Cardioid

Frequency Response50~16000 Hz

Sensitivity-55 dBV/pa (0.78mv/pa)

Rated Impedance200Ω

Max. SPL133 dB (THD≤ 0.5% 1000 Hz)

Weight150g (with DMC 100)

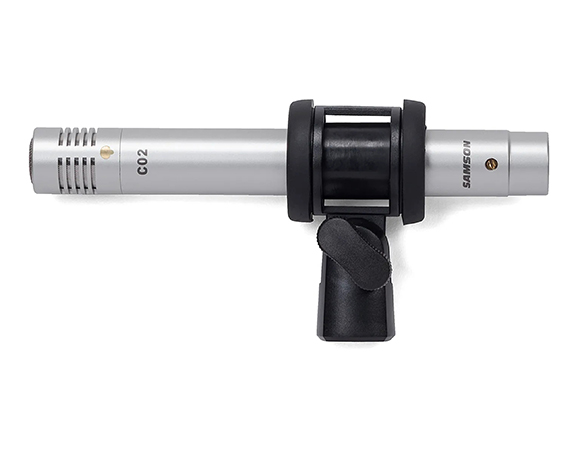

C02 - Pencil Condenser

Type Condenser

Polar PatternCardioid

Frequency Response40~20000 Hz

Sensitivity-40 dBV/pa (10mv/pa)

Rated Impedance200Ω

Equivalent Noise Level22 dB (A weighted IEC/DIN 651)

Max. SPL134 dB (THD≤ 0.5% 1000 Hz)

Dynamic Range112 dB

Current Consumption3.5 mA

Dimensionsø20 x 150 mm

Weight170g
