CL7a

-

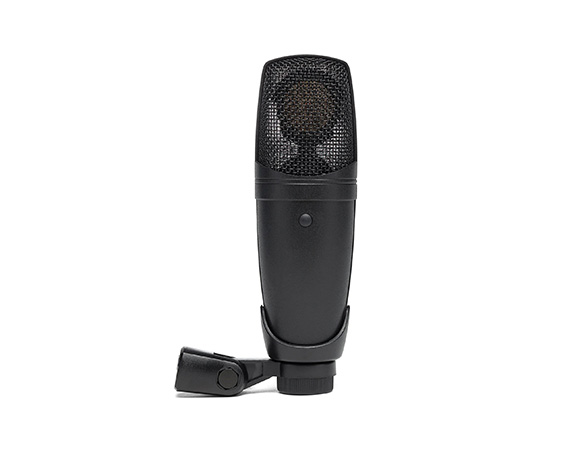

Large-Diaphragm Cardioid Condenser Microphone

left right
View Larger

Rich, Smooth Sound

The CL7a is a large-diaphragm condenser microphone designed for the studio environment. Inside the CL7a capsule is a 1.1" gold-sputtered, 3-micron thick diaphragm that delivers a beautifully rich, balanced sound. Smooth mids and slight highs rise around 15kHz to create a natural sound that provides acoustic ambience when used on instruments and "breathing room" when used on vocals.


Love in the Studio

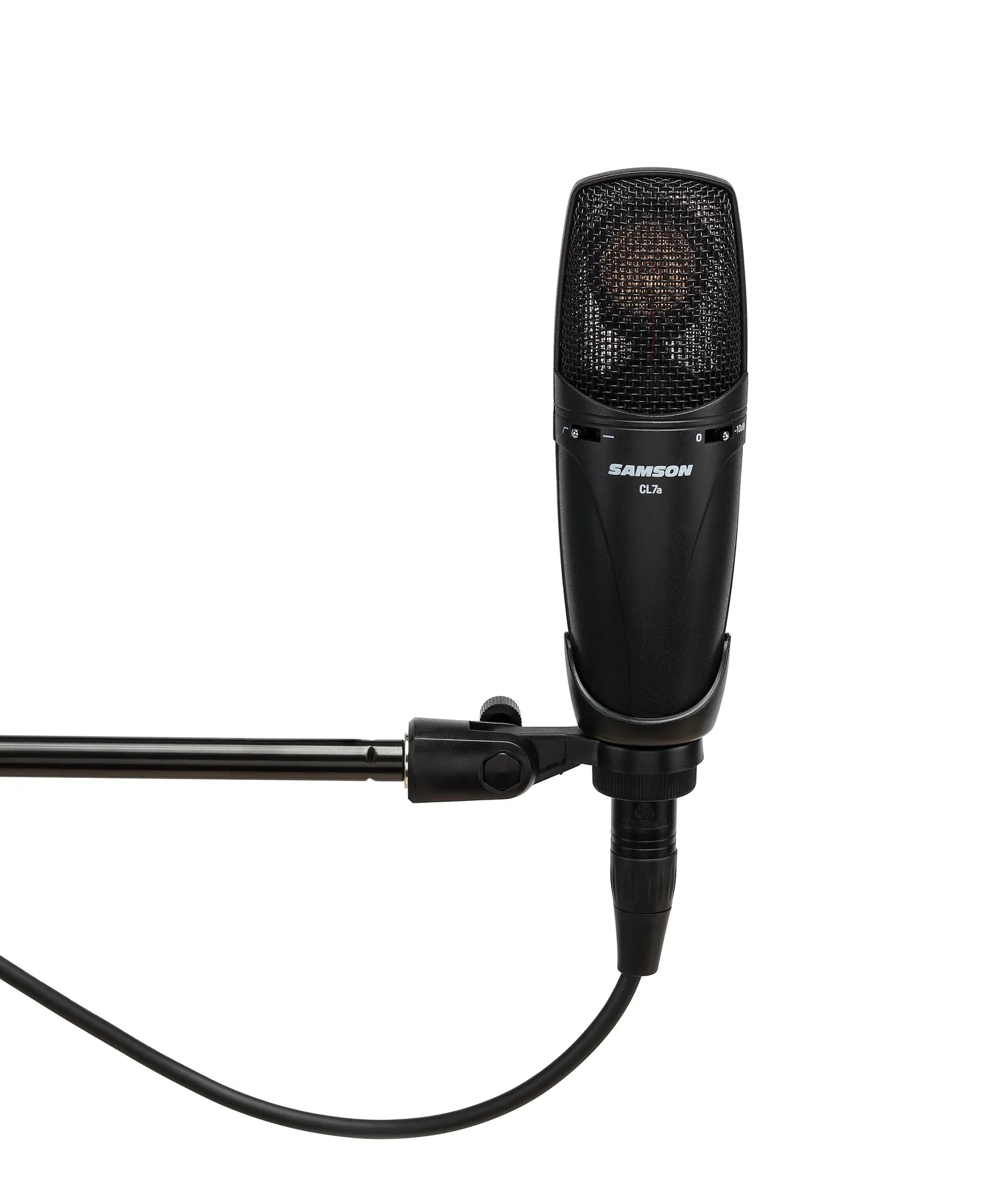

The cardioid pickup pattern enhances isolation during recording, minimizing the sound picked up from other audio sources behind the CL7a microphone. This makes the microphone ideal for both studio and live applications. A selectable bipolar high-pass filter at 100 Hz removes unwanted low-frequency content such as stage rumble or wind noise.58f197a5115c9c525daf3184ba5da669_CL7a-On-Stand-v1_tr=w-1536,f-jpeg.jpg

Capture Loud & Proud

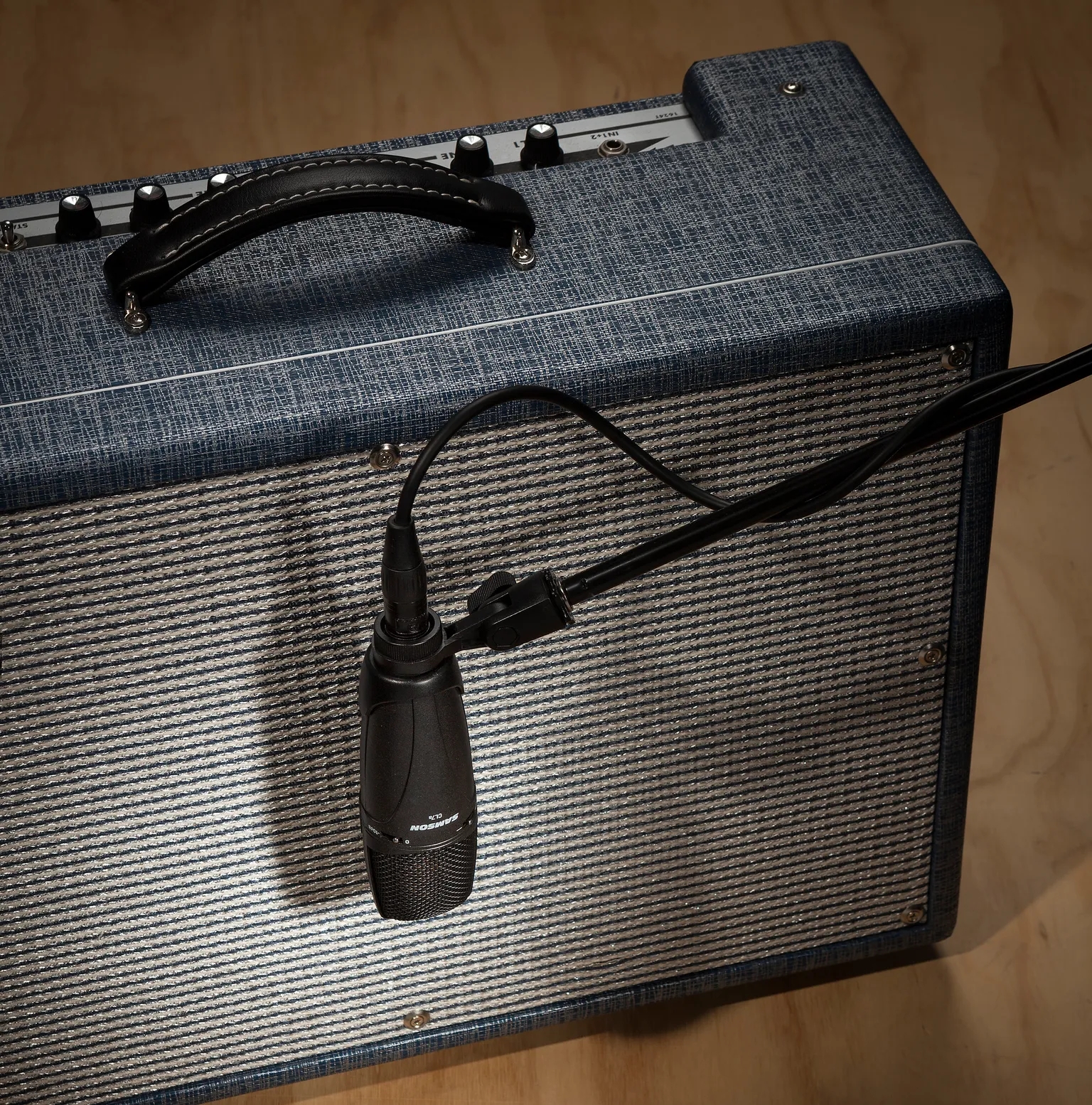

The rugged capsule and electronics can withstand high SPLs up to 147 dB, allowing you to capture powerful low-frequency content without distortion. The CL7a includes a 10 dB pad that prevents overloading of the on-board preamplifier by reducing the input sensitivity of the microphone preamplifier circuit. This is useful when miking loud sources with very high transients, such as drums, cymbals, or brass instruments.65e39d8312f3dd2a80f79a27c8bc3084_CL7a-Amp-SA904_tr=w-1536,f-jpeg.jpg

Built to Last

Inside the rugged die-cast body is an internal shock mount that provides both capsule protection and vibration isolation. The CL7a is a condenser microphone and must be powered by phantom power. The CL7a accepts phantom power from 36 to 52 volts.644afd05b102b6ce3952e046767f7ba9_CL7a-RC10-Soundroom-SA905_tr=w-1536,f-jpeg.jpg


  • Large 1.1" internally shock-mounted capsule with 3-micron gold sputtered diaphragm

  • Cardioid pick-up pattern

  • Smooth and balanced sound reproduction

  • 20 Hz to 20 kHz frequency response

  • Switchable high-pass filter, 12 dB per octave at 100 Hz

  • Switchable 10 dB pad for handling extremely high SPL

  • 36¨C52 Volt phantom power operation

  • Solid die cast construction

Element Condenser

Diaphragm Thickness3 microns

Frequency Response20 Hz ¨C 20 kHz

Polar PatternCardioid

Impedance 200 ohms balanced

Minimum Load Impedance1000 ohms

Sensitivity-40 dBV/Pa

Max SPL (Pad Off)147 dB

Signal-to-Noise77 dB

Equivalent Noise Level17 dB

Microphone Connector3-pin, gold-plated XLR

Power Supply48 VDC ¡À 3 V

AccessoriesMic swivel

Dimensionsø6.9¡± x 2.1¡± / ø174mm x 53 mm

Weight1.12lb / 0.51 kg
