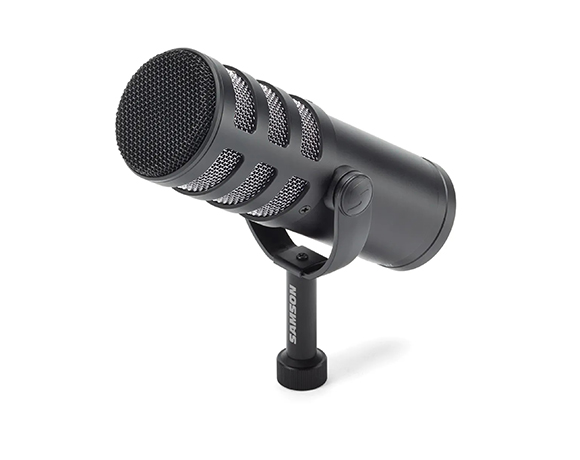

Q9x

-

Broadcast Dynamic Microphone

left right
View Larger

Built for Sound

The Q9x features a professional dynamic mic capsule that is optimized for capturing vocal performance. The cardioid pickup pattern provides excellent off-axis rejection while minimizing ambient noise, making it ideal for use in untreated home studios. An advanced humbucking coil reduces the pickup of electromagnetic (EMI) and radio-frequency interference (RFI) as well as any hum or buzz from other equipment. A mid-boost circuit switch gives extra presence to vocal frequencies when engaged.


Broadcast Power

The Q9x is housed in an aluminum body with an integrated yoke mount that allows it to be attached to a boom arm or desk stand. Inside, a shock mount isolates the capsule from mechanical noise that could be radiated through the body, while an integrated dual-layer grille and removable foam windscreen minimize annoying pops and plosives for clear, professional sounding broadcasts and recordings.

5f7f4c6b278d8f6032697fa17d358ffe_Q9x-Streaming-Setup-crop-SA1106_tr=w-1536,f-jpeg.jpg

One Mic Does It All

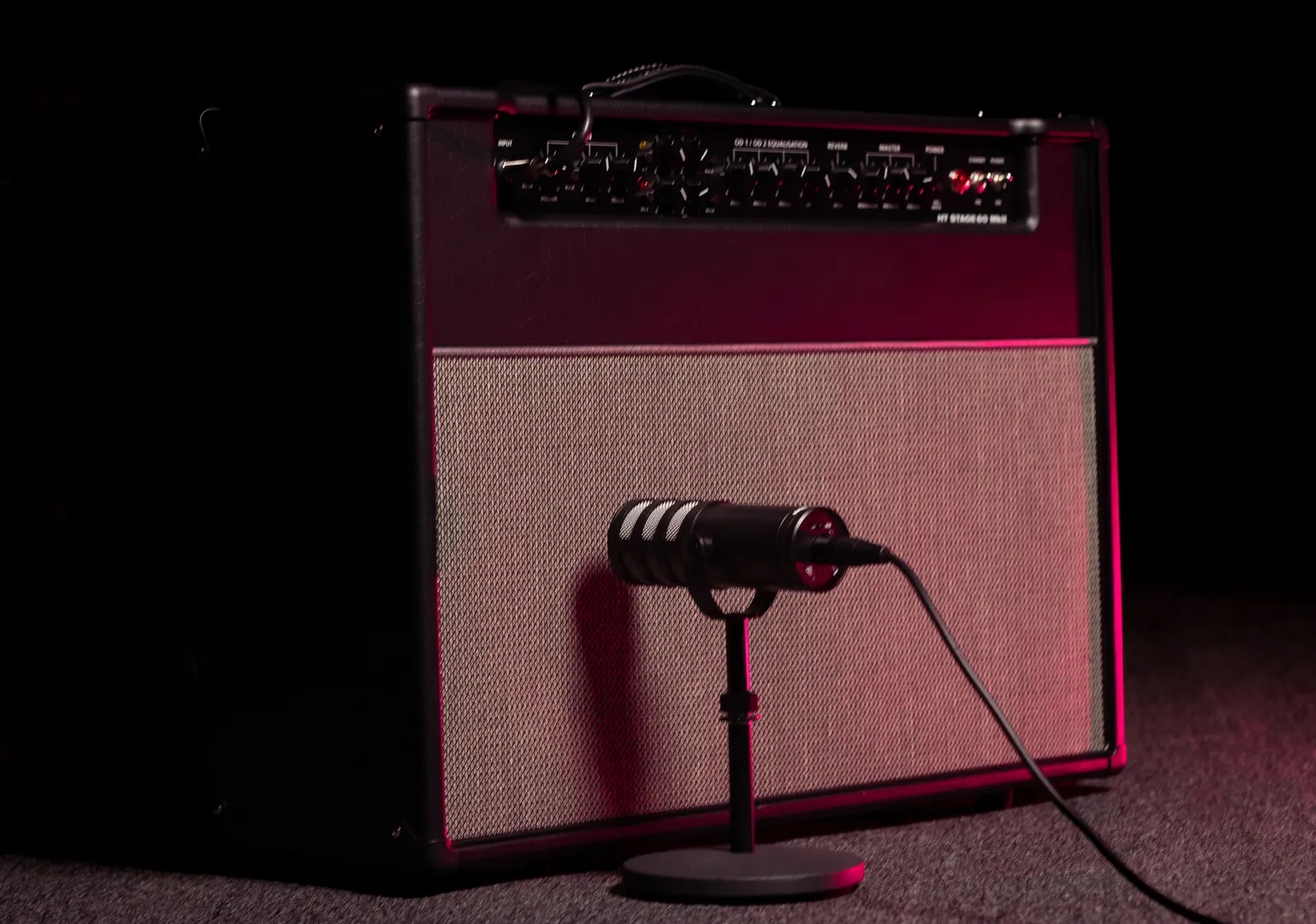

Equally suitable for a podcast studio, broadcast booth or recording rig, the microphone with its standard XLR output easily connects to almost any standard preamp, mixer or audio interface. The Q9x can handle greater than 140 dB SPL, making it the ideal tool to use for any source, from quiet acoustic guitars, to screaming vocalists, snare drums and even blaring trumpets.


  • Premium broadcast dynamic microphone

  • Ideal for podcasting, streaming, broadcasting, gaming, voice-over work and recording

  • Wide, flat frequency response designed for capturing the detail of both vocals and instruments

  • Dynamic capsule with humbucking coil and neodymium magnet

  • Cardioid polar pattern focuses capture in front of the mic, minimizing ambient pickup from behind the microphone

  • XLR Analog Output

  • Mid-presence Boost

  • Dual layer windscreen

  • Solid, die-cast construction with integrated yoke mount

Element TypeDynamic with Humbucking Coil

Polar PatternCardioid

Frequency Response60Hz¨C20kHz

Impedance270¦¸

Max Sensitivity-58 dBV/Pa @ 1kHz(1.2mV)

Max. SPL>140 dBSPL

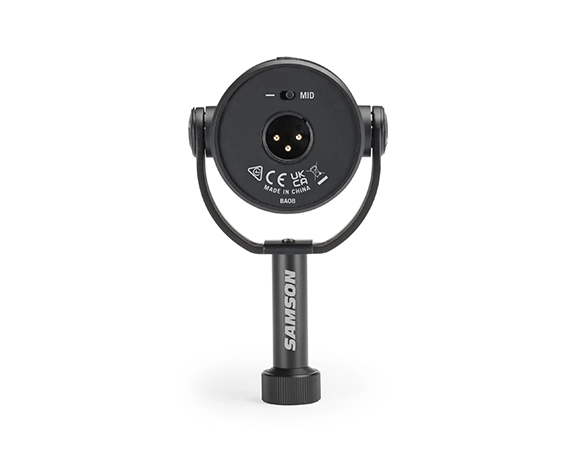

OutputMale XLR

ControlsMid presence boost switch

AccessoriesFoam windscreen

Dimensions3.12¡± diameter x 7.02¡± (L) / 79.5mm diameter x 178.5mm (L)

Weight1.7lb / 0.77kg
