Concert 99 Handheld

-

UHF Wireless System with Q8

left right
View Larger

Wireless To The Nines

The CR99 wireless receiver offers a total of 80 operating channels, allowing you to select the best frequency option for your area. Quick to set up, the CR99's Group Scan helps avoid conflicting frequencies, while its IR Sync feature allows users to wirelessly match the transmitter to the receiver's operating frequency.

fa7b6a15e1a90d3a0886cec693bc3835_Mayhem-CH99-IMG_5701-3000px-Cropped_tr=w-1536,f-jpeg.jpg

Speak Loud and Clear

The CH99 handheld transmitter features Samson's Q8 professional dynamic microphone capsule. Offering eight hours of battery life on two AA batteries (not included), the CH99 transmitter features a variable gain control and a pop-free, one-touch mute button.


Freedom to Roam the Stage

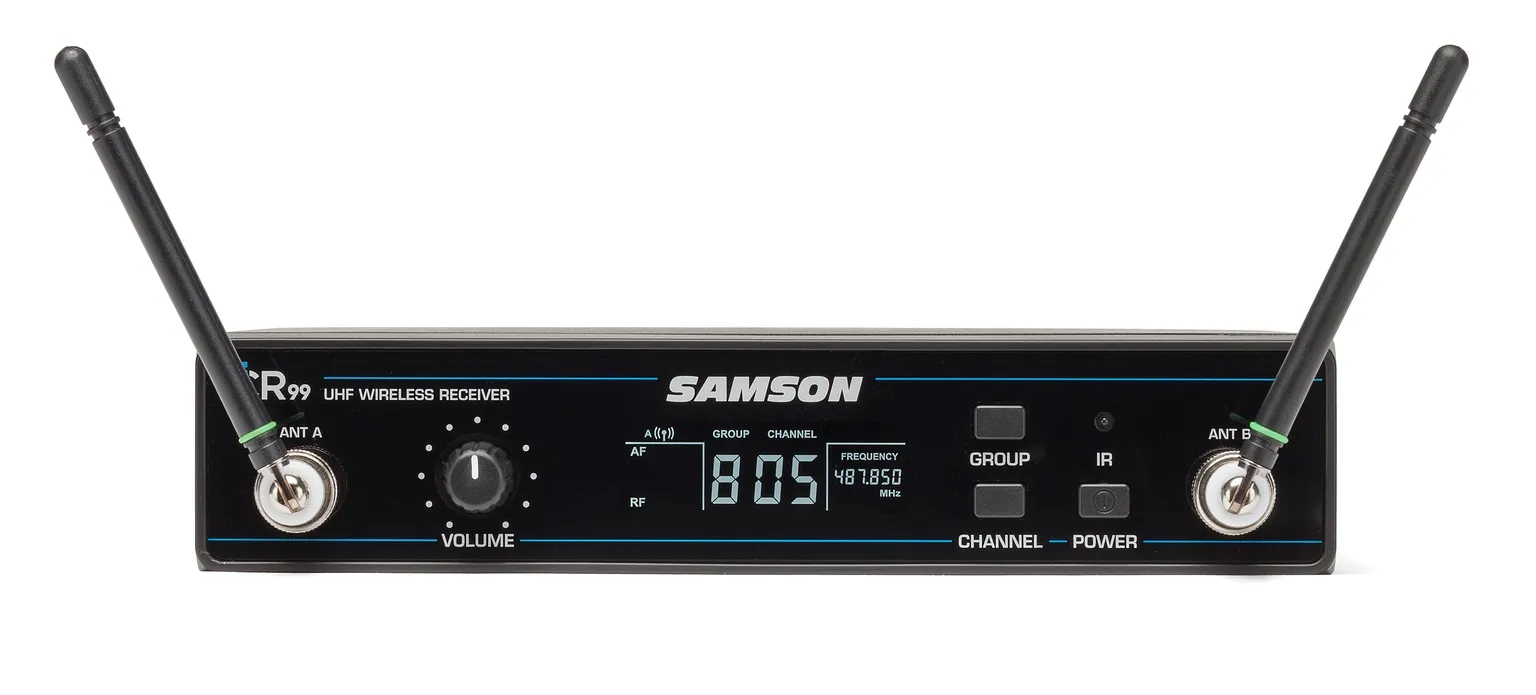

The extremely rugged, all metal, CR99 receiver features a bright, backlit LCD for monitoring on dark stages, even at long distances. The LCD also shows the exact battery life of your transmitter, along with the channel number and its corresponding UHF frequency. The receiver includes removable 1/4-wave antennas and features front and rear mounted BNC jacks.

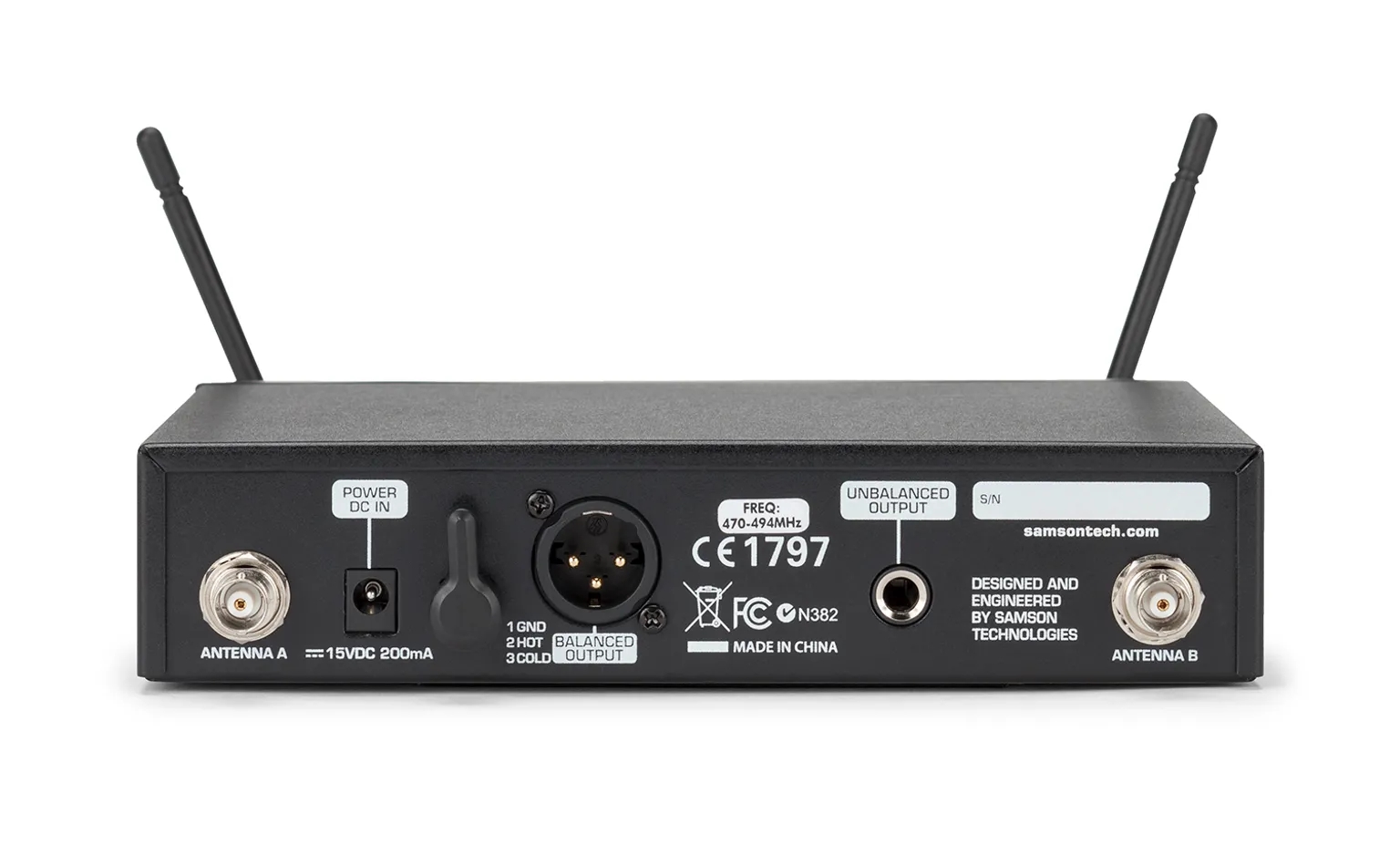

Making Connections

The rear panel provides both balanced (XLR) and unbalanced (1/4") connections to an amplifier, sound system, or recording console. The half-rack format and included rackmount kit allow single or multiple CR99 receivers to be installed in a portable audio rack or fixed location.

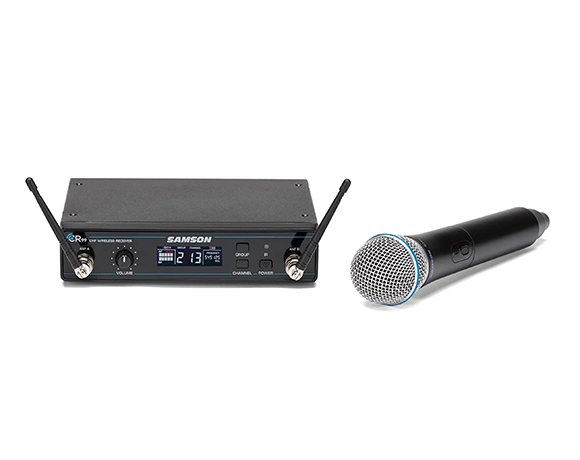

Concert 99 Handheld System

  • Frequency-agile UHF wireless system

  • 80 operating channels across 24MHz bandwidth

  • Up to eight simultaneous systems per frequency band (region dependent)

  • AC adapter and rackmount kit included


CH99 Handheld Transmitter

  • Q8 Professional Dynamic Microphone capsule

  • Offers up to eight hours of battery life using two AA batteries

  • 300' operating range (line-of-sight)

  • Variable Gain control

  • One-touch Mute


CR99 Wireless Receiver

  • Rugged all-metal, rack mountable chassis

  • Multifunctional backlit LCD (RF, audio, transmitter battery levels)

  • Group scan for easy single or multi-system setup

  • IR sync wirelessly matches receiver and transmitter frequency

  • True RF Diversity design minimizes dropouts

  • Tone key prevents unwanted noise when transmitter is off/out of range

  • Removable 1/4-wave antennas

  • Balanced XLR and 1/4" outputs



System

Working Range300' (100m) line of sight

Audio Frequency Response50 Hz - 15 kHz

T.H.D. (Overall)<1% (@AF 1 kHz, RF 46 dBu)

Dynamic Range>103 dB A-weighted

Signal to Noise>90 dB

Tone Key Frequency35kHz


CH99 Handheld Transmitter

Microphone ElementQ8 Dynamic

Input Gain Range28 dB

RF Power10 mW EIRP

Power RequirementsTwo AA (LR6) alkaline batteries

Battery Life8 hours

Dimensions10.23" x ø2.1" / 260mm x ø54mm

Weight0.48lb / 218g


CR99 Receiver

Audio Output Level - Unbalanced+14 dBu

Audio Output Level - Balanced+9 dBu

Audio Output Impedance - Unbalanced810 Ohms

Audio Output Impedance - Balanced240 Ohms

Sensitivity-100 dBm / 30 dB sinad

Image Rejection>50 dB

Operating Voltage15 VDC 200mA

Dimensions (LxWxH)7.87" x 5.9" x 1.6" / 200mm x 150mm x 42mm

Weight2.08lb / 946g
