AirLine 88x Fitness

Fitness Focus

Designed to meet the needs of yoga, Pilates, Zumba and cycling instructors, the AH8 Fitness Headset features water-resistant components to protect against sweat and the elements, including a marine-grade stainless steel gooseneck and AE50X micro-miniature microphone capsule. The capsule's cardioid pickup pattern provides excellent isolation from stray and unwanted noise for clear, intelligible speech.

Simple Setup; Flawless Performance

Simplicity and performance are at the heart of the Concert 88x wireless systems. One-touch scanning analyzes all available channels and selects the clearest channel for your performance space. An infrared signal then locks the transmitter and receiver together on the selected channel. With 100 frequencies and a wide 25 MHz bandwidth, there are plenty of channels available for your application.

True Wireless Performance

The True-diversity design minimizes dropouts to provide clear wireless reception for up to a 300' performance range. Tone-key and auto-mute circuitry ensure that only the audio signal from the AH8 transmitter reaches the receiver, automatically muting the system when the transmitter is out of range to prevent unwanted noise from entering the signal path.

The rear panel includes balanced (XLR) and unbalanced (1/4") outputs for connections to an amplifier or sound system. For classes with more than one instructor or facilities with multiple studios, up to eight systems per frequency band can be used simultaneously.

System

• High-performance professional UHF wireless system

• 100 operating channels across 25 MHz bandwidth

• 300' maximum operating range

• Rackmount kit included

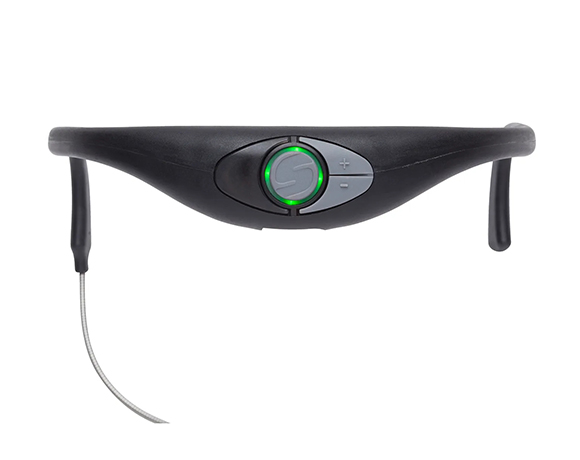

AH8 Fitness Headset Transmitter

• Integrated headset mic and transmitter (no beltpack or cable required)

• Comfortable design mold to the user’s head

• Water-resistant materials; sealed circuit board

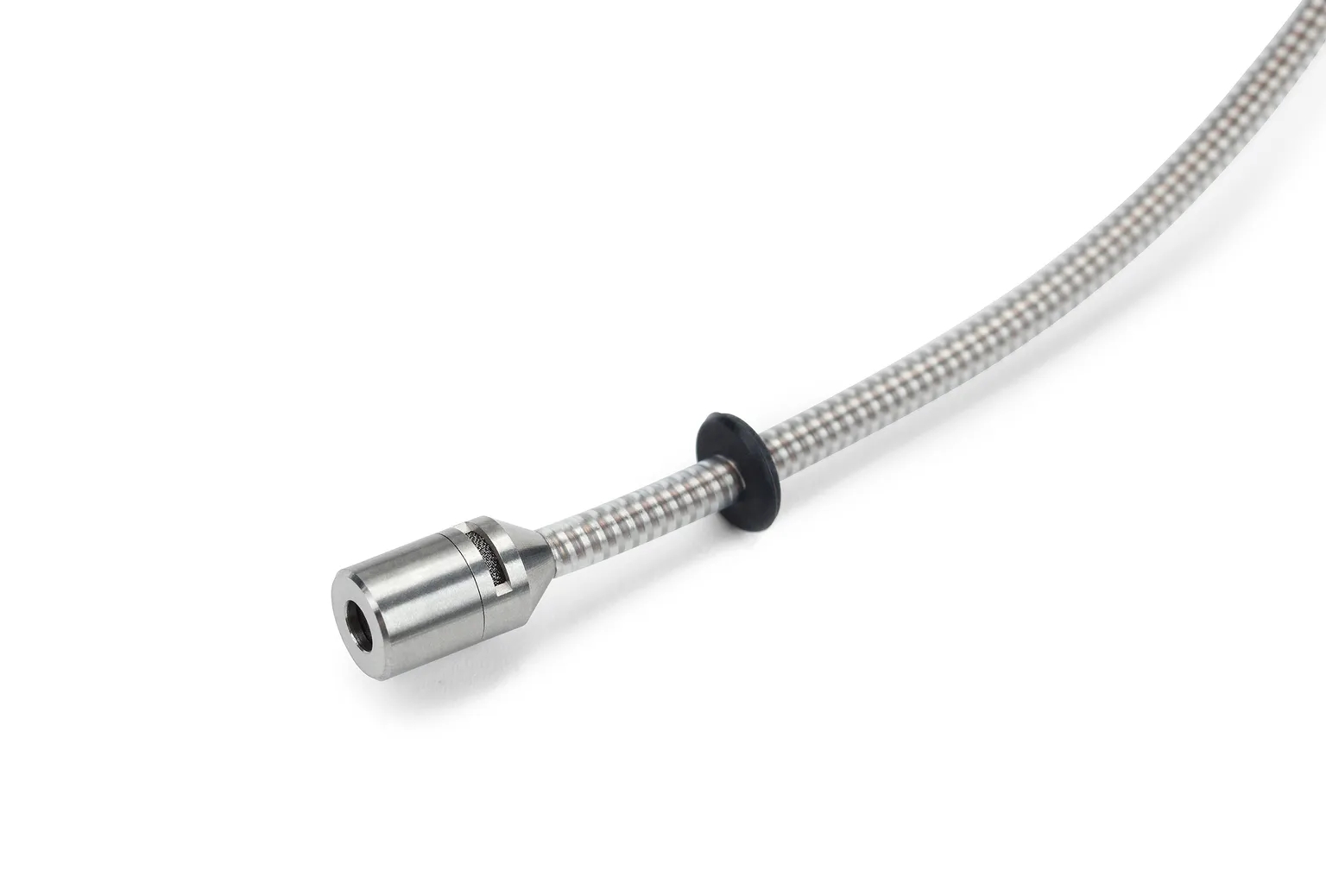

• Marine-grade stainless steel gooseneck

• Micro-miniature Samson AE50X cardioid mic capsule

• Rechargeable Lithium-ion Battery operates for up to 8 hours

• Tri-color LED indicator – Low Battery, Charging, Muted, Normal

• 300' operating range (line-of-sight)

• Variable Gain control

• Silent mute switch

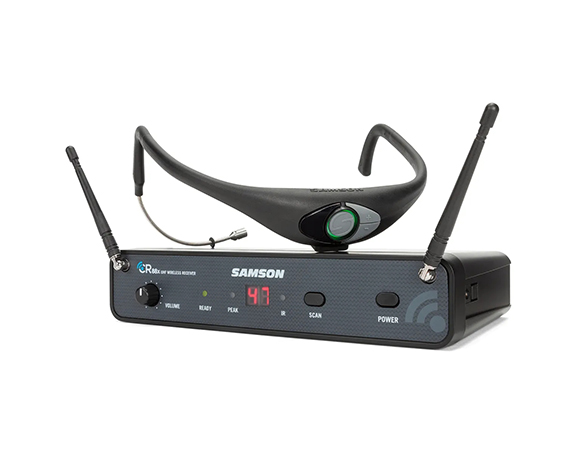

CR88x Wireless Receiver

• Bold LED display and visual indicators

• 100 available frequencies with automatic scanning/selection

• Infrared link locks the receiver and transmitter to the same channel

• True diversity design minimizes dropouts

• Tone-key and auto-mute functions eliminate background noise during dropouts

• Balanced XLR and unbalanced 1/4" outputs

System

Working Range300' (100m) line of sight

Audio Frequency Response50 Hz – 15 kHz

T.H.D. (Overall)<1% (@AF 1 kHz, RF 46 dBu)

Dynamic Range >100 dB A-weighted

Signal to Noise>95 dB

Operating Temperature–10°C (14°F) to +60°C (+140°F)

Tone Key Frequency35 kHz

AH8 Headset Microphone Transmitter

Microphone ElementCondenser Mic

Microphone Polar PatternUnidirectional

Input Gain Range  20dB

RF Power   10mW EIRP

Power Requirements   3.6V 500mAh Lithium Ion rechargeable battery

Battery Life   8 hours

Included Accessories4 foam windscreens, 1 stainless steel windscreen, rubber headband

Dimensions (LxWxH)   5.9" x 6.7" x 3.9" / 150mm x 170mm x 100mm

Weight    0.13lb / 60g

CR88x Receiver

Audio Output Level - Unbalanced+14 dBu

Audio Output Level - Balanced+9 dBu

Audio Output Impedance - Unbalanced810 Ohms

Audio Output Impedance - Balanced240 Ohms

Sensitivity-100 dBm / 30 dB sinad

Image Rejection>50 dB

Operating Voltage15 VDC 200mA

Dimensions (LxWxH)8.25" x 4.9" x 1.75" / 210mm x 125mm x 44mm

Weight0.88lb / 400g
